CR-UCM2-2CL-S0096 WATER AND CARBONATION SYSTEM

main product photo

Have a Question?

Talk to our product experts at

(510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

CR-UCM2-2CL-S0096 WATER AND CARBONATION SYSTEM

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock
Model
CR-UCM2-2CL-S0096 WATER AND CARBONATION SYSTEM
Add to Wish List
LookBook product items

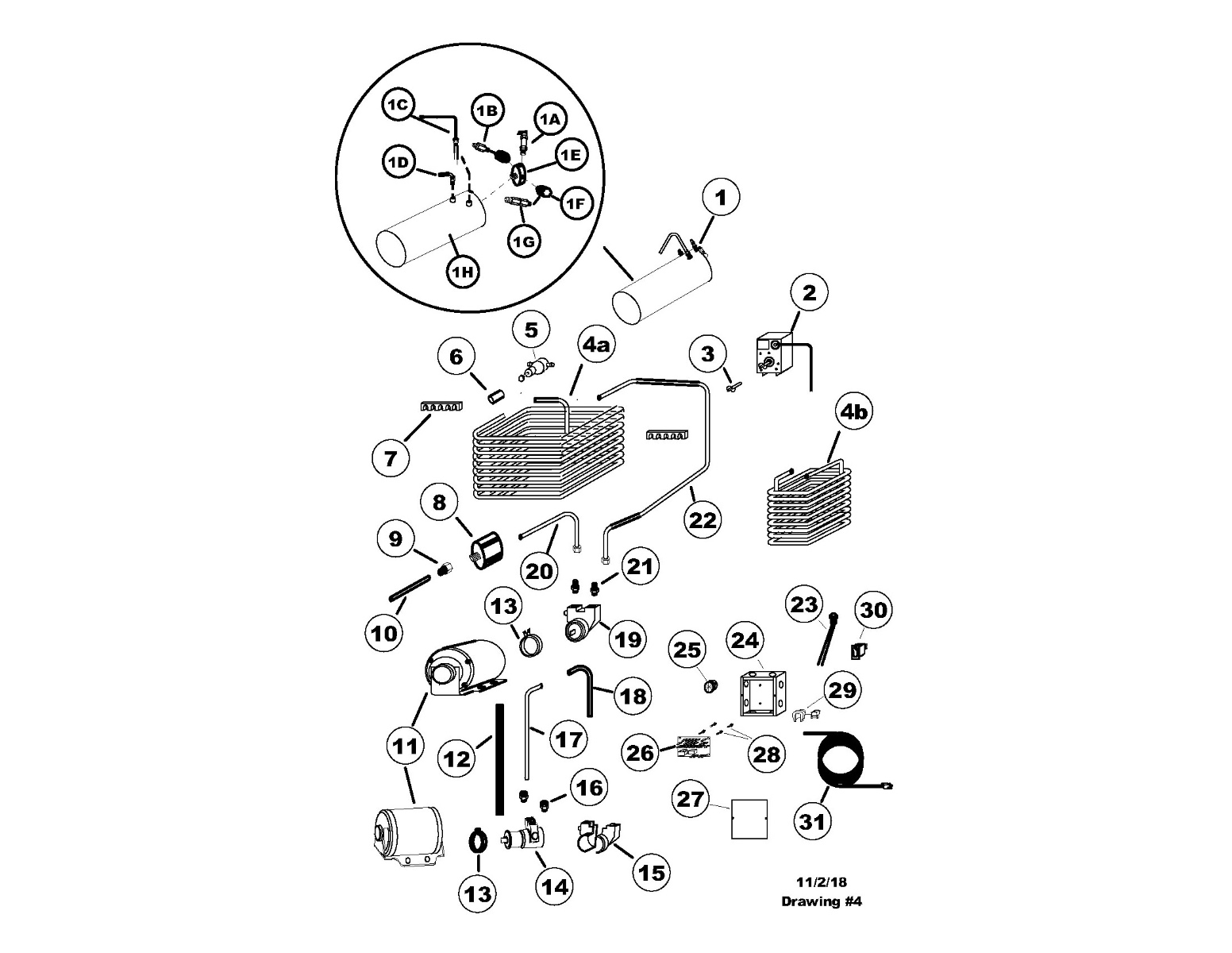

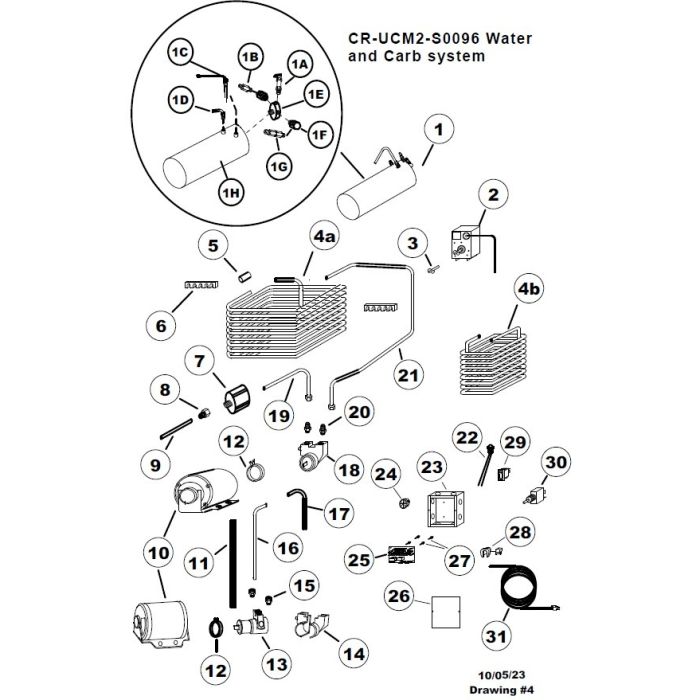

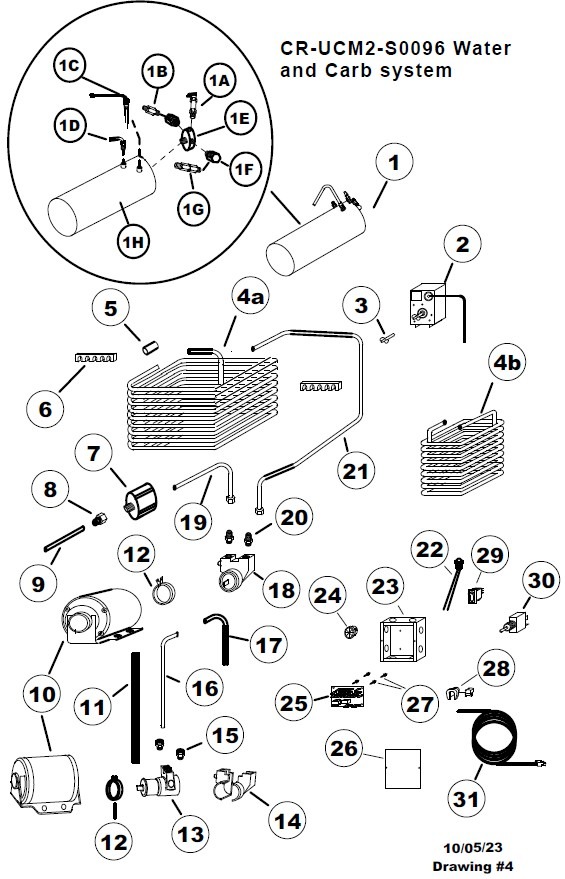

SI.# Name Part#
1 Carbonator Tank Assembly Carbonator Tank Assembly S0262-LF
1a Relief Valve, carb tank Relief Valve, carb tank S0215-R
1b Check Valve Gas, Single Check Valve Gas, Single S0022-1/4H KIT
1c Sensing Probe, carb tank Sensing Probe, carb tank S0073-48
1d Elbow 1/4 MP x 1/4 H S.S Elbow 1/4 MP x 1/4 H S.S X0129-A
1e Offset Tee Offset Tee S0029
1f Elbow 1/4 MP x 1/4 FP S.S Elbow 1/4 MP x 1/4 FP S.S S0317
1g Check Valve Water, Double, carb tank Check Valve Water, Double, carb tank S0020-1/4H KIT
1h Carbonator Tank Only, No Jetting, check valves, or probe Carbonator Tank Only, No Jetting, check valves, or probe S0062
2 Agitator motor, CR-1 & CR-2 & SW Agitator motor, CR-1 & CR-2 & SW S0835
3 Short Propeller Only for S0835 agitator Short Propeller Only for S0835 agitator S0735-S
4a Water Coil W/Yoke, Stainless Steel for CR-2 and UCM2 series built after 2019 Water Coil W/Yoke, Stainless Steel for CR-2 and UCM2 series built after 2019 S2029-S
4b Water Coil, #2 for 2CL Units Water Coil, #2 for 2CL Units S2029-#2
5 Union, Coil to Inlet 3/8" Union, Coil to Inlet 3/8" PI0412S-US
6Coil Spacer, water coil to ref coil Coil Spacer, water coil to ref coil X0083-A
7Water Pressure Reducing Valve, Preset 50# Water Pressure Reducing Valve, Preset 50# S0209-50-SF
8Connector for WPRV, 1/2" fpt to 3/8" tube Connector for WPRV, 1/2" fpt to 3/8" tube PI451214CS JG
9Water Line, SS, Bulkhead Inlet to WPRV. UCM2 Water Line, SS, Bulkhead Inlet to WPRV. UCM2 S2040-UCM2
10Motor for pump Motor for pump S0096
11Insulation, 3/8 ID x 5/8 OD Insulation, 3/8 ID x 5/8 OD Z0069
12Clamp Clamp S0106
13Re-circ Pump, 50 GPH Re-circ Pump, 50 GPH S0500-BP
14Insulation Shell Insulation Shell S0665
15Connectoe 3/8 OD x 3/8 NPT Connectoe 3/8 OD x 3/8 NPT 490036-W
16Re-circ Line Bulkhead to Pump Re-circ Line Bulkhead to Pump S0626-UCM2
17Re-circ Line Bath to Bulkhead Re-circ Line Bath to Bulkhead S0627-UCM2
18Carbonator Pump Carbonator Pump S0600
19Water Line, SS, WPRV to Pump, CR-1 and UCM1 Water Line, SS, WPRV to Pump, CR-1 and UCM1 S0667-1
20Union 3/8 MP x 3/8 MF, Brass Union 3/8 MP x 3/8 MF, Brass S0170
21Water Line, Pump to Coil Water Line, Pump to Coil S2040
22Led, Timer Indicator Led, Timer Indicator S0068-U-LED
23Control Box Control Box S1308
24Bushing Bushing S0046
25Liquid Level Control Board, S0068-U Liquid Level Control Board, S0068-U S0068-U
26Cover, Control Box Cover, Control Box S1310
27Spacer for Liquid Level Control Board. (Comes with replacement LLCB S0068-U) Spacer for Liquid Level Control Board. (Comes with replacement LLCB S0068-U) S1335
28Strain Relief Strain Relief E0664
29Switch, Unit ON/OFF Switch, Unit ON/OFF S0783
318ft POWER CORD ASSEMBLY for CR-UCM2-2CL-S0096, 125V, 1PH, 30A, NEMA L5-30 8ft POWER CORD ASSEMBLY for CR-UCM2-2CL-S0096, 125V, 1PH, 30A, NEMA L5-30 CR-L5-30P-8FT
SI.# 1
Carbonator Tank Assembly
NameCarbonator Tank Assembly S0262-LF
SI.# 1a
Relief Valve, carb tank
NameRelief Valve, carb tank S0215-R
SI.# 1b
Check Valve Gas, Single
NameCheck Valve Gas, Single S0022-1/4H KIT
SI.# 1c
Sensing Probe, carb tank
NameSensing Probe, carb tank S0073-48
SI.# 1d
Elbow 1/4 MP x 1/4 H S.S
NameElbow 1/4 MP x 1/4 H S.S X0129-A
SI.# 1e
Offset Tee
NameOffset Tee S0029
SI.# 1f
Elbow 1/4 MP x 1/4 FP S.S
NameElbow 1/4 MP x 1/4 FP S.S S0317
SI.# 1g
Check Valve Water, Double, carb tank
NameCheck Valve Water, Double, carb tank S0020-1/4H KIT
SI.# 1h
Carbonator Tank Only, No Jetting, check valves, or probe
NameCarbonator Tank Only, No Jetting, check valves, or probe S0062
SI.# 2
Agitator motor, CR-1 & CR-2 & SW
NameAgitator motor, CR-1 & CR-2 & SW S0835
SI.# 3
Short Propeller Only for S0835 agitator
NameShort Propeller Only for S0835 agitator S0735-S
SI.# 4a
Water Coil W/Yoke, Stainless Steel for CR-2 and UCM2 series built after 2019
NameWater Coil W/Yoke, Stainless Steel for CR-2 and UCM2 series built after 2019 S2029-S
SI.# 4b
Water Coil, #2 for 2CL Units
NameWater Coil, #2 for 2CL Units S2029-#2
SI.# 5
Union, Coil to Inlet 3/8"
NameUnion, Coil to Inlet 3/8" PI0412S-US
SI.# 6
Coil Spacer, water coil to ref coil
NameCoil Spacer, water coil to ref coil X0083-A
SI.# 7
Water Pressure Reducing Valve, Preset 50#
NameWater Pressure Reducing Valve, Preset 50# S0209-50-SF
SI.# 8
Connector for WPRV, 1/2" fpt to 3/8" tube
NameConnector for WPRV, 1/2" fpt to 3/8" tube PI451214CS JG
SI.# 9
Water Line, SS, Bulkhead Inlet to WPRV. UCM2
NameWater Line, SS, Bulkhead Inlet to WPRV. UCM2 S2040-UCM2
SI.# 10
Motor for pump
NameMotor for pump S0096
SI.# 11
Insulation, 3/8 ID x 5/8 OD
NameInsulation, 3/8 ID x 5/8 OD Z0069
SI.# 12
Clamp
NameClamp S0106
SI.# 13
Re-circ Pump, 50 GPH
NameRe-circ Pump, 50 GPH S0500-BP
SI.# 14
Insulation Shell
NameInsulation Shell S0665
SI.# 15
Connectoe 3/8 OD x 3/8 NPT
NameConnectoe 3/8 OD x 3/8 NPT 490036-W
SI.# 16
Re-circ Line Bulkhead to Pump
NameRe-circ Line Bulkhead to Pump S0626-UCM2
SI.# 17
Re-circ Line Bath to Bulkhead
NameRe-circ Line Bath to Bulkhead S0627-UCM2
SI.# 18
Carbonator Pump
NameCarbonator Pump S0600
SI.# 19
Water Line, SS, WPRV to Pump, CR-1 and UCM1
NameWater Line, SS, WPRV to Pump, CR-1 and UCM1 S0667-1
SI.# 20
Union 3/8 MP x 3/8 MF, Brass
NameUnion 3/8 MP x 3/8 MF, Brass S0170
SI.# 21
Water Line, Pump to Coil
NameWater Line, Pump to Coil S2040
SI.# 22
Led, Timer Indicator
NameLed, Timer Indicator S0068-U-LED
SI.# 23
Control Box
NameControl Box S1308
SI.# 24
Bushing
NameBushing S0046
SI.# 25
Liquid Level Control Board, S0068-U
NameLiquid Level Control Board, S0068-U S0068-U
SI.# 26
Cover, Control Box
NameCover, Control Box S1310
SI.# 27
Spacer for Liquid Level Control Board. (Comes with replacement LLCB S0068-U)
NameSpacer for Liquid Level Control Board. (Comes with replacement LLCB S0068-U) S1335
SI.# 28
Strain Relief
NameStrain Relief E0664
SI.# 29
Switch, Unit ON/OFF
NameSwitch, Unit ON/OFF S0783
SI.# 31
8ft POWER CORD ASSEMBLY for CR-UCM2-2CL-S0096, 125V, 1PH, 30A, NEMA L5-30
Name8ft POWER CORD ASSEMBLY for CR-UCM2-2CL-S0096, 125V, 1PH, 30A, NEMA L5-30 CR-L5-30P-8FT
More Information
SKUCR-UCM2-2CL-S0096 WATER AND CARBONATION SYSTEM
