RNS0244 Panels
RNS0244 Panels
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
RNS0244 Panels

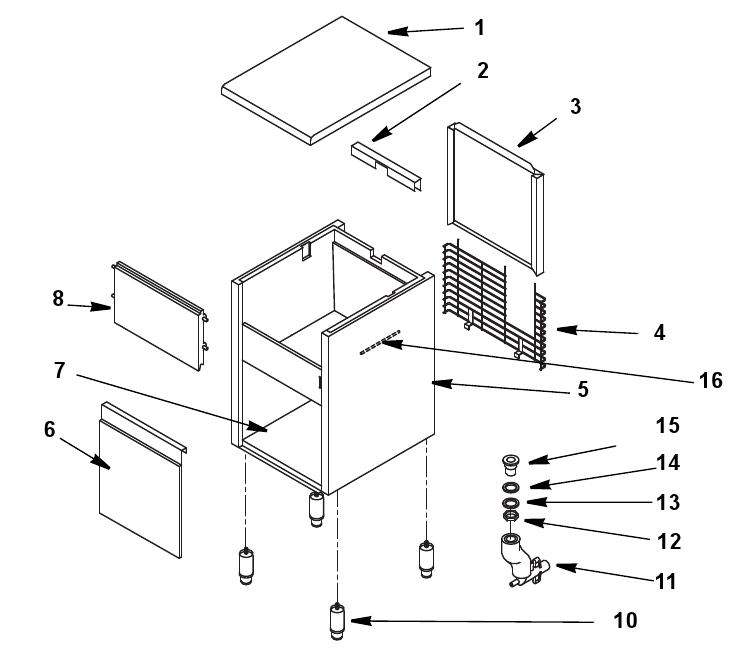

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 5741 |
| 2a | | 8948 |
| 2b | | 12042 |
| 3 | | 5665 |
| 4 | | 5700 |
| 5a | | 8965 |
| 5b | | 8955 |
| 5c | | 8966 |
| 5d | | 8956 |
| 6 | | 15458 |
| 7 | | 5601 |
| 8 | | 5659 |
| 9 | | 5783 |
| 10 | | 5663 |
| 11a | | 6162 |
| 11b | | 5671 |
| 12 | | 5581 |
| 13 | | 5695 |
| 14 | | 5696 |
| 15 | | 5692 |
| 16 | | 6075 |
| 17 | | 8684 |
SI.# 1
Name Top Panel 5741
SI.# 2a
Name Ice Spout Cover Bracket 8948
SI.# 2b
Name Ice Spout Cover Bracket 12042
SI.# 3
Name Back Panel Assembly 5665
SI.# 4
Name Back Grill 5700
SI.# 5a
Name Foamed Cabinet Assembly - 115V/60 Hz/1 Ph 8965
SI.# 5b
Name Foamed Cabinet Assembly - 220V/60 Hz/1 Ph or 230V/50 Hz/1 Ph 8955
SI.# 5c
Name Foamed Cabinet Assembly - 115V/60 Hz/1Ph 8966
SI.# 5d
Name Foamed Cabinet Assembly - 230V/50-60 Hz/1 Ph 8956
SI.# 6
Name Front Grill Panel 15458
SI.# 7
Name Base Plate 5601
SI.# 8
Name Door Assembly 5659
SI.# 9
Name Plastic Legs 5783
SI.# 10
Name Adjustable Stainless Steel Legs 5663
SI.# 11a
Name Drain Manifold - 115V/60 Hz/1 Ph 6162
SI.# 11b
Name Drain Manifold - 208-230V/50-60 Hz/1 Ph 5671
SI.# 12
Name Drain Nut 5581
SI.# 13
Name Gasket - Bottom 5695
SI.# 14
Name Gasket - Top 5696
SI.# 15
Name Drain Fitting 5692
SI.# 16
Name Bin Bulb Holder 6075
SI.# 17
Name Cartoning 8684
