CVD1486 CONTROL BOX
CVD1486 CONTROL BOX
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
CVD1486 CONTROL BOX

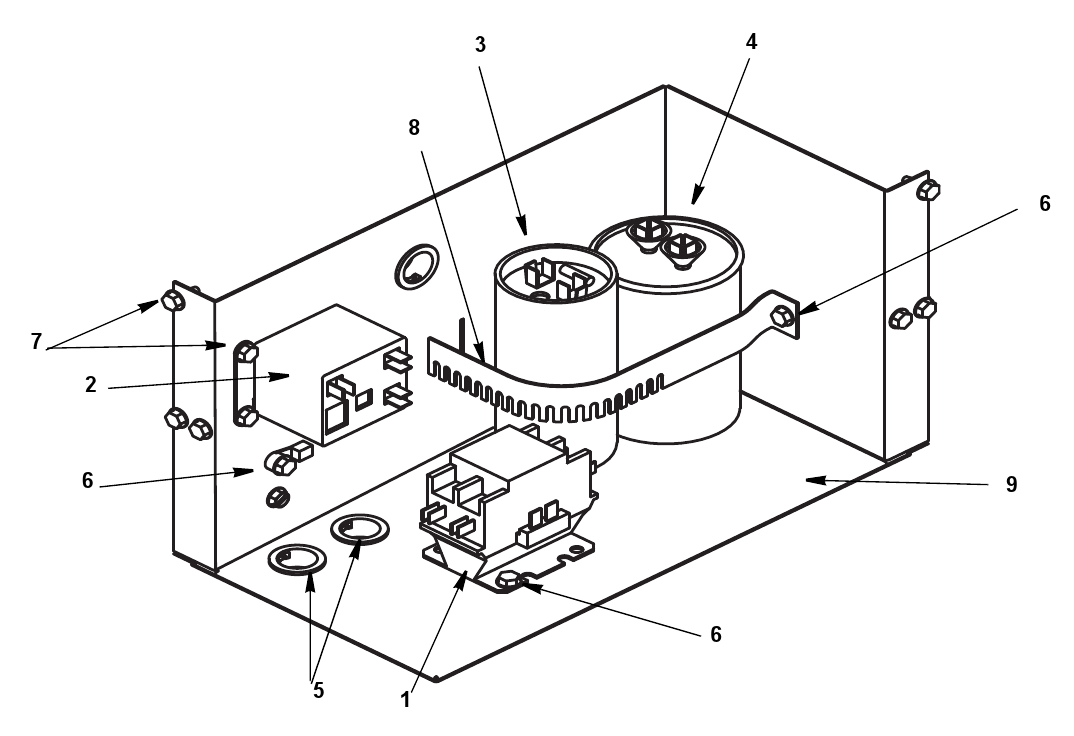

| SI.# | Name | Part# |
|---|---|---|
| 1a |  | 2006609 |
| 1b |  | 2006619 |
| 2 |  | 2007559 |
| 3 |  | 000006454 |
| 4 |  | 2010133 |
| 5 |  Bushing - 0.875" | 2501409 |
| 6 |  | 5202169 |
| 7 |  | 5202069 |
| 8 |  | 6021601 |
| 9 | | 7601653 |
| 10a | | 2000559 |
| 10b | | 2000563 |
SI.# 1a
NameContactor - 230V/60 Hz/1 Ph 2006609
SI.# 1b
NameContactor - 230V/60 Hz/3 Ph 2006619
SI.# 2
NameStart Potential Relay - 50-60 Hz/1 Ph 2007559
SI.# 3
NameStart Capacitor - 50-60 Hz/1 Ph 000006454
SI.# 4
NameRun Capacitor 2010133
SI.# 5
NameBushing - 0.875" 2501409
SI.# 6
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 7
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 8
NameCapacitor Mounting Strap 6021601
SI.# 9
NameControl Box CVD1476 Condensing Unit - Control Box Components 7601653
SI.# 10a
NameWiring Harness 208-230V/60Hz/1Ph 2000559
SI.# 10b
NameWiring Harness 208-230V/60Hz/3Ph 2000563
| SKU | CVD1486 CONTROL BOX |
|---|
