I0322 Evaporator Components

main product photo

Have a Question?

Talk to our product experts at

(510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

I0322 Evaporator Components

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock
Model
I0322 Evaporator Components
Add to Wish List
LookBook product items

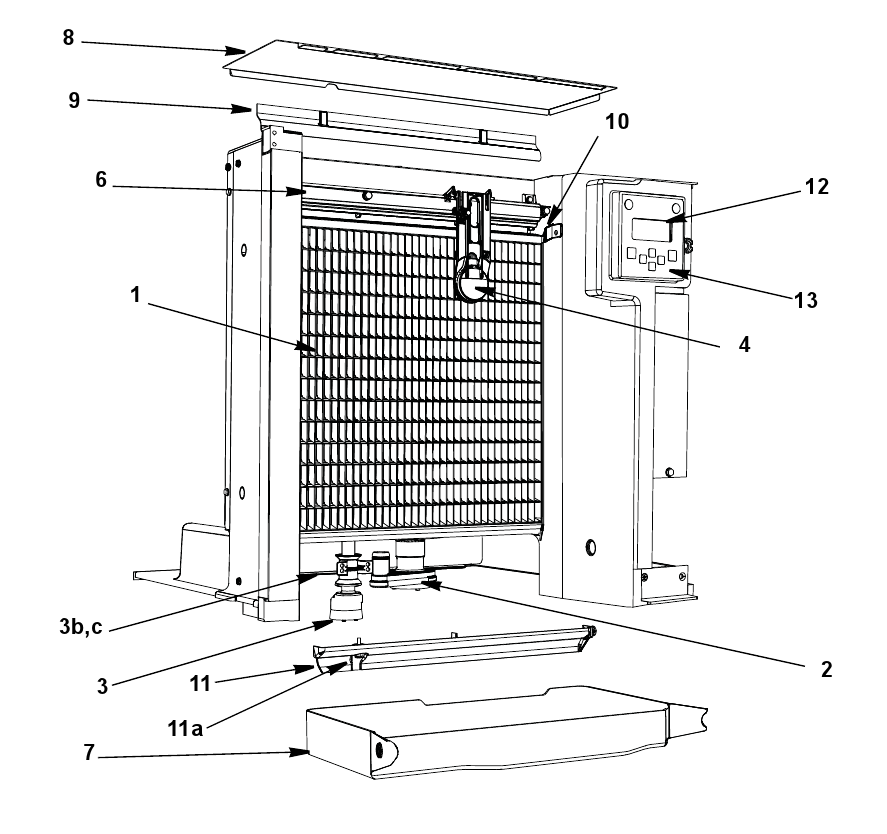

SI.# Name Part#
1a Evaporator - Dice Cube Evaporator - Dice Cube 7602879
1b Evaporator - Half Dice Cube Evaporator - Half Dice Cube 7602889
2a Water Pump - 115V/60 Hz Water Pump - 115V/60 Hz 2008929-ORA
3 Water Level Probe, Includes Probe and wire Water Level Probe, Includes Probe and wire 000016053
3b Water Level Probe - Holder Water Level Probe - Holder 000007053
4 Ice Thickness Control Probe Ice Thickness Control Probe 000008660
5 Water Curtain Water Curtain 4011189
6 Water Distribution Tube - 22" Water Distribution Tube - 22" 7602789
6aO-Rings - 0.675" O-Rings - 0.675" 5004649
7aWater Trough - without Tabs, 22" models Before July 2013 Water Trough - without Tabs, 22" models Before July 2013 4009149
7bWater Trough - with Tabs - 22" models After July 2013 Water Trough - with Tabs - 22" models After July 2013 000010336
8Foodzone Seal Panel 22" Foodzone Seal Panel 22" 000009188
9Evaporator Top Filler Panel 22" W NXT Evaporator Top Filler Panel 22" W NXT 6065389
9aBracket - Top Filler Panel Bracket - Top Filler Panel 6063339
9bScrew - #10-24 x 0.5" PHIL Screw - #10-24 x 0.5" PHIL 5202099
10Evaporator Top Frame Assembly - 22" Evaporator Top Frame Assembly - 22" 7602799
10aEvaporator Bottom Frame Assembly Evaporator Bottom Frame Assembly 4010463
10bHex Nut - #8-32 Brass Hex Nut - #8-32 Brass 5429139
11Water Diverter - 22" Models Water Diverter - 22" Models 7602779
11aThumbscrew SS - #8-32 x 0.44" Thumbscrew SS - #8-32 x 0.44" 5305123
12LCD Display LCD Display 000007827
12aLCD Display with Touch Pad & Housing Assembly LCD Display with Touch Pad & Housing Assembly 000007520
13Touch Pad with Housing Touch Pad with Housing 000008064
14LCD Wiring Harness - 30" Long LCD Wiring Harness - 30" Long 000007737
15Mounting Bracket, touch screen Mounting Bracket, touch screen 000006697
16aFront Panel LCD Frame with Key Guard Front Panel LCD Frame with Key Guard 000007046
16bFront Panel LCD Frame without Key Guard Front Panel LCD Frame without Key Guard 000007047
17Thumbscrew SS - #8-32 x 0.375" Thumbscrew SS - #8-32 x 0.375" 5004799
17aO-Ring - 0.125" ID O-Ring - 0.125" ID 5004629
18Screw - #12-16 x 0.687" Screw - #12-16 x 0.687" 5004619
19Water Pump Base O-Ring - 4.00" ID Water Pump Base O-Ring - 4.00" ID 5004659
20Water Pump Outlet O-Ring - 0.875" ID Water Pump Outlet O-Ring - 0.875" ID 5004679
SI.# 1a
Evaporator - Dice Cube
NameEvaporator - Dice Cube 7602879
SI.# 1b
Evaporator - Half Dice Cube
NameEvaporator - Half Dice Cube 7602889
SI.# 2a
Water Pump - 115V/60 Hz
NameWater Pump - 115V/60 Hz 2008929-ORA
SI.# 3
Water Level Probe, Includes Probe and wire
NameWater Level Probe, Includes Probe and wire 000016053
SI.# 3b
Water Level Probe - Holder
NameWater Level Probe - Holder 000007053
SI.# 4
Ice Thickness Control Probe
NameIce Thickness Control Probe 000008660
SI.# 5
Water Curtain
NameWater Curtain 4011189
SI.# 6
Water Distribution Tube - 22"
NameWater Distribution Tube - 22" 7602789
SI.# 6a
O-Rings - 0.675"
NameO-Rings - 0.675" 5004649
SI.# 7a
Water Trough - without Tabs, 22" models Before July 2013
NameWater Trough - without Tabs, 22" models Before July 2013 4009149
SI.# 7b
Water Trough - with Tabs - 22" models After July 2013
NameWater Trough - with Tabs - 22" models After July 2013 000010336
SI.# 8
Foodzone Seal Panel 22"
NameFoodzone Seal Panel 22" 000009188
SI.# 9
Evaporator Top Filler Panel 22" W NXT
NameEvaporator Top Filler Panel 22" W NXT 6065389
SI.# 9a
Bracket - Top Filler Panel
NameBracket - Top Filler Panel 6063339
SI.# 9b
Screw - #10-24 x 0.5" PHIL
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 10
Evaporator Top Frame Assembly - 22"
NameEvaporator Top Frame Assembly - 22" 7602799
SI.# 10a
Evaporator Bottom Frame Assembly
NameEvaporator Bottom Frame Assembly 4010463
SI.# 10b
Hex Nut - #8-32 Brass
NameHex Nut - #8-32 Brass 5429139
SI.# 11
Water Diverter - 22" Models
NameWater Diverter - 22" Models 7602779
SI.# 11a
Thumbscrew SS - #8-32 x 0.44"
NameThumbscrew SS - #8-32 x 0.44" 5305123
SI.# 12
LCD Display
NameLCD Display 000007827
SI.# 12a
LCD Display with Touch Pad & Housing Assembly
NameLCD Display with Touch Pad & Housing Assembly 000007520
SI.# 13
Touch Pad with Housing
NameTouch Pad with Housing 000008064
SI.# 14
LCD Wiring Harness - 30" Long
NameLCD Wiring Harness - 30" Long 000007737
SI.# 15
Mounting Bracket, touch screen
NameMounting Bracket, touch screen 000006697
SI.# 16a
Front Panel LCD Frame with Key Guard
NameFront Panel LCD Frame with Key Guard 000007046
SI.# 16b
Front Panel LCD Frame without Key Guard
NameFront Panel LCD Frame without Key Guard 000007047
SI.# 17
Thumbscrew SS - #8-32 x 0.375"
NameThumbscrew SS - #8-32 x 0.375" 5004799
SI.# 17a
O-Ring - 0.125" ID
NameO-Ring - 0.125" ID 5004629
SI.# 18
Screw - #12-16 x 0.687"
NameScrew - #12-16 x 0.687" 5004619
SI.# 19
Water Pump Base O-Ring - 4.00" ID
NameWater Pump Base O-Ring - 4.00" ID 5004659
SI.# 20
Water Pump Outlet O-Ring - 0.875" ID
NameWater Pump Outlet O-Ring - 0.875" ID 5004679
