Model
I0522 Panels

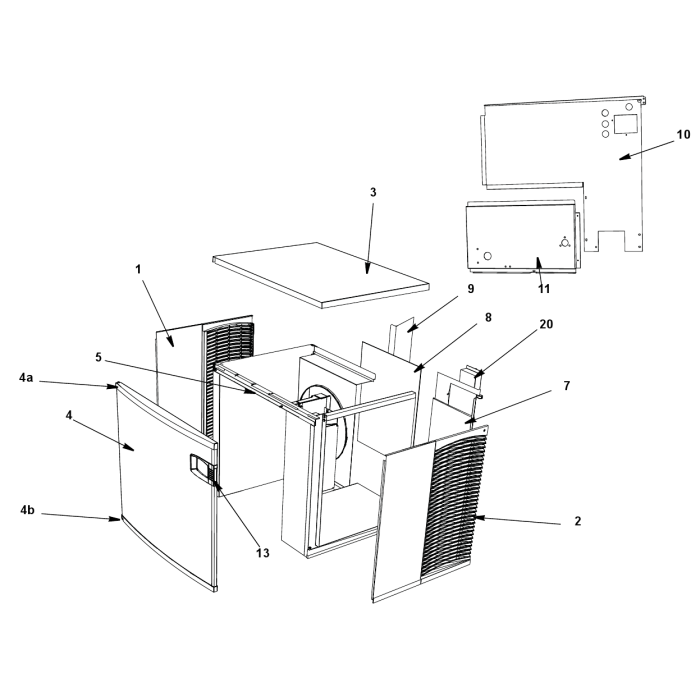

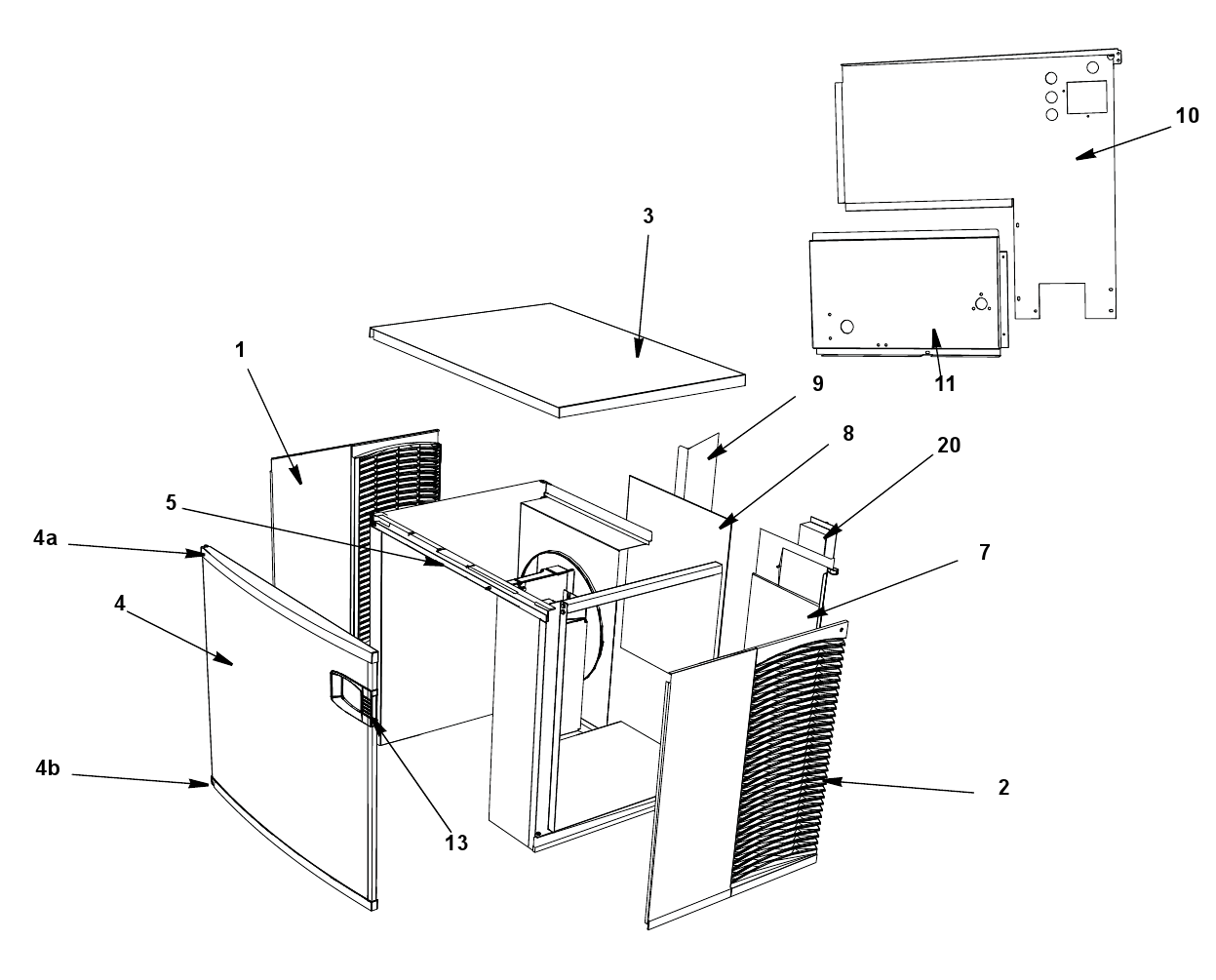

SI.# 1
NameLeft Side Panel - 21.5" H 12616
SI.# 2
NameRight Side Panel - 21.5" H 12615
SI.# 3
NameTop Cover 4012029
SI.# 4
NameFront Panel Assembly - 22" x 21.5" 6579
SI.# 4a
NameFront Panel Top Endcap 6560
SI.# 4b
NameFront Panel Bottom Endcap 6565
SI.# 5
NameFront Top Support 10050
SI.# 5b
NameScrew - #10-16 x 0.625" 5005099
SI.# 7
NameBack Panel with Electrical Connection Box - Air-cooled Models 10906
SI.# 8
NameAir Filter - 16.8" x 12.81" 3005939
SI.# 9
NameAir Baffle Assembly 7314
SI.# 10
NameBack Panel with Electrical Connection Box - Water-cooled Models 10907
SI.# 11
NameBack Coupling Panel - Water-cooled Models 8022
SI.# 12
NameFemale Wing Adapter – 0.5" 8706083
SI.# 13a
NameFront Panel LCD Frame with Key Guard 7046
SI.# 13b
NameFront Panel LCD Frame without Key Guard 7047
SI.# 13c
NameDisplay Cover K00433
SI.# 14
NameFront Panel Screw 5004899
SI.# 15
NameBottom Door Frame 7602829
SI.# 15b
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 16
NameLeft Door Pivot Leaf Hinge 3005579
SI.# 16a
NameMounting Screw - #8-32 x 1.0" PHIL 5005379
SI.# 16b
NameTapping Plate - Panel Hinge Screws 1127
SI.# 17
NameLeft Top Channel 6068649
SI.# 18
NameRight Top Channel 10981
SI.# 19
NameLeft Corner Post 6063439
SI.# 19a
NameLeft Corner Post 10299
SI.# 20a
NameRear Connection Box 6067289
SI.# 20b
NameCover - Rear Connection Box 6067299
SI.# 20c
NameTerminal Block - 50 Hz - 3 Pole 2006143
SI.# 20d
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 21
NameCartoning 7112319
