I0686C Control Box
I0686C Control Box
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
I0686C Control Box

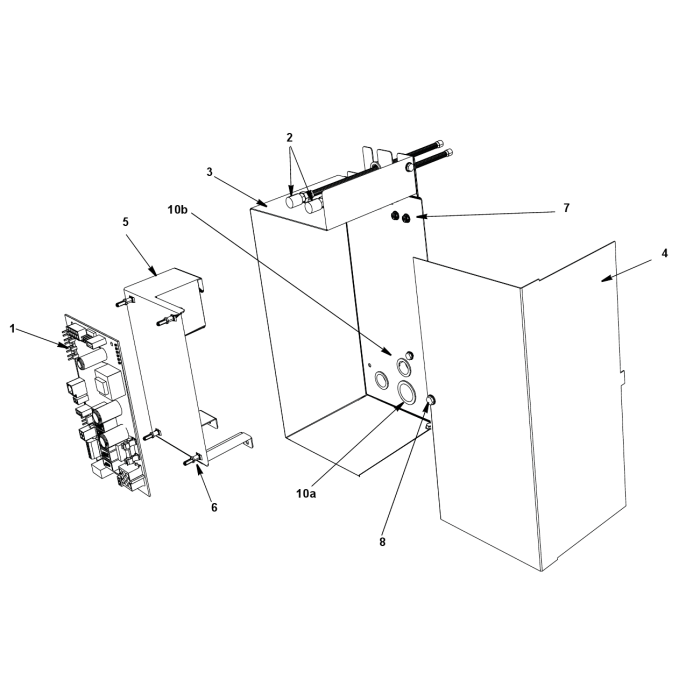

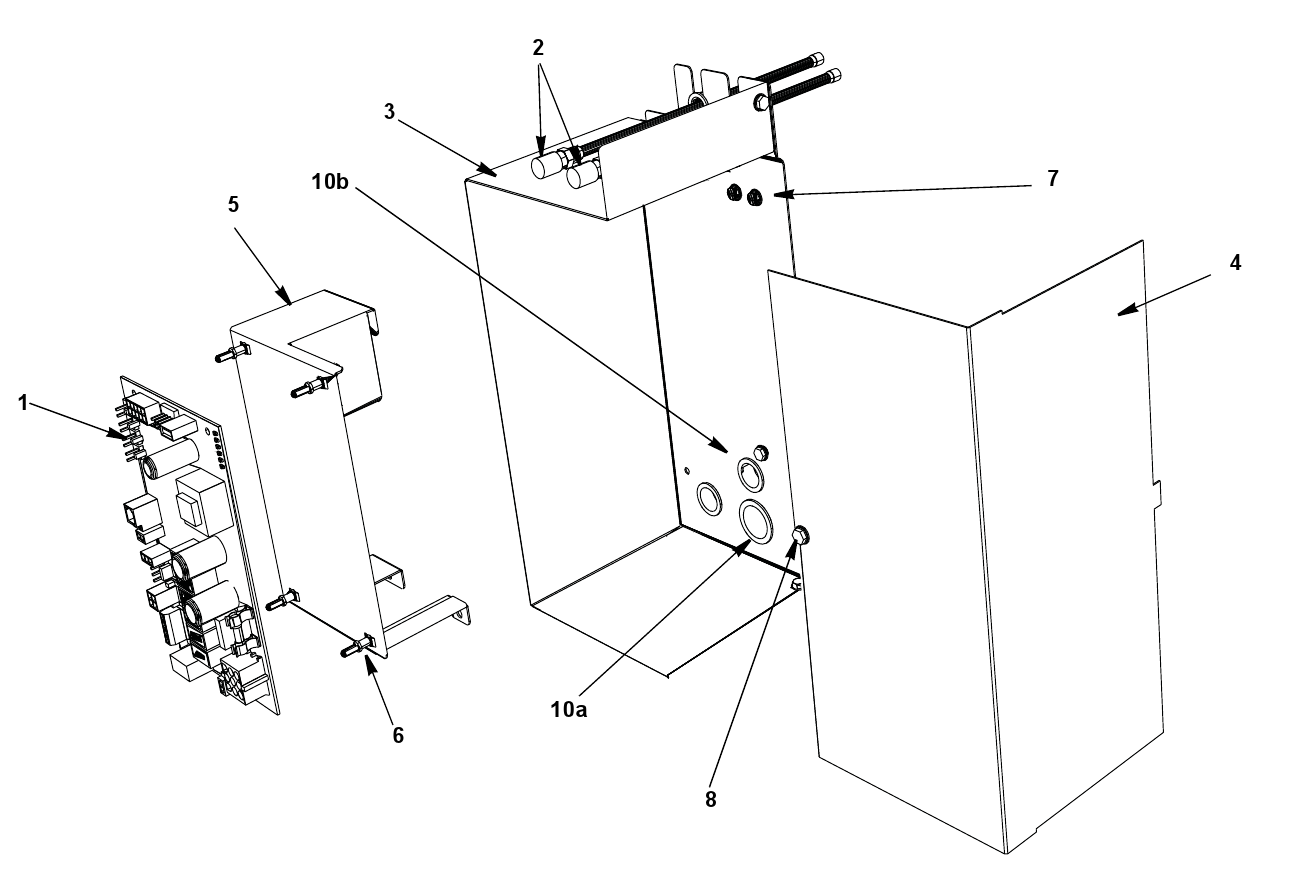

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000008309 |
| 1a |  Ceramic Fuse - 8A | 000009181 |
| 2 |  | 8373263 |
| 2a |  | 7626843 |
| 3 |  | 000008279 |
| 4 |  | 000010421 |
| 5 |  | 000007564 |
| 6 |  | 4302253 |
| 7 |  Screw - #10-24 x 0.5" Ground | 5202169 |
| 8 |  | 5202069 |
| 9 |  | 5573209 |
| 10a |  | 2500019 |
| 10b |  | 2501409 |
| 11a |  | 7182 |
| 11b | | 7183 |
| 12a | | 7187 |
SI.# 1
NameControl Board 000008309
SI.# 1a
NameCeramic Fuse - 8A 000009181
SI.# 2
NameVALVE, ACCESS with Schrader 8373263
SI.# 2a
NameValve Cores, Schrader style 7626843
SI.# 3
NameControl Box 000008279
SI.# 4
NameControl Box Cover 000010421
SI.# 5
NameControl Board Mounting Bracket 000007564
SI.# 6
NameControl Board Mounting Supports 4302253
SI.# 7
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 8
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 9
NameStar Washer 5573209
SI.# 10a
NameBushing - 1.187" 2500019
SI.# 10b
NameBushing - 0.875" 2501409
SI.# 11a
NameControl Box Wiring Harness - 115V/60 Hz/1 Ph 7182
SI.# 11b
NameControl Box Wiring Harness - 230V/50 Hz/1 Ph 7183
SI.# 12a
NameWiring Harness - Refrigeration Compartment - 115V/60 Hz/1 Ph & 230V/50 Hz/1 Ph 7187
| SKU | I0686C Control Box |
|---|
