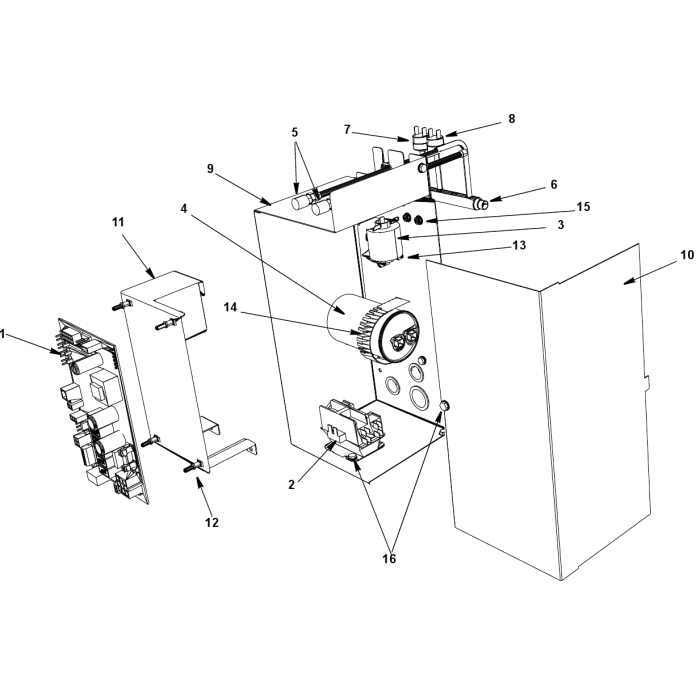

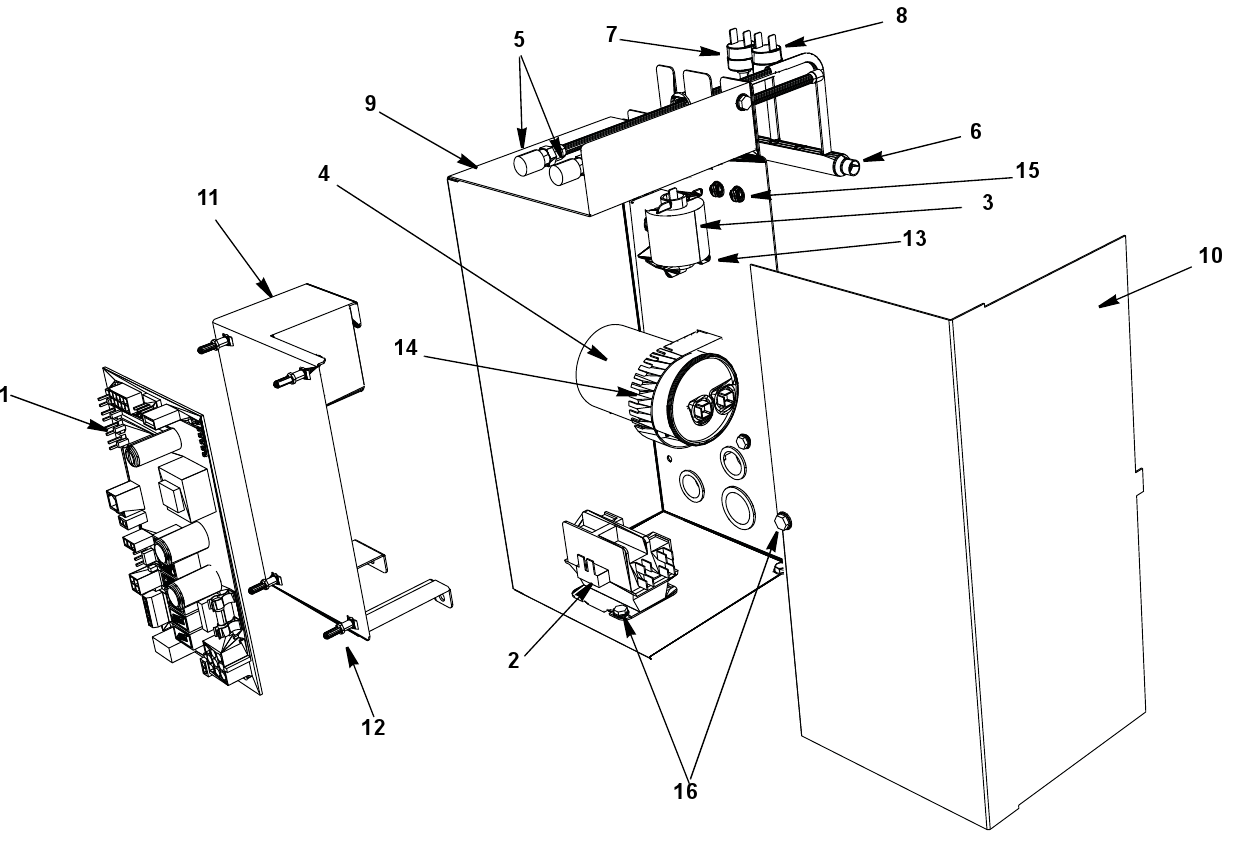

I1000 Control Box Components
SI.# 1
NameControl Board 000008309
SI.# 1a
NameCeramic Fuse - 8A 000009181
SI.# 2a
NameContactor - 230V/50-60 Hz/1 Ph 2006599
SI.# 2b
NameContactor - 230V/60 Hz/3 Ph 2006619
SI.# 3
NamePTCR - 18A 8504993
SI.# 4a
NameRun Capacitor - 115-230V/50-60 Hz/1 Ph 8503933
SI.# 4b
NameRun Capacitor - 208-230V/50-60 Hz/1 Ph 1395
SI.# 5
NameVALVE, ACCESS with Schrader 8373263
SI.# 5a
NameValve Cores, Schrader style 7626843
SI.# 6
NameManifold Strainer 8251049
SI.# 6a
NameBracket - Access Valves/Manifold Strainer 6058571
SI.# 8
NameFan Cycling Control - 225-275 psig 13509
SI.# 8a
NameFan Cycling Control - 225-275 psig 13578
SI.# 9
NameControl Box 000008279
SI.# 10
NameControl Box Cover 000010421
SI.# 11
NameControl Board Mounting Bracket 000007564
SI.# 12
NameControl Board Mounting Supports 4302253
SI.# 13
NamePTCR Mounting Bracket 8505013
SI.# 14
NameCapacitor Mounting Strap - USE UP 6024953
SI.# 15
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 16
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 17
NameStar Washer 5573209
SI.# 18a
NameBushing - 1.187" 2500019
SI.# 18b
NameBushing - 0.875" 2501409
SI.# 19a
NameControl Box Wiring Harness - 230V/60 Hz/1 Ph 000007179
SI.# 19b
NameWiring Harness - Control Box - 3 Ph 000007181
SI.# 19c
NameControl Box Wiring Harness - 230V/50 Hz/1 Ph 000007180
SI.# 19d
NameControl Box Wiring Harness - 460V/60 Hz/3 Ph 000008020
SI.# 19e
NameHarvest Air Assist Pump Wiring Harness 2007439
SI.# 20a
NameWiring Harness - Compressor Compartment - Air-cooled 208V 000007178
SI.# 20b
NameWiring Harness - Compressor Compartment - Water-cooled 208V 000007176
SI.# 20c
NameWiring Harness - Compressor Compartment - Remote Air- cooled 208V 000007175
SI.# 21
NameElectrical Noise Filter Wiring Harness 000005500
SI.# 22
NameElectronic Noise Filter - Korea 000012569
