IBT1020C Evaporator Compartment

main product photo

Have a Question?

Talk to our product experts at

(510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

IBT1020C Evaporator Compartment

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock
Model
IBT1020C Evaporator Compartment
Add to Wish List
LookBook product items

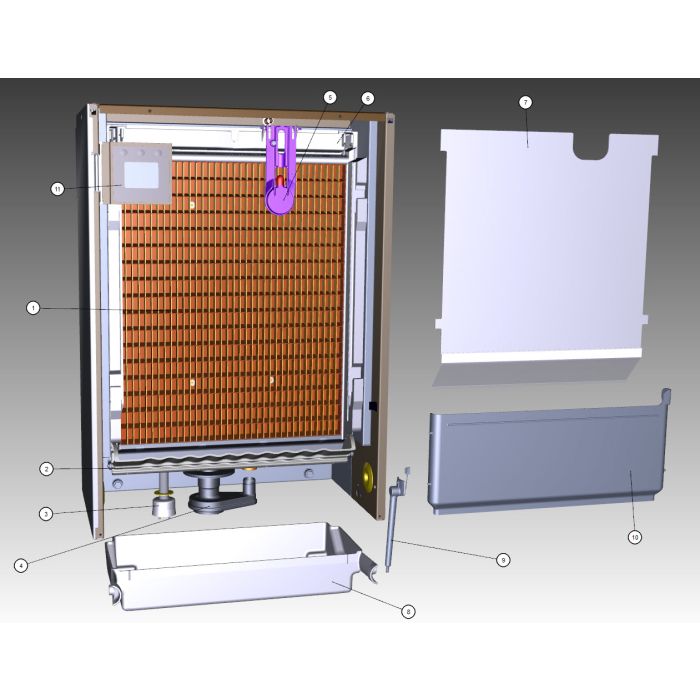

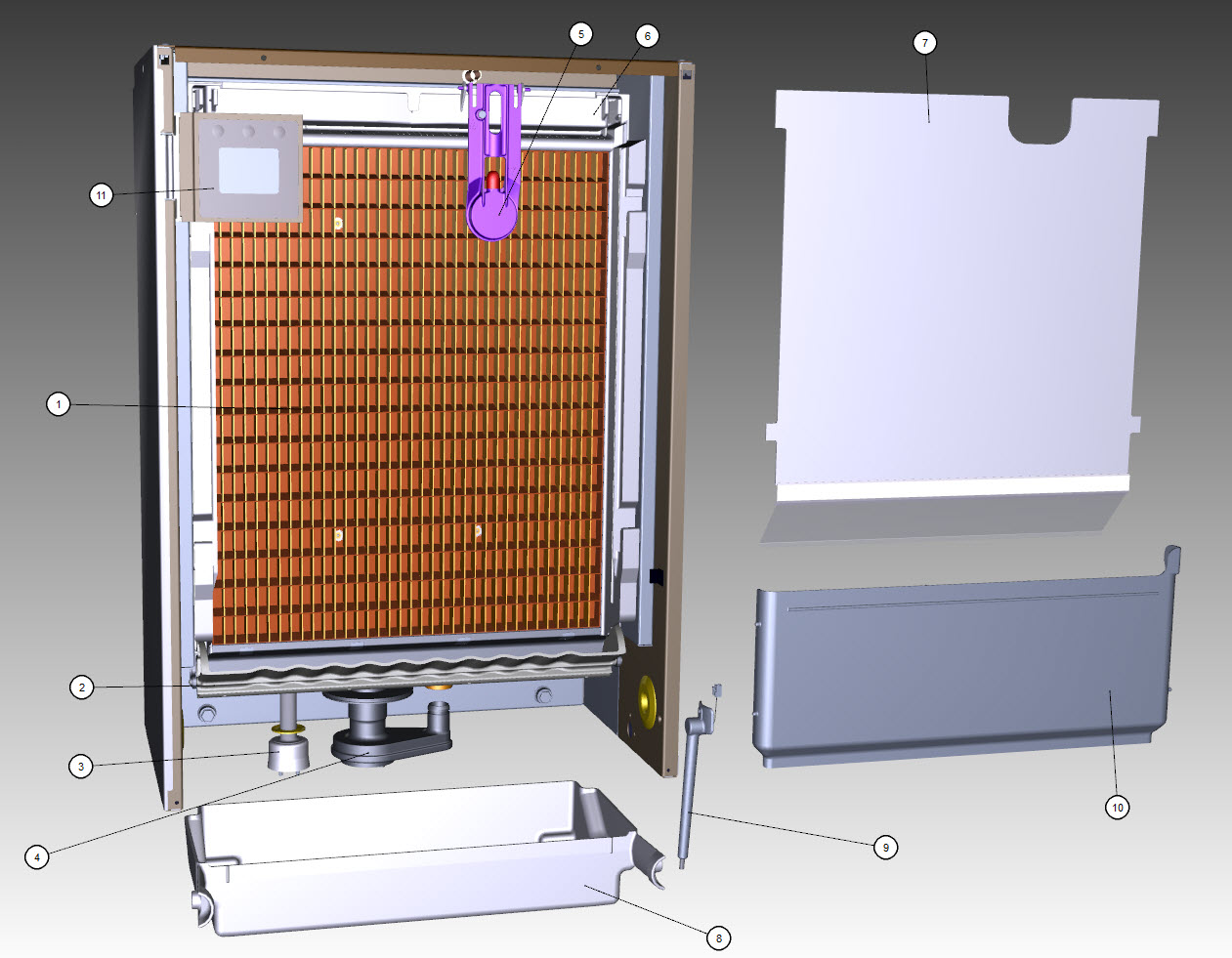

SI.# Name Part#
1a Evaporator - Half Dice Cube Evaporator - Half Dice Cube 000009314
2 Ice Damper Assembly Ice Damper Assembly 2056
3 Water Level Probe, Includes Probe and wire Water Level Probe, Includes Probe and wire 000016053
3a Wire - Control Box to Water Level Probe Wire - Control Box to Water Level Probe 000007099
3b Water Level Probe - Holder Water Level Probe - Holder 000007053
3c Screw - #10-24 x 0.5" PHIL Screw - #10-24 x 0.5" PHIL 5202099
3dMounting Bracket Mounting Bracket 7849
4aWater Pump - 115V/60 Hz Water Pump - 115V/60 Hz 2008489
4bWater Pump - 230V/60-Hz Water Pump - 230V/60-Hz 2008119
4cWater Pump Mount Water Pump Mount 1202
4dWater Pump Base O-Ring - 4.00" ID Water Pump Base O-Ring - 4.00" ID 5004659
4eWater Pump Outlet O-Ring - 0.875" ID Water Pump Outlet O-Ring - 0.875" ID 5004679
5Ice Thickness Control Probe Ice Thickness Control Probe 000015292
6Water Distribution Tube - 30" Water Distribution Tube - 30" 7602193
6aO-Rings - 0.675" O-Rings - 0.675" 5004649
6bFitting Bracket Fitting Bracket 13056
6cFitting, through bulkhead Fitting, through bulkhead 4014693
7Splash Shield Assembly Splash Shield Assembly 000015003
8Water Trough - IB Water Trough - IB 7482
8aTrough Mount Trough Mount 7619
8bTrough Support Trough Support 000011117
8cScrew - #12-16 x 0.5" Screw - #12-16 x 0.5" 5043
9Thermostat Probe with Bracket Thermostat Probe with Bracket 000014713
9aThumbscrew - #8-32 x 0.375" Thumbscrew - #8-32 x 0.375" 5000013
10Bottom Splash Shield Bottom Splash Shield 4000603
10aWing-head Mounting Stud Wing-head Mounting Stud 5000453
10bReceptacle Receptacle 5650853
11Touch Screen Housing Assembly - IB Touch Screen Housing Assembly - IB 13927
11aMounting Bracket - Touch Screen - IB Mounting Bracket - Touch Screen - IB 13029
11bPin - Touch Screen - IB Pin - Touch Screen - IB 7542
12Magnetic Bin Switch Magnetic Bin Switch 000001756
12aBin Switch Wiring Harness Bin Switch Wiring Harness 000014038
12bBin Switch Covers Bin Switch Covers 000001421
13Thumbscrew SS - #8-32 x 0.375" Thumbscrew SS - #8-32 x 0.375" 5004799
14aEvaporator Top Frame Assembly, includes to frame disks and hex huts Evaporator Top Frame Assembly, includes to frame disks and hex huts 000002786
14bEvaporator Bottom Frame Assembly Evaporator Bottom Frame Assembly 000002787
14cHex Nut - #8-32 Brass Hex Nut - #8-32 Brass 5429139
SI.# 1a
Evaporator - Half Dice Cube
NameEvaporator - Half Dice Cube 000009314
SI.# 2
Ice Damper Assembly
NameIce Damper Assembly 2056
SI.# 3
Water Level Probe, Includes Probe and wire
NameWater Level Probe, Includes Probe and wire 000016053
SI.# 3a
Wire - Control Box to Water Level Probe
NameWire - Control Box to Water Level Probe 000007099
SI.# 3b
Water Level Probe - Holder
NameWater Level Probe - Holder 000007053
SI.# 3c
Screw - #10-24 x 0.5" PHIL
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 3d
Mounting Bracket
NameMounting Bracket 7849
SI.# 4a
Water Pump - 115V/60 Hz
NameWater Pump - 115V/60 Hz 2008489
SI.# 4b
Water Pump - 230V/60-Hz
NameWater Pump - 230V/60-Hz 2008119
SI.# 4c
Water Pump Mount
NameWater Pump Mount 1202
SI.# 4d
Water Pump Base O-Ring - 4.00" ID
NameWater Pump Base O-Ring - 4.00" ID 5004659
SI.# 4e
Water Pump Outlet O-Ring - 0.875" ID
NameWater Pump Outlet O-Ring - 0.875" ID 5004679
SI.# 5
Ice Thickness Control Probe
NameIce Thickness Control Probe 000015292
SI.# 6
Water Distribution Tube - 30"
NameWater Distribution Tube - 30" 7602193
SI.# 6a
O-Rings - 0.675"
NameO-Rings - 0.675" 5004649
SI.# 6b
Fitting Bracket
NameFitting Bracket 13056
SI.# 6c
Fitting, through bulkhead
NameFitting, through bulkhead 4014693
SI.# 7
Splash Shield Assembly
NameSplash Shield Assembly 000015003
SI.# 8
Water Trough - IB
NameWater Trough - IB 7482
SI.# 8a
Trough Mount
NameTrough Mount 7619
SI.# 8b
Trough Support
NameTrough Support 000011117
SI.# 8c
Screw - #12-16 x 0.5"
NameScrew - #12-16 x 0.5" 5043
SI.# 9
Thermostat Probe with Bracket
NameThermostat Probe with Bracket 000014713
SI.# 9a
Thumbscrew - #8-32 x 0.375"
NameThumbscrew - #8-32 x 0.375" 5000013
SI.# 10
Bottom Splash Shield
NameBottom Splash Shield 4000603
SI.# 10a
Wing-head Mounting Stud
NameWing-head Mounting Stud 5000453
SI.# 10b
Receptacle
NameReceptacle 5650853
SI.# 11
Touch Screen Housing Assembly - IB
NameTouch Screen Housing Assembly - IB 13927
SI.# 11a
Mounting Bracket - Touch Screen - IB
NameMounting Bracket - Touch Screen - IB 13029
SI.# 11b
Pin - Touch Screen - IB
NamePin - Touch Screen - IB 7542
SI.# 12
Magnetic Bin Switch
NameMagnetic Bin Switch 000001756
SI.# 12a
Bin Switch Wiring Harness
NameBin Switch Wiring Harness 000014038
SI.# 12b
Bin Switch Covers
NameBin Switch Covers 000001421
SI.# 13
Thumbscrew SS - #8-32 x 0.375"
NameThumbscrew SS - #8-32 x 0.375" 5004799
SI.# 14a
Evaporator Top Frame Assembly, includes to frame disks and hex huts
NameEvaporator Top Frame Assembly, includes to frame disks and hex huts 000002786
SI.# 14b
Evaporator Bottom Frame Assembly
NameEvaporator Bottom Frame Assembly 000002787
SI.# 14c
Hex Nut - #8-32 Brass
NameHex Nut - #8-32 Brass 5429139
More Information
SKUIBT1020C Evaporator Compartment
