IBT1020C Refrigeration Compartment

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock

Model

IBT1020C Refrigeration Compartment

LookBook product items

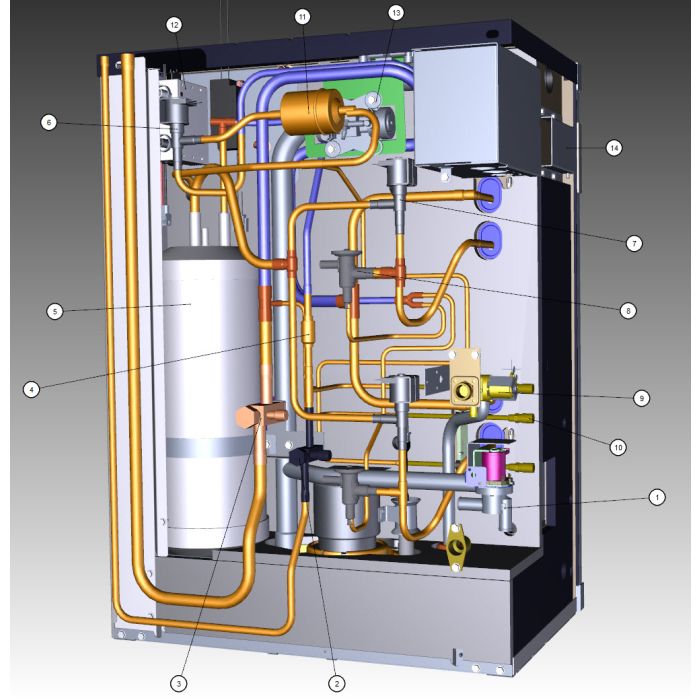

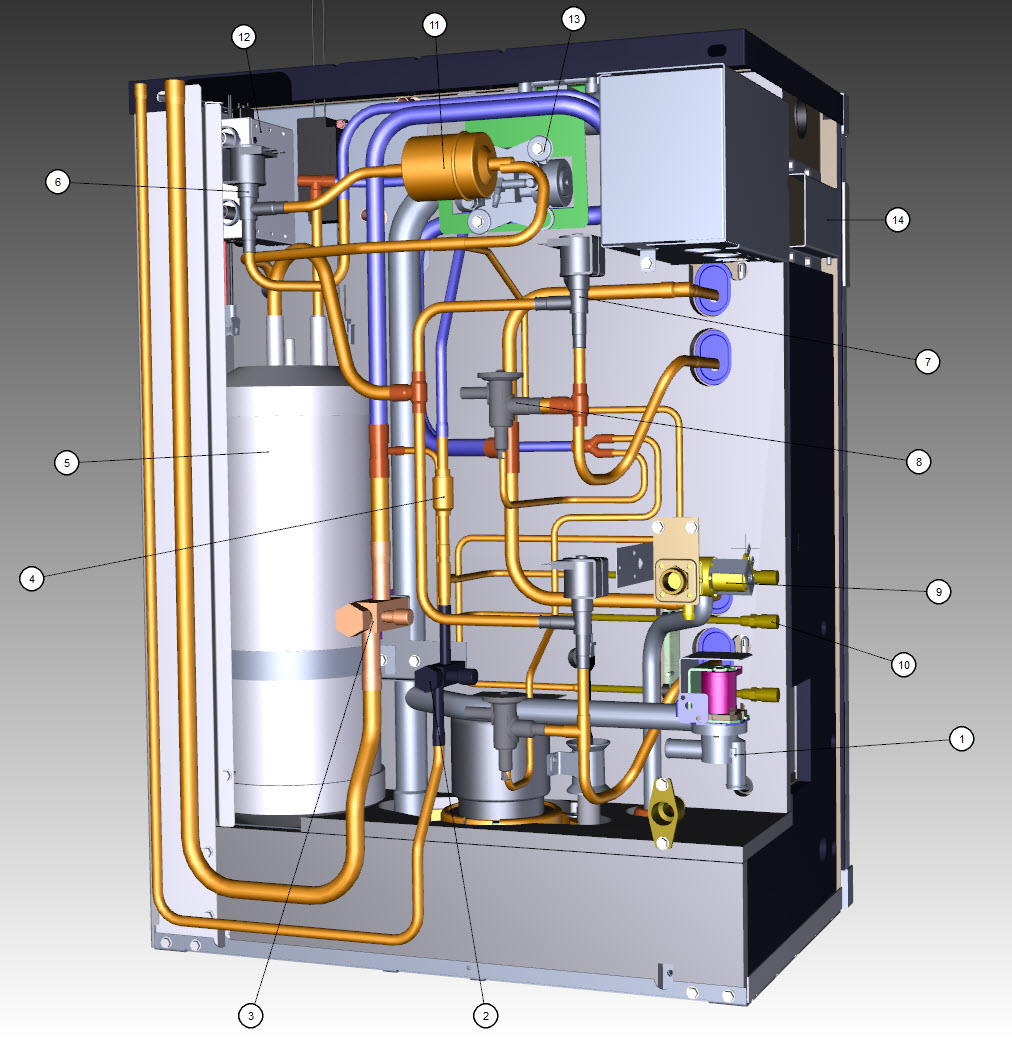

SI.#	Name	Part#
2	Manual Shut-off Valve - 0.375"	8373293
3	Manual Shut-off Valve - 0.625"	8373303
3a	Insulation Boot - Valve Body	7600643
3b	Valve Cap	8373023
4	Magni-Check Valve - 0.375"	8373149
5	Receiver	7629593
6a	Solenoid Valve 0.375" x 0.375" Including 115V/60 Hz Electrical Coil	7027
6c	Solenoid Valve 0.375" x 0.375" Including 208-230V/50-60 Hz Electrical Coil	7026
7a	Solenoid Valve 0.375" x 0.375" Including 115V/60 Hz Electrical Coil	7025
7c	Solenoid Valve 0.375" x 0.375" Including 208-230V/50-60 Hz Electrical Coil	7019
8	Expansion Valve	15016
8	TXV Expansion Valve	000015288
8a	Insulation Boot - Valve Body	7600803
9a	Water Inlet Valve - 115V/60 Hz/1 Ph	9123
9b	Water Inlet Valve - 208-230V/50-60 Hz	9122
10	Access Valve	8373253
10a	Valve Cores	7626843
10b	Bracket	7467
11	Drier	8930279
12	LuminIce II Bulb, Gen 2, for NXT and Indigo built after July 2015	K00454
13c	Mounting Bracket	14480
13d	Air Manifold	4011739
14	Mounting Bracket - Touch Screen - IB	13029
15	Dump Valve Outlet Vinyl Tubing	8024
17	Clamp - Expansion Valve Bulb	5650529
17a	Strap - Expansion Valve Bulb - 0.5"	3000503
18	Receiver Strap	7466
18a	Receiver Mounting Bracket	7465
19	Bracket/Strap - Receiver	18001
20	Service Valve Bracket	7464
21	Thermistor with Spring Clips	000015573
22	Drip Bracket	8635
23	Molded Vinyl Tube	7413
24	Water Inlet Fitting	4000873
24a	Lock Nut - 1.25"	5000383
24b	Molded Vinyl Tube	7414
25	Reducing Nipple - 0.75" x 0.50"	8700383
26	Reducing Nipple - 0.75" x 0.38"	8700393
27	S-Trap 0.625"	K00172

SI.# 2

NameManual Shut-off Valve - 0.375" 8373293

SI.# 3

NameManual Shut-off Valve - 0.625" 8373303

SI.# 3a

NameInsulation Boot - Valve Body 7600643

SI.# 3b

NameValve Cap 8373023

SI.# 4

NameMagni-Check Valve - 0.375" 8373149

SI.# 5

NameReceiver 7629593

SI.# 6a

NameSolenoid Valve 0.375" x 0.375" Including 115V/60 Hz Electrical Coil 7027

SI.# 6c

NameSolenoid Valve 0.375" x 0.375" Including 208-230V/50-60 Hz Electrical Coil 7026

SI.# 7a

NameSolenoid Valve 0.375" x 0.375" Including 115V/60 Hz Electrical Coil 7025

SI.# 7c

NameSolenoid Valve 0.375" x 0.375" Including 208-230V/50-60 Hz Electrical Coil 7019

SI.# 8

NameExpansion Valve 15016

SI.# 8

NameTXV Expansion Valve 000015288

SI.# 8a

NameInsulation Boot - Valve Body 7600803

SI.# 9a

NameWater Inlet Valve - 115V/60 Hz/1 Ph 9123

SI.# 9b

NameWater Inlet Valve - 208-230V/50-60 Hz 9122

SI.# 10

NameAccess Valve 8373253

SI.# 10a

NameValve Cores 7626843

SI.# 10b

NameBracket 7467

SI.# 11

NameDrier 8930279

SI.# 12

NameLuminIce II Bulb, Gen 2, for NXT and Indigo built after July 2015 K00454

SI.# 13c

NameMounting Bracket 14480

SI.# 13d

NameAir Manifold 4011739

SI.# 14

NameMounting Bracket - Touch Screen - IB 13029

SI.# 15

NameDump Valve Outlet Vinyl Tubing 8024

SI.# 17

NameClamp - Expansion Valve Bulb 5650529

SI.# 17a

NameStrap - Expansion Valve Bulb - 0.5" 3000503

SI.# 18

NameReceiver Strap 7466

SI.# 18a

NameReceiver Mounting Bracket 7465

SI.# 19

NameBracket/Strap - Receiver 18001

SI.# 20

NameService Valve Bracket 7464

SI.# 21

NameThermistor with Spring Clips 000015573

SI.# 22

NameDrip Bracket 8635

SI.# 23

NameMolded Vinyl Tube 7413

SI.# 24

NameWater Inlet Fitting 4000873

SI.# 24a

NameLock Nut - 1.25" 5000383

SI.# 24b

NameMolded Vinyl Tube 7414

SI.# 25

NameReducing Nipple - 0.75" x 0.50" 8700383

SI.# 26

NameReducing Nipple - 0.75" x 0.38" 8700393

SI.# 27

NameS-Trap 0.625" K00172

More Information

More Information
SKU	IBT1020C Refrigeration Compartment
