IF0500N Control Box Components
IF0500N Control Box Components
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model

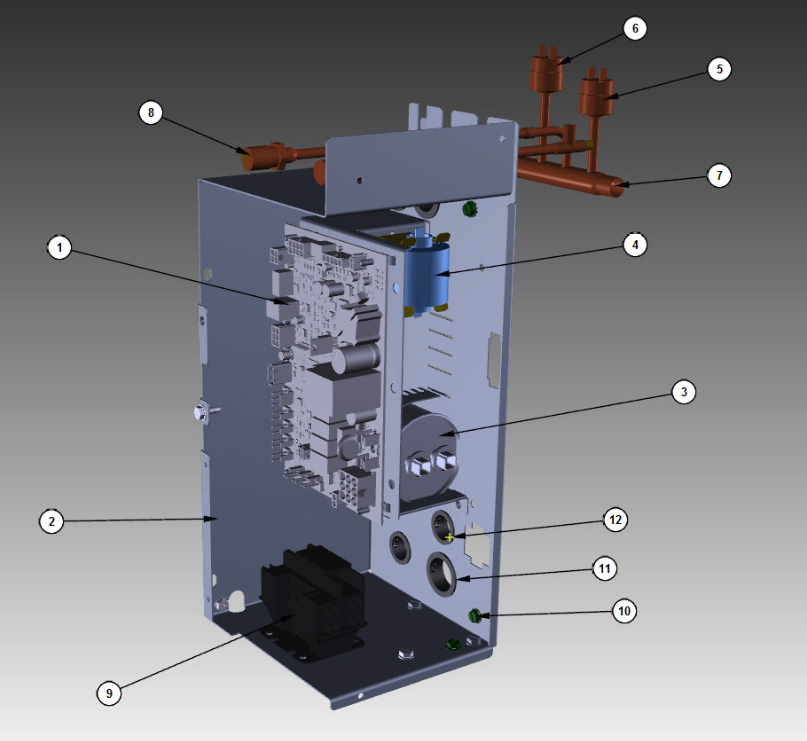

IF0500N Control Box Components
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000015208 |
| 1a |  | 000015009 |
| 2 |  | 000013818 |
| 2a |  | 000010421 |
| 2b |  | 000007564 |
| 2c |  | 4302253 |
| 3a |  | 2010133 |
| 3b |  | 6021601 |
| 4 |  | 8505003 |
| 4a |  | 8505023 |
| 7 |  | 8251049 |
| 7a |  | 6058571 |
| 8 |  | 8373263 |
| 8a |  | 7626843 |
| 9 |  | 2006589 |
| 10 |  Screw - #10-24 x 0.5" Ground | 5202169 |
| 11 |  | 2500019 |
| 12 |  | 2501409 |
| 13 |  | 5202069 |
| 13a |  | 5573209 |
| 14 |  | 000007696 |
| 14a |  | 2008389 |
| 15 | | 15869 |
| 16 |  | 000007175 |
SI.# 1
NameControl Board 000015208
SI.# 1a
NameCeramic Fuse - 6.3A 000015009
SI.# 2
NameControl Box 000013818
SI.# 2a
NameControl Box Cover 000010421
SI.# 2b
NameControl Board Mounting Bracket 000007564
SI.# 2c
NameControl Board Mounting Supports 4302253
SI.# 3a
NameRun Capacitor 2010133
SI.# 3b
NameCapacitor Mounting Strap 6021601
SI.# 4
NamePTCR - 10A 8505003
SI.# 4a
NamePTCR Mounting Bracket 8505023
SI.# 7
NameManifold Strainer 8251049
SI.# 7a
NameBracket - Access Valves/Manifold Strainer 6058571
SI.# 8
NameVALVE, ACCESS with Schrader 8373263
SI.# 8a
NameValve Cores, Schrader style 7626843
SI.# 9
NameContactor - 115V/60 Hz/1 Ph 2006589
SI.# 10
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 11
NameBushing - 1.187" 2500019
SI.# 12
NameBushing - 0.875" 2501409
SI.# 13
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 13a
NameStar Washer 5573209
SI.# 14
NameControl Box Wiring Harness - 115V/60 Hz/1 Ph 000007696
SI.# 14a
NameControl Box Wiring Harness - F2 Remote 2008389
SI.# 15
NameMolded Plug Wiring Harness - Compressor 1 Ph - Embraco 15869
SI.# 16
NameWiring Harness - Compressor Compartment - Remote Air- cooled 208V 000007175
| SKU | IF0500N Control Box Components |
|---|
