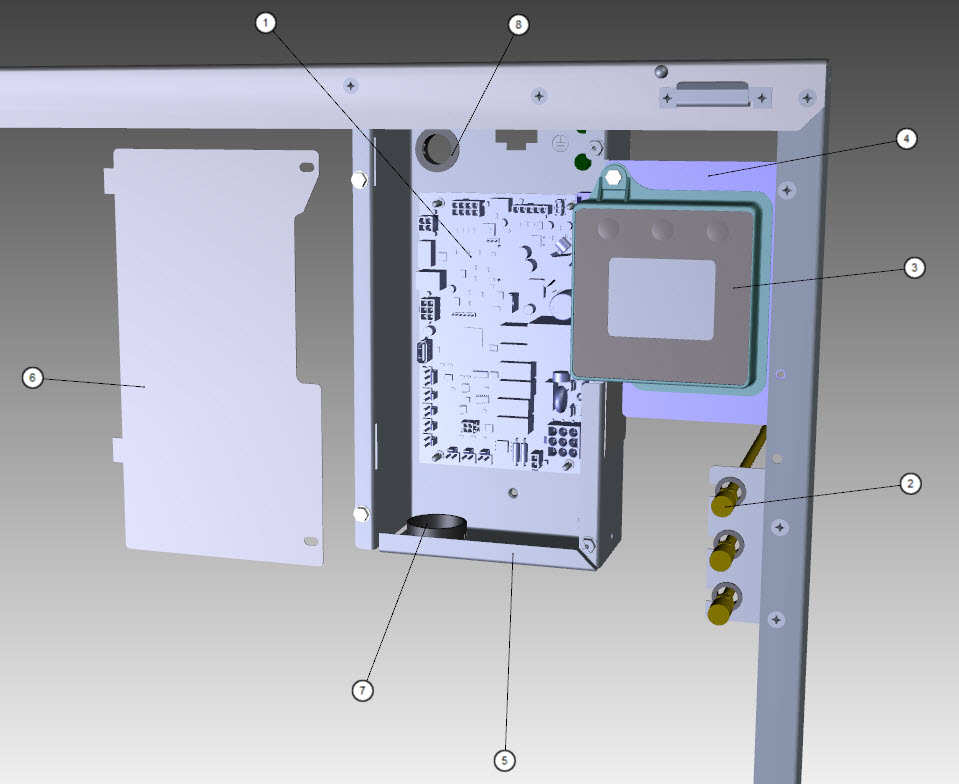

IF1400C Control Board Components
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000015208 |
| 1a |  | 000015009 |
| 2 |  | 8373263 |
| 2a |  | 7626843 |
| 2b |  | 000008049 |
| 2c |  Bushing - 0.625" | 2502189 |
| 2d |  | 5202099 |
| 3 |  | 000013938 |
| 4 | | 000014722 |
| 5 | | 000014714 |
| 6 |  | 000014715 |
| 7 |  | 2500139 |
| 8 |  | 2500029 |
| 9 |  | 4302253 |
| 10 |  | 5202169 |
| 11 |  | 5573209 |
| 12 | | 000009033 |
| 13a | | 000008464 |
| 13b | | 8465 |
SI.# 1
NameControl Board 000015208
SI.# 1a
NameCeramic Fuse - 6.3A 000015009
SI.# 2
NameVALVE, ACCESS with Schrader 8373263
SI.# 2a
NameValve Cores, Schrader style 7626843
SI.# 2b
NameRefrigeration Service Valve Bracket 000008049
SI.# 2c
NameBushing - 0.625" 2502189
SI.# 2d
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 3
NameTouch Screen Housing Assembly - Duals/Marine/Prison 000013938
SI.# 4
NameMounting Bracket - Touch Screen Housing 000014722
SI.# 5
NameControl Box, Dual evap units 000014714
SI.# 6
NameControl Box Cover, dual evap units 000014715
SI.# 7
NameBushing - 1.5" 2500139
SI.# 8
NameBushing - 1.125" OD x 0.75" ID 2500029
SI.# 9
NameControl Board Mounting Supports 4302253
SI.# 10
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 11
NameStar Washer 5573209
SI.# 12
NameRefrigeration Compartment Wiring Harness 000009033
SI.# 13a
NameControl Box Wiring Harness - 115V/60 Hz/1 Ph 000008464
SI.# 13b
NameControl Box Wiring Harness - 230V/50 Hz/1 Ph 8465
