IT0620 Common Refrigeration Components

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock

Model

IT0620 Common Refrigeration Components

LookBook product items

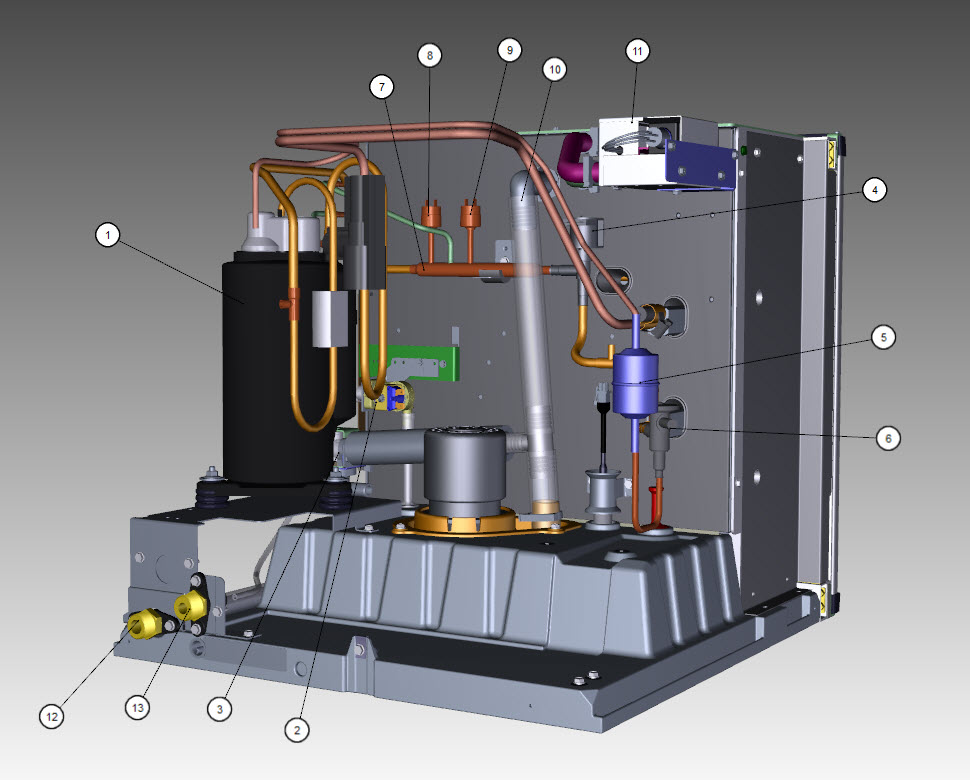

SI.#	Name	Part#
1a	Compressor - Samsung - 115V/60 Hz/1 Ph	10462
1b	Compressor - Samsung - 230V/60 Hz/1 Ph	10463
1d	Overload Protector - 115V/60 Hz/1 Ph	11145
1e	Overload Protector - 230V/60 Hz/1 Ph	14410
1f	Overload Protector - Bracket	10853
3c	Water Dump Valve Mounting Bracket	6058459
3d	Clear Tubing - 0.625" ID	4420383
5	Drier with Access Port - 0.25"	15361
6	TXV Expansion Valve	000015020
6b	Valve Insulation Boot - Bulb	4007203
7	Manifold Strainer	11170
7a	Bracket - Access Valves/Manifold Strainer	6058571
8	Fan Cycling Control - 335-275 psig	13531
9	High Pressure Cut-out CVDT1400 Condensing Unit - Refrigeration Components	13576
10	Insulated Tube	15334
10a	Snap Clamp - 1.0" ID	5650609
11	LuminIce II Bulb, Gen 2, for NXT and Indigo built after July 2015	K00454
12	ADAPTER .50ID X .63OD 1/2NPTF	8706093
12a	Male Connector - 0.375"	1360961
12b	Tygon Tube - 0.25" OD	4420291
14	Thermistor with Spring Clips	000015573
14a	Cable Tie - 8.0" L	5650733
15a	Insulation - 0.88" ID x 0.25" W x 13.5" L	6038831
15b	Snap Clamp - 0.799"/0.899" ID	5650709
16c	Air Manifold	4011739
16d	Air Assist Bracket	6489
16e	Air Assist - Nozzle	3001453
16f	Vinyl Tubing - 0.25" ID	4420883
16g	Tubing, Clear PVC - 0.125" ID x 0.25" OD	9002593
17	Tubing - Water Inlet Valve	4010439
17a	Clip-on Tubing Elbow	288
20a	Compressor Base - Metal	15352
20b	Mounting - Rubber Grommet	8503069
20c	Mounting - Sleeve	8503949
20d	Compressor Mounting - Bolt	5004819
20e	Compressor Mounting - Nut	5004829
21	Clamp - Expansion Valve Bulb	5650529
22	Strap - Expansion Valve Bulb - 0.5"	3000503
23	Screw - #10-24 x 0.5" HEX	5202069
24	Plug - Float Hole	000011604

SI.# 1a

NameCompressor - Samsung - 115V/60 Hz/1 Ph 10462

SI.# 1b

NameCompressor - Samsung - 230V/60 Hz/1 Ph 10463

SI.# 1d

NameOverload Protector - 115V/60 Hz/1 Ph 11145

SI.# 1e

NameOverload Protector - 230V/60 Hz/1 Ph 14410

SI.# 1f

NameOverload Protector - Bracket 10853

SI.# 3c

NameWater Dump Valve Mounting Bracket 6058459

SI.# 3d

NameClear Tubing - 0.625" ID 4420383

SI.# 5

NameDrier with Access Port - 0.25" 15361

SI.# 6

NameTXV Expansion Valve 000015020

SI.# 6b

NameValve Insulation Boot - Bulb 4007203

SI.# 7

NameManifold Strainer 11170

SI.# 7a

NameBracket - Access Valves/Manifold Strainer 6058571

SI.# 8

NameFan Cycling Control - 335-275 psig 13531

SI.# 9

NameHigh Pressure Cut-out CVDT1400 Condensing Unit - Refrigeration Components 13576

SI.# 10

NameInsulated Tube 15334

SI.# 10a

NameSnap Clamp - 1.0" ID 5650609

SI.# 11

NameLuminIce II Bulb, Gen 2, for NXT and Indigo built after July 2015 K00454

SI.# 12

NameADAPTER .50ID X .63OD 1/2NPTF 8706093

SI.# 12a

NameMale Connector - 0.375" 1360961

SI.# 12b

NameTygon Tube - 0.25" OD 4420291

SI.# 14

NameThermistor with Spring Clips 000015573

SI.# 14a

NameCable Tie - 8.0" L 5650733

SI.# 15a

NameInsulation - 0.88" ID x 0.25" W x 13.5" L 6038831

SI.# 15b

NameSnap Clamp - 0.799"/0.899" ID 5650709

SI.# 16c

NameAir Manifold 4011739

SI.# 16d

NameAir Assist Bracket 6489

SI.# 16e

NameAir Assist - Nozzle 3001453

SI.# 16f

NameVinyl Tubing - 0.25" ID 4420883

SI.# 16g

NameTubing, Clear PVC - 0.125" ID x 0.25" OD 9002593

SI.# 17

NameTubing - Water Inlet Valve 4010439

SI.# 17a

NameClip-on Tubing Elbow 288

SI.# 20a

NameCompressor Base - Metal 15352

SI.# 20b

NameMounting - Rubber Grommet 8503069

SI.# 20c

NameMounting - Sleeve 8503949

SI.# 20d

NameCompressor Mounting - Bolt 5004819

SI.# 20e

NameCompressor Mounting - Nut 5004829

SI.# 21

NameClamp - Expansion Valve Bulb 5650529

SI.# 22

NameStrap - Expansion Valve Bulb - 0.5" 3000503

SI.# 23

NameScrew - #10-24 x 0.5" HEX 5202069

SI.# 24

NamePlug - Float Hole 000011604
