Model

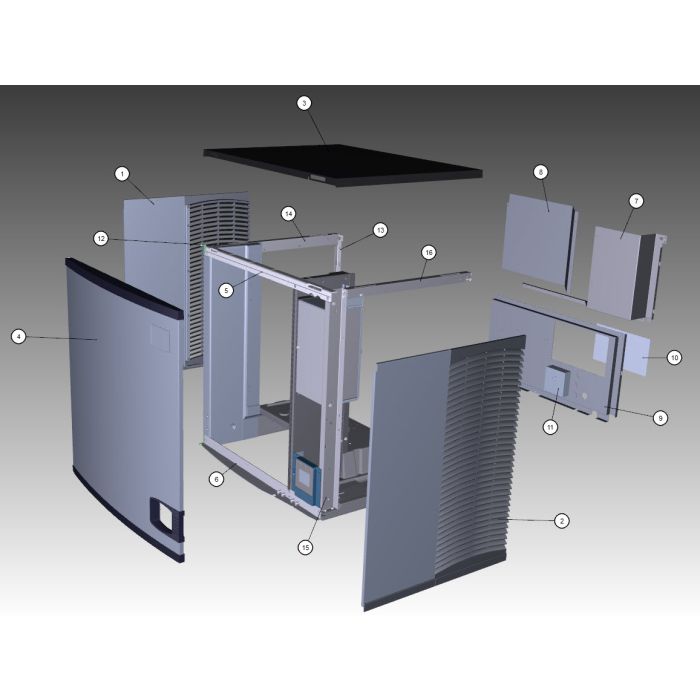

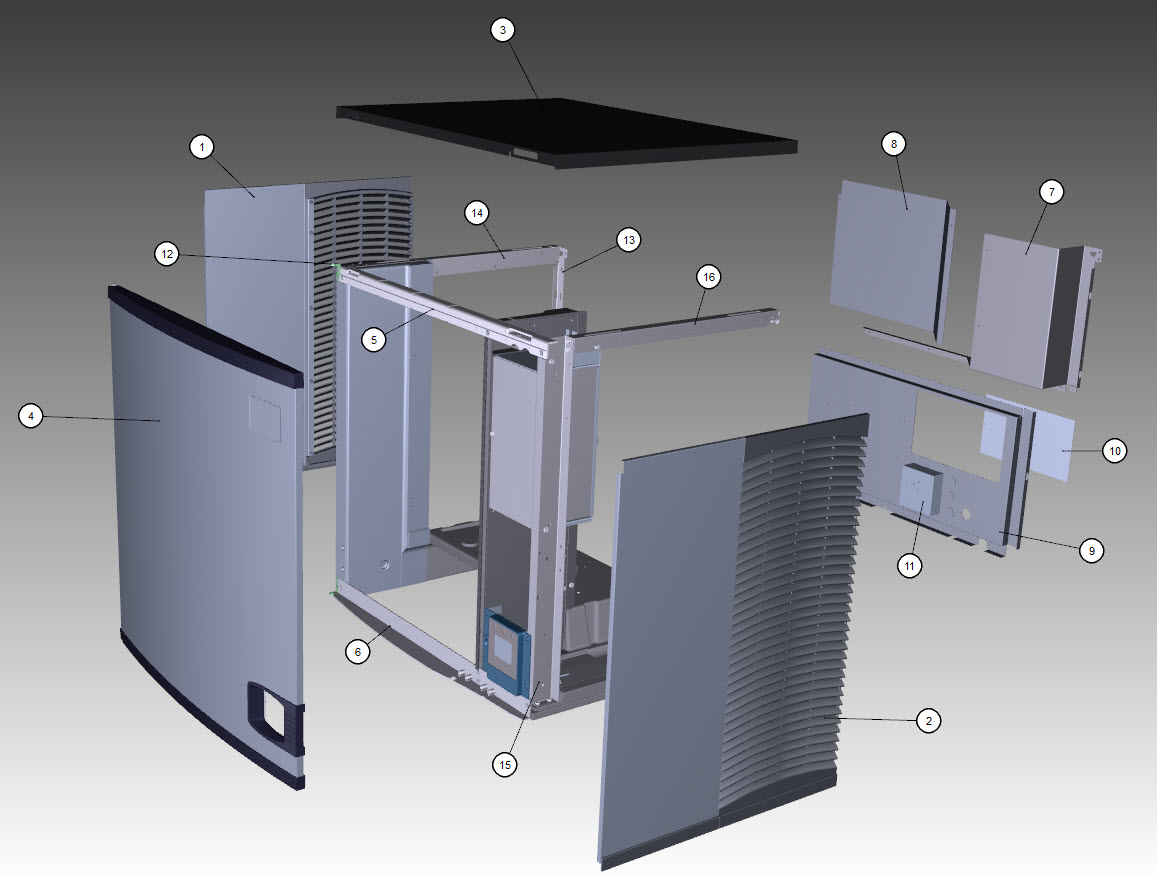

IT1200C Panels
| SI.# | Name | Part# |
|---|---|---|
| 1 |  Left Side Panel - 29.5" H | 000012620 |
| 2 |  | 000012619 |
| 3 |  | 6699 |
| 4 | | 15670 |
| 4a |  Front Panel Screw | 5004899 |
| 4b |  | 000006538 |
| 4c |  | 000006539 |
| 4d |  | 000009024 |
| 5 |  | 000010051 |
| 5b |  | 5005099 |
| 6 |  | 7602263 |
| 6b |  | 5202099 |
| 7 | | 6069249 |
| 8 | | 6069259 |
| 9 | | 6059689 |
| 10 | | 6062809 |
| 11a |  | 2006143 |
| 11b |  | 5202169 |
| 12 |  | 3005579 |
| 12a |  | 5005379 |
| 12b | | 1127 |
| 13 | | 11102 |
| 14 | | 6068649 |
| 15 | | 11335 |
| 16 | | 11032 |
| 17 | | 7112359 |
SI.# 1
NameLeft Side Panel - 29.5" H 000012620
SI.# 2
NameRight Side Panel - 29.5" H 000012619
SI.# 3
NameTop Cover 6699
SI.# 4
NameFront Panel Assembly - 30" x 29.5" 15670
SI.# 4a
NameFront Panel Screw 5004899
SI.# 4b
NameFront Panel Top Endcap 30" - Hinged 000006538
SI.# 4c
NameFront Panel Bottom Endcap 30"- Hinged 000006539
SI.# 4d
NameFoam Tape - 0.375" x 0.375" x 12.0" 000009024
SI.# 5
NameFront Top Support 30" 000010051
SI.# 5b
NameScrew - #10-16 x 0.625" 5005099
SI.# 6
NameBottom Door Frame 30" 7602263
SI.# 6b
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 7
NameTop Back Panel - Left Side 6069249
SI.# 8
NameTop Back Panel - Right Side 6069259
SI.# 9
NameBottom Back Access Panel 6059689
SI.# 10
NameCoupling Panel - Back 6062809
SI.# 11a
NameTerminal Block - 50 Hz - 3 Pole 2006143
SI.# 11b
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 12
NameLeft Door Pivot Leaf Hinge 3005579
SI.# 12a
NameMounting Screw - #8-32 x 1.0" PHIL 5005379
SI.# 12b
NameTapping Plate - Panel Hinge Screws 1127
SI.# 13
NameLeft Corner Post 11102
SI.# 14
NameLeft Top Channel 6068649
SI.# 15
NameRight Corner Post 11335
SI.# 16
NameRight Top Channel 11032
SI.# 17
NameCartoning 7112359
| SKU | IT1200C Panels |
|---|
