IT1430C Evaporator Components

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock

Model

IT1430C Evaporator Components

LookBook product items

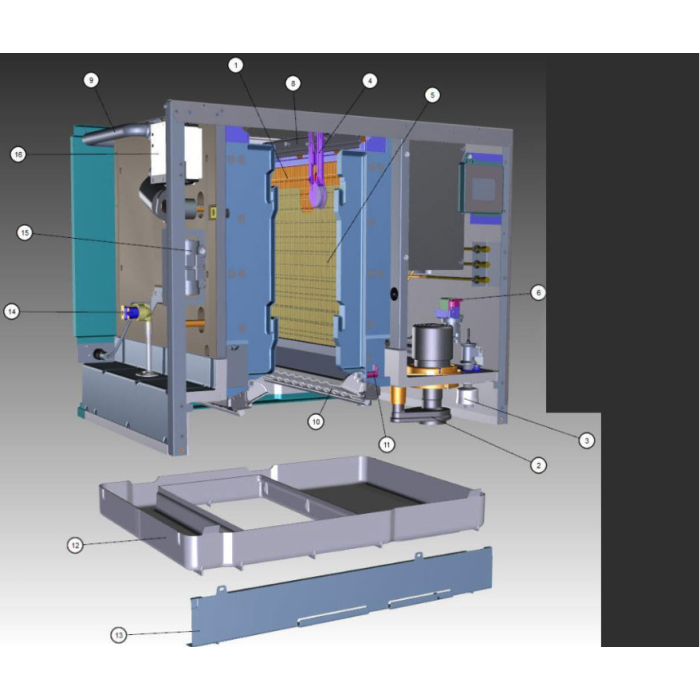

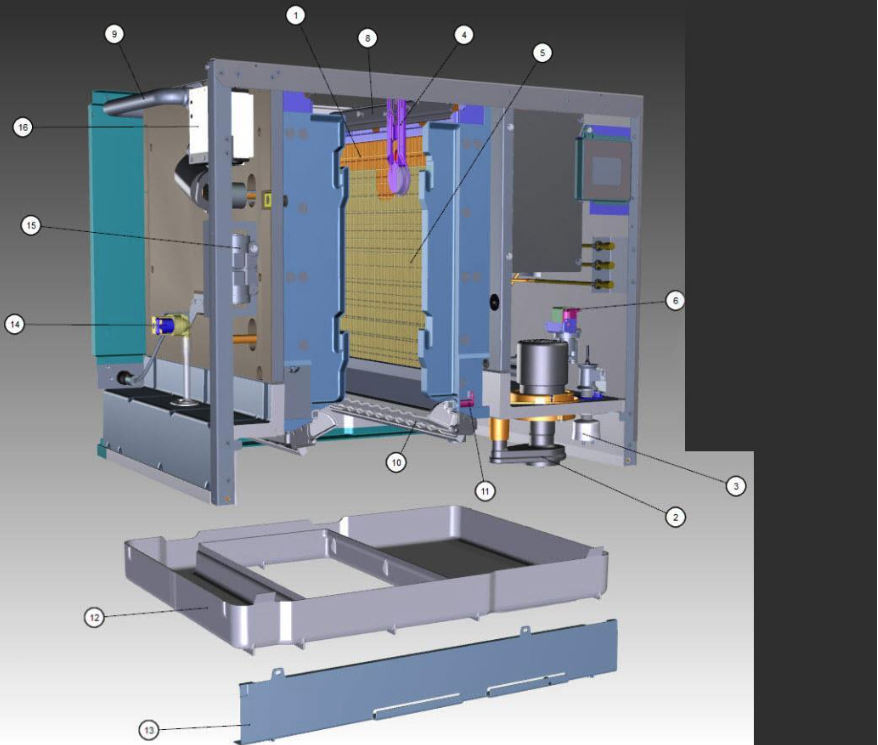

SI.#	Name	Part#
1a	Evaporator - Dice Cube	2783
1b	Evaporator - Half Dice Cube	2784
2a	Water Pump - 115V/60 Hz	000013435
2b	Water Pump - 230V/50-60 Hz	13434
3	Water Level Probe, Includes Probe and wire	000016053
3a	Water Level Probe - Holder	000007053
3b	Mounting Bracket Plastic	000008027
3c	Mounting Bracket Metal	13077
3d	Wire - Control Box to Water Level Probe	000007724
3e	Screw - #10-24 x 0.5" PHIL	5202099
4	Ice Thickness Control Probe	000015292
5	Splash Shield Assembly	15002
6a	Dump Valve Mounting Bracket	000001911
8	Water Distribution Tube - 30"	7602193
8a	Barbed Fitting	000001986
8b	Snap Clamp - 1.0" ID	5650609
8c	Snap Clamp - 1.123 x 1.296	5650539
8d	Fitting, through bulkhead	4014693
8e	Fitting Bracket	000013064
8f	O-Rings - 0.675"	5004649
9	Molded Vinyl Tube, Left Hand Distribution Tube	000001117
9a	Molded Vinyl Tube	1155
10	Ice Damper Assembly	2056
11	Magnetic Bin Switch	000001756
11a	Bin Switch Wiring Hanress	000014039
11b	Bin Switch Covers	000001421
12	Water Trough - Dual	000014343
13	Front Panel Mount - Hinged Panel Only	17380
13a	Thumbscrew - #8-32 x 0.375"	5000013
16	LuminIce II Bulb, Gen 2, for NXT and Indigo built after July 2015	K00454
17	Thumbscrew SS - #8-32 x 0.375"	5004799
17a	O-Ring - 0.125" ID	5004629
18	Screw - #12-16 x 0.75"	5012319
19	Water Pump Mount	000008028
20	Water Pump Base O-Ring - 4.00" ID	5004659
21	Water Pump Outlet O-Ring - 0.875" ID	5004679
22	Screw - #10-24 x 0.5" HEX	5202069
23	Washer, water pump to pump mount	000002476
24	Evaporator Top Filler Covers	000002176
25	Evaporator Right/Left Filler Panels	2097
26	Evaporator Top Frame Assembly, includes to frame disks and hex huts	000002786
27	Evaporator Bottom Frame Assembly	000002787
27a	Hex Nut - #8-32 Brass	5429139
27b	Evaporator Bottom Frame Covers	000001416

SI.# 1a

NameEvaporator - Dice Cube 2783

SI.# 1b

NameEvaporator - Half Dice Cube 2784

SI.# 2a

NameWater Pump - 115V/60 Hz 000013435

SI.# 2b

NameWater Pump - 230V/50-60 Hz 13434

SI.# 3

NameWater Level Probe, Includes Probe and wire 000016053

SI.# 3a

NameWater Level Probe - Holder 000007053

SI.# 3b

NameMounting Bracket Plastic 000008027

SI.# 3c

NameMounting Bracket Metal 13077

SI.# 3d

NameWire - Control Box to Water Level Probe 000007724

SI.# 3e

NameScrew - #10-24 x 0.5" PHIL 5202099

SI.# 4

NameIce Thickness Control Probe 000015292

SI.# 5

NameSplash Shield Assembly 15002

SI.# 6a

NameDump Valve Mounting Bracket 000001911

SI.# 8

NameWater Distribution Tube - 30" 7602193

SI.# 8a

NameBarbed Fitting 000001986

SI.# 8b

NameSnap Clamp - 1.0" ID 5650609

SI.# 8c

NameSnap Clamp - 1.123 x 1.296 5650539

SI.# 8d

NameFitting, through bulkhead 4014693

SI.# 8e

NameFitting Bracket 000013064

SI.# 8f

NameO-Rings - 0.675" 5004649

SI.# 9

NameMolded Vinyl Tube, Left Hand Distribution Tube 000001117

SI.# 9a

NameMolded Vinyl Tube 1155

SI.# 10

NameIce Damper Assembly 2056

SI.# 11

NameMagnetic Bin Switch 000001756

SI.# 11a

NameBin Switch Wiring Hanress 000014039

SI.# 11b

NameBin Switch Covers 000001421

SI.# 12

NameWater Trough - Dual 000014343

SI.# 13

NameFront Panel Mount - Hinged Panel Only 17380

SI.# 13a

NameThumbscrew - #8-32 x 0.375" 5000013

SI.# 16

NameLuminIce II Bulb, Gen 2, for NXT and Indigo built after July 2015 K00454

SI.# 17

NameThumbscrew SS - #8-32 x 0.375" 5004799

SI.# 17a

NameO-Ring - 0.125" ID 5004629

SI.# 18

NameScrew - #12-16 x 0.75" 5012319

SI.# 19

NameWater Pump Mount 000008028

SI.# 20

NameWater Pump Base O-Ring - 4.00" ID 5004659

SI.# 21

NameWater Pump Outlet O-Ring - 0.875" ID 5004679

SI.# 22

NameScrew - #10-24 x 0.5" HEX 5202069

SI.# 23

NameWasher, water pump to pump mount 000002476

SI.# 24

NameEvaporator Top Filler Covers 000002176

SI.# 25

NameEvaporator Right/Left Filler Panels 2097

SI.# 26

NameEvaporator Top Frame Assembly, includes to frame disks and hex huts 000002786

SI.# 27

NameEvaporator Bottom Frame Assembly 000002787

SI.# 27a

NameHex Nut - #8-32 Brass 5429139

SI.# 27b

NameEvaporator Bottom Frame Covers 000001416
