IT1500 Panels

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock
Model
IT1500 Panels
Add to Wish List
LookBook product items

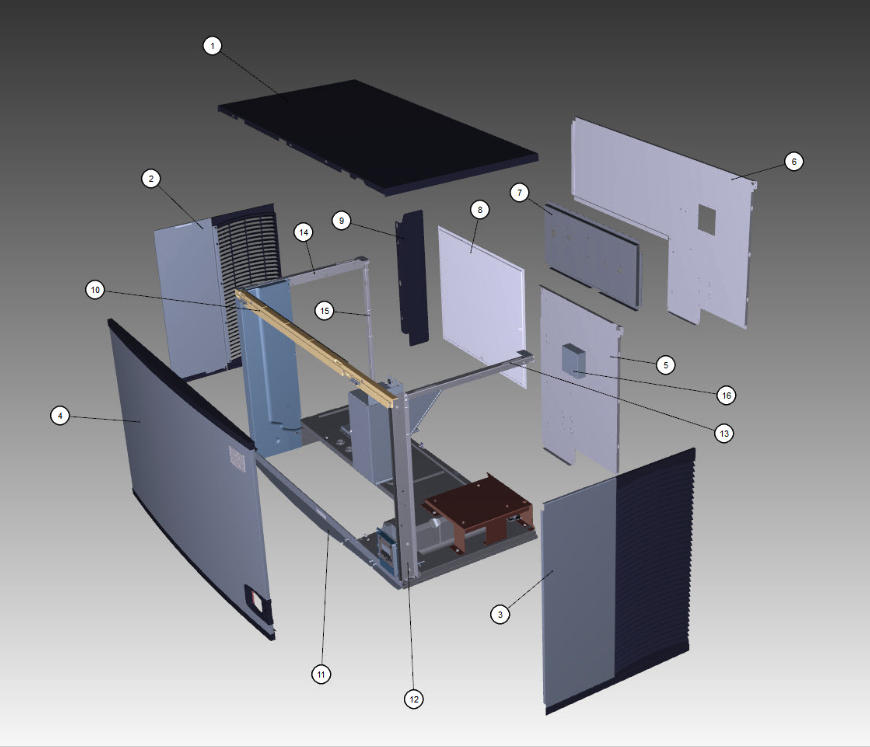

SI.# Name Part#
1 Top Cover Top Cover 000008537
1a Bracket Bracket 000009932
2 Left Side Panel - 29.5" H Left Side Panel - 29.5" H 000012620
2aLeft Side Panel - 29.5" H - SS Left Side Panel - 29.5" H - SS 040005625
3Right Side Panel - 29.5" H Right Side Panel - 29.5" H 000012619
3aRight Side Panel - 29.5" H - SS Right Side Panel - 29.5" H - SS 040005624
4Front Panel Assembly - 48" x 29.5" Front Panel Assembly - 48" x 29.5" 000015671
4aFront Panel Assembly - 48" x 29.5" - SS Front Panel Assembly - 48" x 29.5" - SS 040008051
4bTop Endcap Top Endcap 000008082
4cBottom Endcap Bottom Endcap 000008083
4dFront Panel Screw Front Panel Screw 5004899
4eFoam Tape - 0.375" x 0.375" x 12.0" Foam Tape - 0.375" x 0.375" x 12.0" 000009024
5Back Panel with Electrical Connection Box, Air-cooled Models Back Panel with Electrical Connection Box, Air-cooled Models 8267
6Back Panel - Water/Remote Back Panel - Water/Remote 14170
7Coupling Panel Coupling Panel 13721
8aAir Filter - 25.75" x 21.25" IT1500 and IT1500-E Air Filter - 25.75" x 21.25" IT1500 and IT1500-E 4040243
8bAir Filter - 25.75" x 25.25" IT1500-A Air Filter - 25.75" x 25.25" IT1500-A 4040253
9Air Baffle Assembly Air Baffle Assembly 8266
10Front Top Support Front Top Support 000010052
10bScrew - #10-16 x 0.625" Screw - #10-16 x 0.625" 5005099
11Bottom Panel Frame Bottom Panel Frame 000008978
11aMounting Screw - #8-32 x 1.0" PHIL Mounting Screw - #8-32 x 1.0" PHIL 5005379
11bScrew - #10-24 x 0.5" PHIL Screw - #10-24 x 0.5" PHIL 5202099
11cTapping Plate - Panel Hinge Screws Tapping Plate - Panel Hinge Screws 1127
12Right Corner Post Right Corner Post 11335
13Right Top Channel Right Top Channel 11032
14Left Top Channel Left Top Channel 6068649
15Left Corner Post Left Corner Post 11504
16aRear Connection Box Rear Connection Box 6067289
16bCover - Rear Connection Box Cover - Rear Connection Box 6067299
16cTerminal Block - 50 Hz - 3 Pole Terminal Block - 50 Hz - 3 Pole 2006143
16dScrew - #10-24 x 0.5" Ground Screw - #10-24 x 0.5" Ground 5202169
17Front Panel Mounting Bracket - Mounts Non-Hinged Panel Front Panel Mounting Bracket - Mounts Non-Hinged Panel 000011137
17aMounting Screw - #8-32 x 0.5" PHIL Mounting Screw - #8-32 x 0.5" PHIL 5026739
18aFront Panel LCD Frame With Key Guard Front Panel LCD Frame With Key Guard 000008090
18bFront Panel LCD Frame Without Key Guard Front Panel LCD Frame Without Key Guard 000008089
19Top Air Discharge Kit, NXT I1500 & I1900, 48"W x 29.5"H Top Air Discharge Kit, NXT I1500 & I1900, 48"W x 29.5"H K00481 B MANITOWOC
20Cartoning Cartoning 7112479
SI.# 1
Top Cover
NameTop Cover 000008537
SI.# 1a
Bracket
NameBracket 000009932
SI.# 2
Left Side Panel - 29.5" H
NameLeft Side Panel - 29.5" H 000012620
SI.# 2a
Left Side Panel - 29.5" H - SS
NameLeft Side Panel - 29.5" H - SS 040005625
SI.# 3
Right Side Panel - 29.5" H
NameRight Side Panel - 29.5" H 000012619
SI.# 3a
Right Side Panel - 29.5" H - SS
NameRight Side Panel - 29.5" H - SS 040005624
SI.# 4
Front Panel Assembly - 48" x 29.5"
NameFront Panel Assembly - 48" x 29.5" 000015671
SI.# 4a
Front Panel Assembly - 48" x 29.5" - SS
NameFront Panel Assembly - 48" x 29.5" - SS 040008051
SI.# 4b
Top Endcap
NameTop Endcap 000008082
SI.# 4c
Bottom Endcap
NameBottom Endcap 000008083
SI.# 4d
Front Panel Screw
NameFront Panel Screw 5004899
SI.# 4e
Foam Tape - 0.375" x 0.375" x 12.0"
NameFoam Tape - 0.375" x 0.375" x 12.0" 000009024
SI.# 5
Back Panel with Electrical Connection Box, Air-cooled Models
NameBack Panel with Electrical Connection Box, Air-cooled Models 8267
SI.# 6
Back Panel - Water/Remote
NameBack Panel - Water/Remote 14170
SI.# 7
Coupling Panel
NameCoupling Panel 13721
SI.# 8a
Air Filter - 25.75" x 21.25" IT1500 and IT1500-E
NameAir Filter - 25.75" x 21.25" IT1500 and IT1500-E 4040243
SI.# 8b
Air Filter - 25.75" x 25.25" IT1500-A
NameAir Filter - 25.75" x 25.25" IT1500-A 4040253
SI.# 9
Air Baffle Assembly
NameAir Baffle Assembly 8266
SI.# 10
Front Top Support
NameFront Top Support 000010052
SI.# 10b
Screw - #10-16 x 0.625"
NameScrew - #10-16 x 0.625" 5005099
SI.# 11
Bottom Panel Frame
NameBottom Panel Frame 000008978
SI.# 11a
Mounting Screw - #8-32 x 1.0" PHIL
NameMounting Screw - #8-32 x 1.0" PHIL 5005379
SI.# 11b
Screw - #10-24 x 0.5" PHIL
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 11c
Tapping Plate - Panel Hinge Screws
NameTapping Plate - Panel Hinge Screws 1127
SI.# 12
Right Corner Post
NameRight Corner Post 11335
SI.# 13
Right Top Channel
NameRight Top Channel 11032
SI.# 14
Left Top Channel
NameLeft Top Channel 6068649
SI.# 15
Left Corner Post
NameLeft Corner Post 11504
SI.# 16a
Rear Connection Box
NameRear Connection Box 6067289
SI.# 16b
Cover - Rear Connection Box
NameCover - Rear Connection Box 6067299
SI.# 16c
Terminal Block - 50 Hz - 3 Pole
NameTerminal Block - 50 Hz - 3 Pole 2006143
SI.# 16d
Screw - #10-24 x 0.5" Ground
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 17
Front Panel Mounting Bracket - Mounts Non-Hinged Panel
NameFront Panel Mounting Bracket - Mounts Non-Hinged Panel 000011137
SI.# 17a
Mounting Screw - #8-32 x 0.5" PHIL
NameMounting Screw - #8-32 x 0.5" PHIL 5026739
SI.# 18a
Front Panel LCD Frame With Key Guard
NameFront Panel LCD Frame With Key Guard 000008090
SI.# 18b
Front Panel LCD Frame Without Key Guard
NameFront Panel LCD Frame Without Key Guard 000008089
SI.# 19
Top Air Discharge Kit, NXT I1500 & I1900, 48"W x 29.5"H
NameTop Air Discharge Kit, NXT I1500 & I1900, 48"W x 29.5"H K00481 B MANITOWOC
SI.# 20
Cartoning
NameCartoning 7112479
More Information
SKUIT1500 Panels
