JCT1200 REMOTE CONDENSER
JCT1200 REMOTE CONDENSER
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
JCT1200 REMOTE CONDENSER

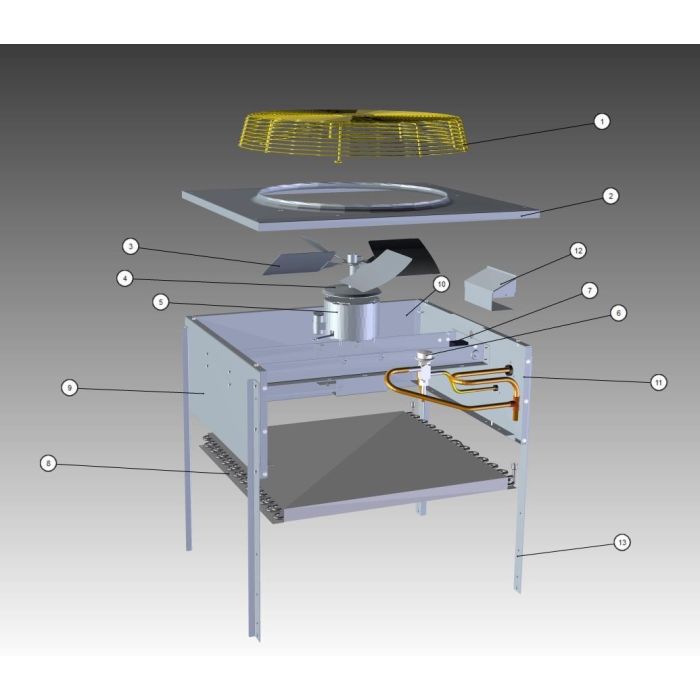

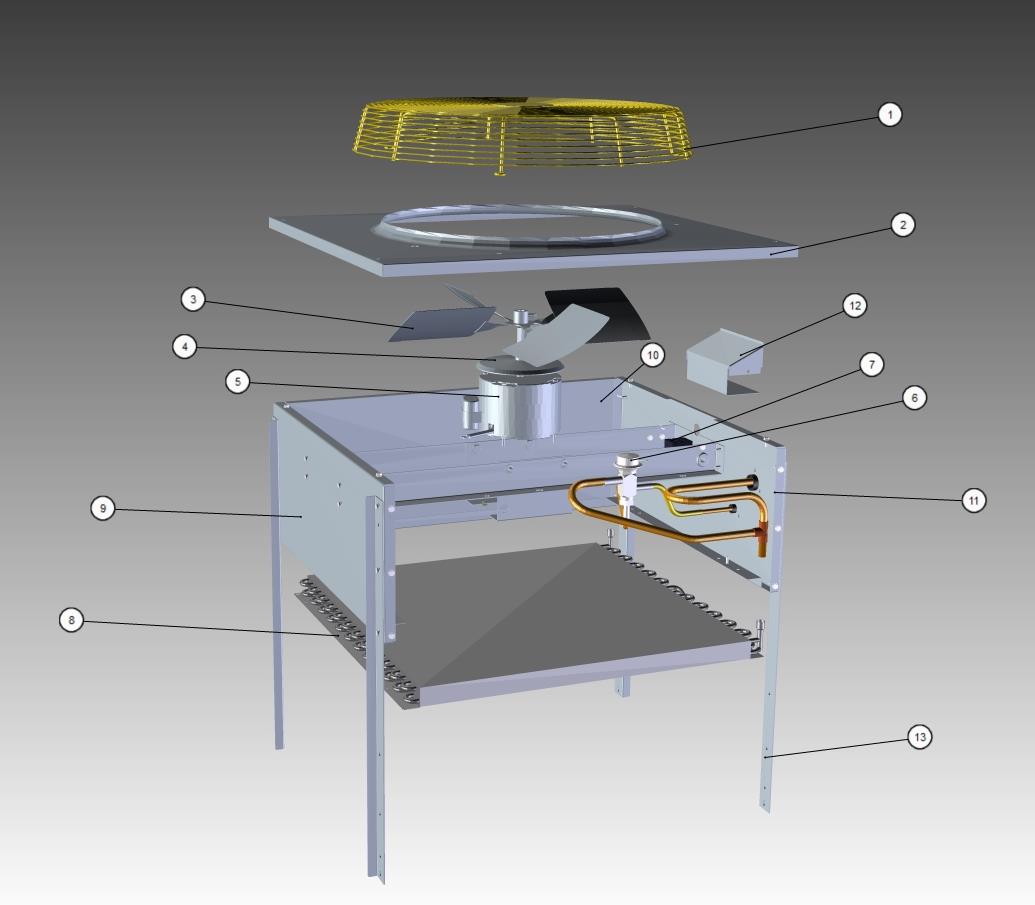

SI.# 1
NameFan Guard 3400643
SI.# 2
NameTop Cover 6017751
SI.# 3
NameFan Blade CVDT1200 Condensing Unit - Refrigeration Components 2416113
SI.# 4
NameRain Slinger 2415053
SI.# 5
NameFan Motor - 208-230V/50-60 Hz/1 Ph 7629413
SI.# 5a
NameFan Motor Mounting Bracket - Support 000010947
SI.# 6
NameHead Pressure Control Valve - 300 PSI 000008870
SI.# 7
NameTerminal Block - 3 Pole 000008040
SI.# 8
NameAir Condenser 8850629
SI.# 8a
NameAir Condenser - Coated 8850627
SI.# 9
NamePanel - Front 000000607
SI.# 10
NamePanel - Side 000010865
SI.# 11
NamePanel - Rear 000000608
SI.# 12
NameElectrical Box Cover JC1395 Remote Condenser Components 6017761
SI.# 13
NameLegs 000010873
SI.# 13a
NameFan Motor Mounting Bracket and Bottom Bracket for Legs 000010917
SI.# 13b
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 14
NameFan Motor Mounting Screw 5035659
SI.# 14a
NameMounting - Flatwasher 5573099
SI.# 14b
NameLockwasher FTA290 / FSA291 - Motor Components 5573139
SI.# 14c
NameHexnut 5429759
SI.# 15
NameScrew - 0.25" - 20 x 0.625" 5033459
SI.# 15a
NameFlatwasher 5573049
SI.# 15b
NameMounting - Lockwasher 5545119
SI.# 15c
NameMounting - Hexnut 5429529
SI.# 16
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 17
NameStraing Relief Bushing 2512033
SI.# 18
NameBushing - 0.625" 2502189
SI.# 19
NameStar Washer 5573209
SI.# 20
NameCoupling Male - 0.625" - 18 8360343
SI.# 20a
NameCoupling Mounting Flange for 0.625" - 18 8360053
SI.# 21
NameCoupling - Male - 1.17" - 12 8360353
SI.# 21a
NameCoupling Mounting Flange for 1.17" - 12 8360063
SI.# 22
NameFemale Line Set Coupling Kit K00129
SI.# 23
NameCartoning 7108369
| SKU | JCT1200 REMOTE CONDENSER |
|---|
