Model
K0170 AIR COOLED COMPONENTS

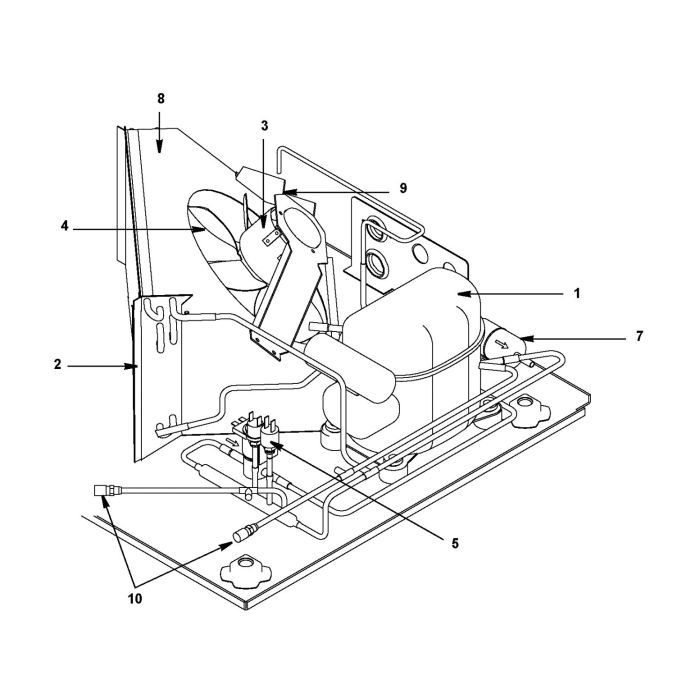

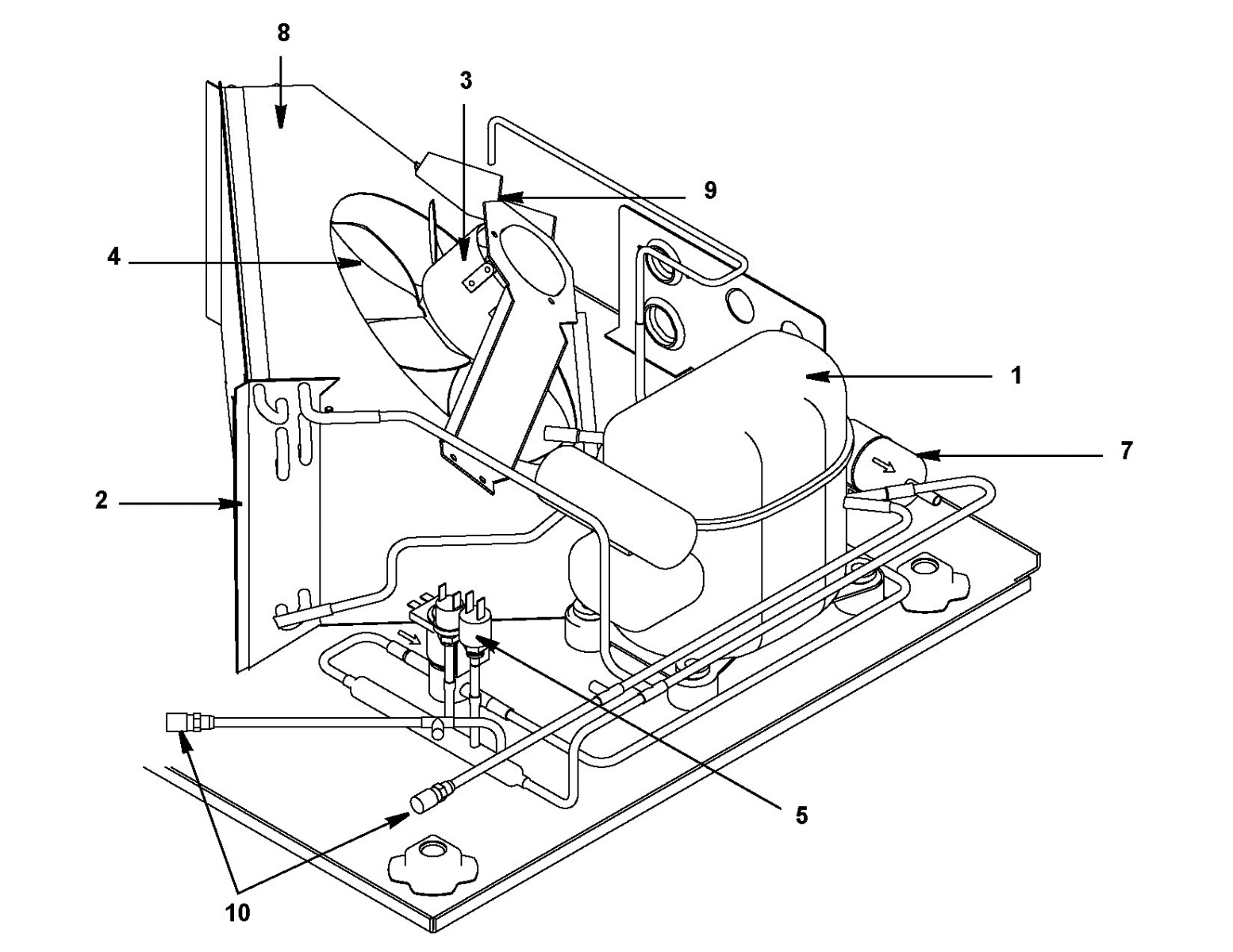

| SI.# | Name | Part# |
|---|---|---|
| 2 |  | 8851373 |
| 3a | | 40005737 |
| 3b | | 2000219 |
| 3c | | 5005513 |
| 4 |  | 3005659 |
| 5 |  | 000013509 |
| 6 | | 040003916 |
| 7 |  Drier, with Access Port- 0.25" IP0500 R290 Models | 8930259 |
| 8 | | 6026851 |
| 9 |  | 000010922 |
| 9a |  | 5202069 |
| 10 |  | 8373253 |
| 10a |  | 7626843 |
| 11 | | 5475079 |
SI.# 2
NameAir Condenser 8851373
SI.# 3a
NameFan Motor - 115V/60 Hz 40005737
SI.# 3b
NameFan Motor - 208-230V/50-60 Hz 2000219
SI.# 3c
NameNut - M4 x 0.7 mm 5005513
SI.# 4
NameFan Blade UE0080 UE0065 K150 K170 QM 3005659
SI.# 5
NameFan Cycling Control - 225-275 psig 000013509
SI.# 6
NameAir Filter - 11.37" x 7.75" 040003916
SI.# 7
NameDrier, with Access Port- 0.25" IP0500 R290 Models 8930259
SI.# 8
NameFan Shroud 6026851
SI.# 9
NameFan Motor Bracket 000010922
SI.# 9a
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 10
NameAccess Valve 8373253
SI.# 10a
NameValve Cores, Schrader style 7626843
SI.# 11
NameSpeed Nut - 0.25" x 20 5475079
