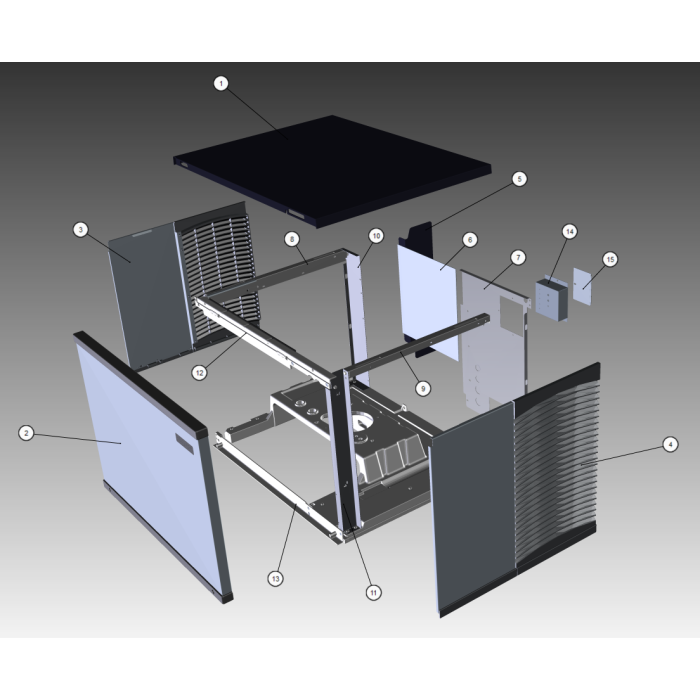

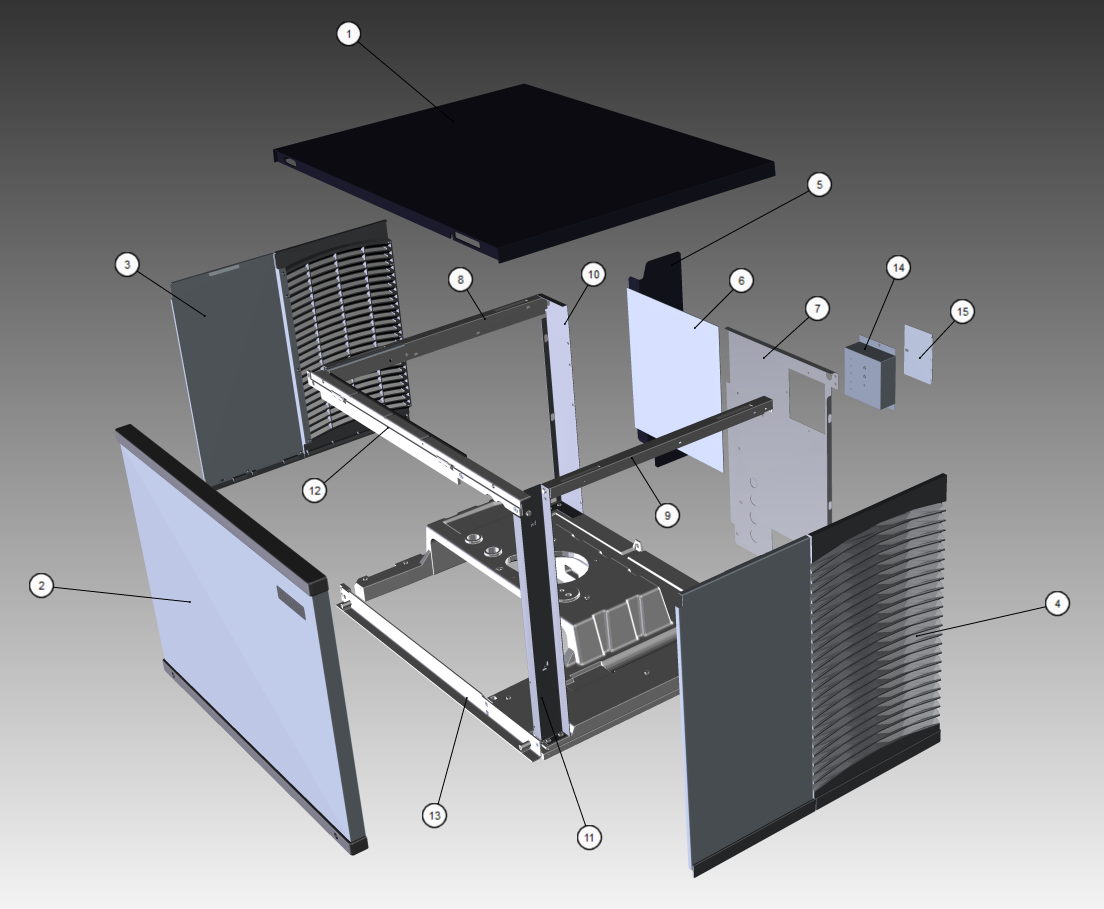

K0250 PANELS
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000010523 |
| 2 | | 000012139 |
| 2a | | 000010600 |
| 2b | | 000010293 |
| 2c |  Screw - #8-32 x 0.875" | 000008023 |
| 3 | | 000011272 |
| 4 | | 000011271 |
| 5 | | 000007314 |
| 6 |  | 3005699 |
| 7 | | 000010670 |
| 8 | | 6068649 |
| 9 | | 000011032 |
| 10 | | 000011329 |
| 11 | | 000011326 |
| 12 | | 000010269 |
| 13 | | 000010268 |
| 13a | | 000001127 |
| 14 |  | 6067289 |
| 15 | | 6067299 |
| 16 |  | 2006143 |
| 17 |  Screw - #10-24 x 0.5" Ground | 5202169 |
| 18 |  | 5005099 |
| 19 |  | 8706083 |
| 20 |  | 5202099 |
| 21 | | 000012225 |
SI.# 1
NameTop Cover 000010523
SI.# 2
NameFront Panel 000012139
SI.# 2a
NameDoor - Drip Lip 000010600
SI.# 2b
NameFront Panel Mounting Brackets 000010293
SI.# 2c
NameScrew - #8-32 x 0.875" 000008023
SI.# 3
NameLeft Side Panel 000011272
SI.# 4
NameRight Side Panel 000011271
SI.# 5
NameAir Baffle Assembly 000007314
SI.# 6
NameAir Filter - 14.0" x 12.78" 3005699
SI.# 7
NameBack Panel - Air-cooled 000010670
SI.# 8
NameLeft Top Channel 6068649
SI.# 9
NameRight Top Channel 000011032
SI.# 10
NameLeft Corner Post 000011329
SI.# 11
NameRight Corner Post 000011326
SI.# 12
NameFront Top Support 000010269
SI.# 13
NameBottom Door Frame 000010268
SI.# 13a
NameTapping Plate - Panel Hinge Screws 000001127
SI.# 14
NameRear Connection Box 6067289
SI.# 15
NameCover - Rear Connection Box 6067299
SI.# 16
NameTerminal Block - 50 Hz - 3 Pole 2006143
SI.# 17
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 18
NameScrew - #10-16 x 0.625" 5005099
SI.# 19
NameAdapter 3/8 Npt X 3/8 ODF 8706083
SI.# 20
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 21
NameCartoning 000012225
| SKU | K0250 PANELS |
|---|
