K0350 CONTROL BOX COMPONENTS

LookBook product items

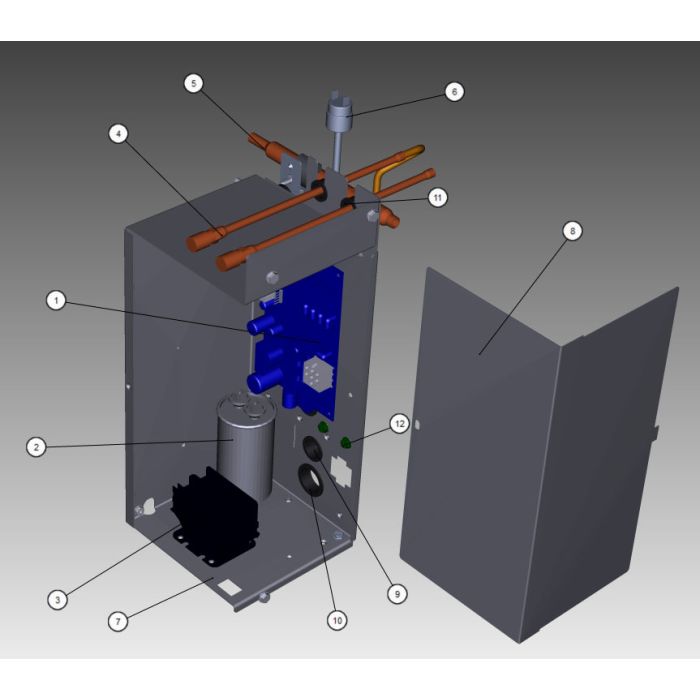

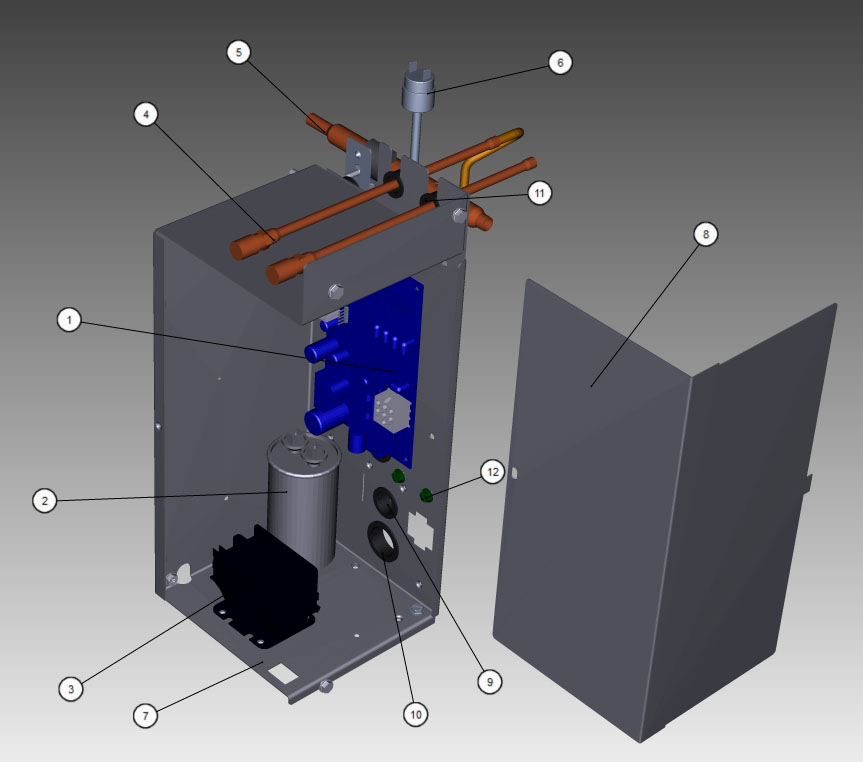

SI.#	Name	Part#
1	Control Board Assembly	000015302
1a	Fuse - 3.15A	000015010
1b	Control Board Mounting Supports	4302253
2a	Run Capacitor - 115-230V/50-60 Hz/1 Ph	000010708
2b	Run Capacitor - 230V/50-60 Hz/1 Ph	000010715
2c	Run Capacitor - 230V/50-60 Hz/1 Ph	000011640
2d	Bracket - Run Capacitor	000010711
3a	Contactor - 115V/60 Hz/1 Ph	2006589
3b	Contactor - 230V/50-60 Hz/1 Ph	2006599
4	VALVE, ACCESS with Schrader	8373263
4a	Valve Cores, Schrader style	7626843
5	Manifold Strainer	000011170
5a	Bracket - Access Valves/Manifold Strainer	6058571
6	High Pressure Cut-out	000013576
7	Control Box	000010617
8	Control Box Cover	000012138
9	Bushing - 0.875"	2501409
10	Bushing - 1.187"	2500019
11	Bushing - 0.625"	2502189
12	Screw - #10-24 x 0.5" Ground	5202169
13a	Overload Protector - 115V/60 Hz/1 Ph	000011142
13b	Overload Protector - 230V/60 Hz/1 Ph	000011143
13c	Overload Protector - Bracket	000010853
14	Toggle Switch	2007939
14a	Wiring Harness - Toggle Switch	000010724
15	Fan Cycling Control - 335-275 psig	000013531
16	Screw - #10-24 x 0.5" HEX	5202069
17	Star Washer	5573209
18a	Control Box Wiring Harness - 115V/60 Hz/1 Ph	000010264
18b	Control Box Wiring Harness - 115V/60 Hz/1 Ph	000013969
18c	Control Box Wiring Harness - 230V/60 Hz/1 Ph	000010265
18d	Control Box Wiring Harness - 230V/60 Hz/1 Ph	000013971
19a	Wiring Harness - Compressor Compartment - Air-cooled	000007185
19b	Wiring Harness - Compressor Compartment - Water-cooled	000007177
20	Wiring Harness - Compressor - Samsung	000011182
21	Wiring Harness - Float Switch to Control Box	000010511
22	PTCR - 12A	000014323
