Model
KT0400 PANELS

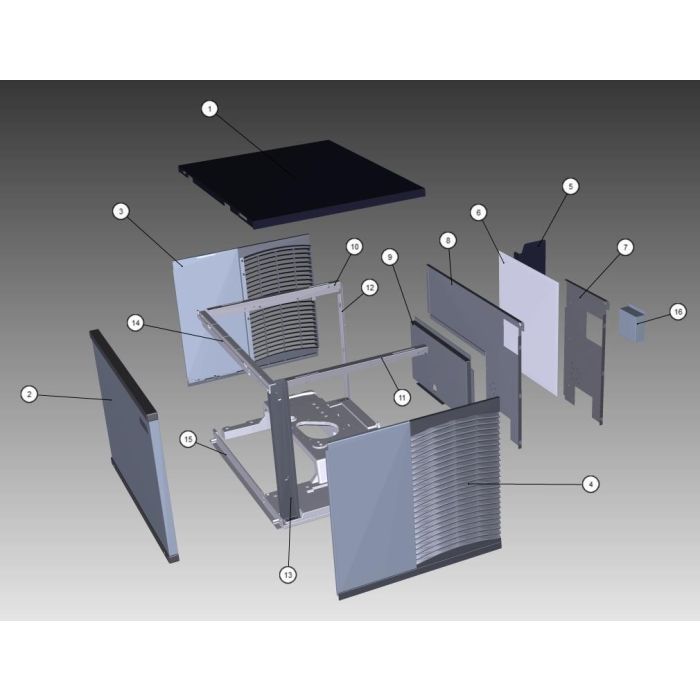

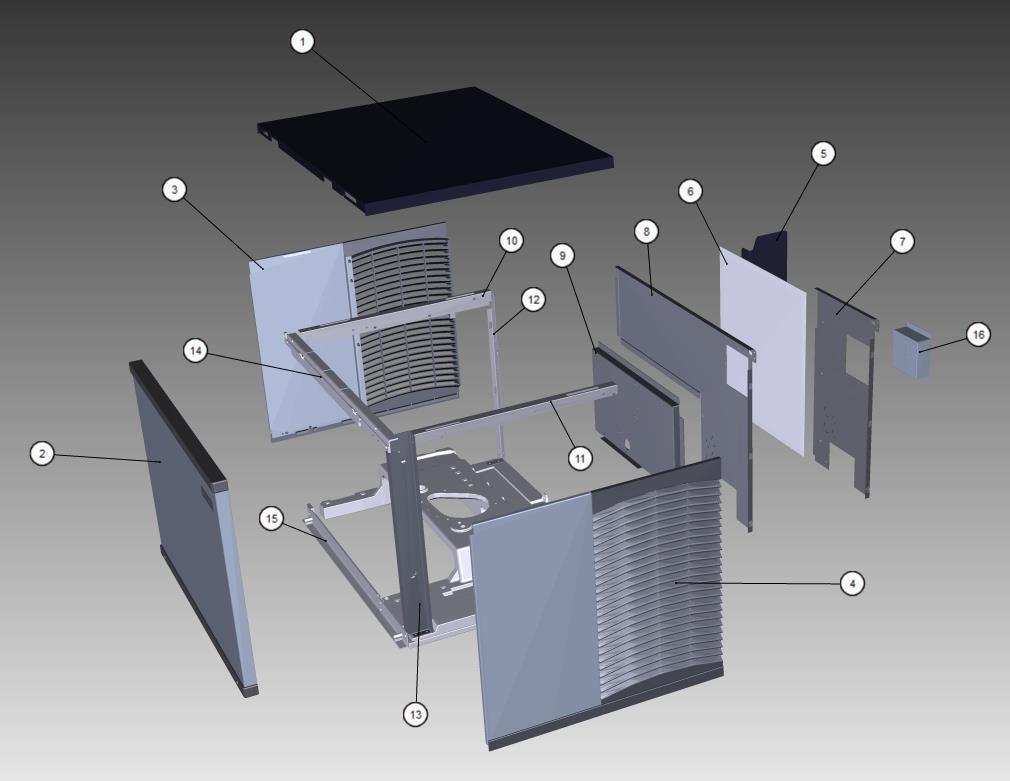

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000010523 |
| 2 | | 000012139 |
| 2a | | 000010600 |
| 2b | | 000010293 |
| 2c |  Screw - #8-32 x 0.875" | 000008023 |
| 3 | | 000011272 |
| 4 | | 000011271 |
| 5 | | 000007314 |
| 6 | | 3005569 |
| 7 | | 000012033 |
| 8 | | 000011092 |
| 9 | | 000010603 |
| 10 | | 6068649 |
| 11 | | 000011032 |
| 12 | | 000011100 |
| 13 | | 000011326 |
| 14 | | 000010269 |
| 15 | | 000010268 |
| 15a | | 000001127 |
| 16 | | 6067289 |
| 16a | | 6067299 |
| 17 | | 000012225 |
SI.# 1
Name Top Cover 000010523
SI.# 2
Name Front Panel 000012139
SI.# 2a
Name Door - Drip Lip 000010600
SI.# 2b
Name Front Panel Mounting Brackets 000010293
SI.# 2c
Name Screw - #8-32 x 0.875" 000008023
SI.# 3
Name Left Side Panel 000011272
SI.# 4
Name Right Side Panel 000011271
SI.# 5
Name Air Baffle Assembly 000007314
SI.# 6
Name Air Filter - 14.29" x 16.94" 3005569
SI.# 7
Name Back Panel - Air-cooled 000012033
SI.# 8
Name Back Panel - Water-cooled and Remote Air-cooled 000011092
SI.# 9
Name Back Coupling Panel - Water-cooled/Remote 000010603
SI.# 10
Name Left Top Channel 6068649
SI.# 11
Name Right Top Channel 000011032
SI.# 12
Name Left Corner Post 000011100
SI.# 13
Name Right Corner Post 000011326
SI.# 14
Name Front Top Support 000010269
SI.# 15
Name Bottom Door Frame 000010268
SI.# 15a
Name Tapping Plate - Panel Hinge Screws 000001127
SI.# 16
Name Rear Connection Box 6067289
SI.# 16a
Name Cover - Rear Connection Box 6067299
SI.# 17
Name Cartoning 000012225
| SKU | KT0400 PANELS |
|---|
