KT1000 AIR COOLED COMPONENTS
KT1000 AIR COOLED COMPONENTS
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model

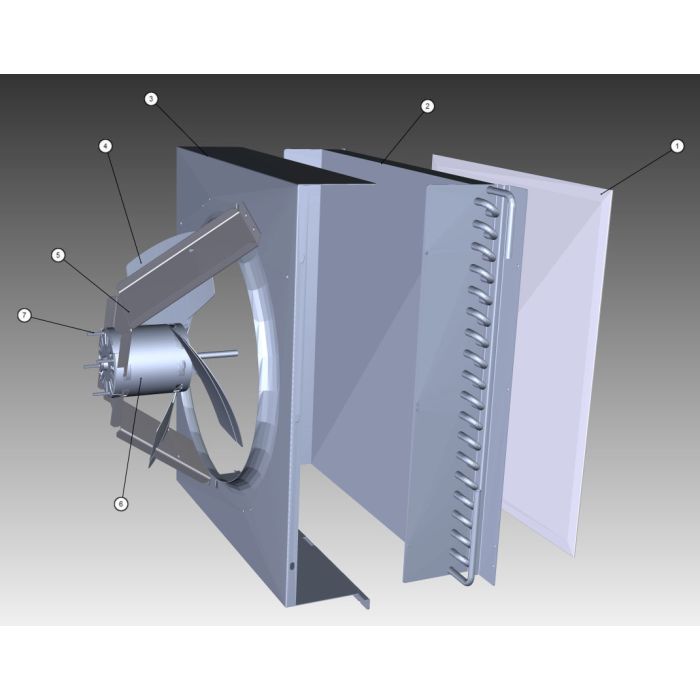

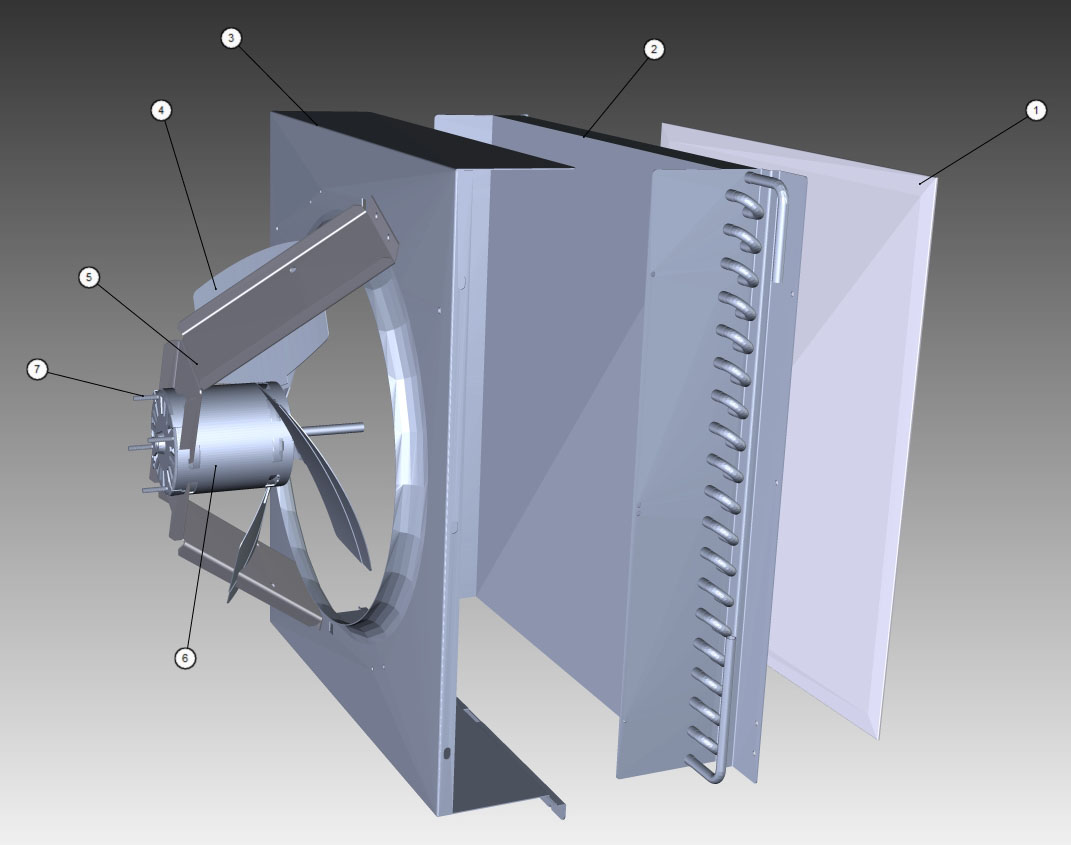

KT1000 AIR COOLED COMPONENTS
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 3005559 |
| 2a |  | 000008867 |
| 2b |  | 000011691 |
| 3 | | 000010727 |
| 4 |  | 2416123 |
| 5 |  | 3006843 |
| 6 |  | 7626723 |
| 7a |  | 5033589 |
| 7b | | 000000936 |
| 8 |  Screw - #10-24 x 0.5" HEX | 5202069 |
| 9 |  | 000013531 |
| 10 |  | 000007678 |
SI.# 1
NameAir Filter - 17.18" x 21.88" 3005559
SI.# 2a
NameAir Condenser 000008867
SI.# 2b
NameAir Condenser 000011691
SI.# 3
NameFan Shroud-60HZ 000010727
SI.# 4
NameFan Blade 2416123
SI.# 5
NameMounting Bracket - Fan Motor 3006843
SI.# 6
NameFan Motor - 200-230V/50-60 Hz 7626723
SI.# 7a
NameScrew Condensing Unit - Panels 5033589
SI.# 7b
NameMounting - Nut 000000936
SI.# 8
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 9
NameFan Cycling Control - 335-275 psig 000013531
SI.# 10
NameAir Baffle Assembly 000007678
| SKU | KT1000 AIR COOLED COMPONENTS |
|---|
