KT1000 PANELS
KT1000 PANELS
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
KT1000 PANELS

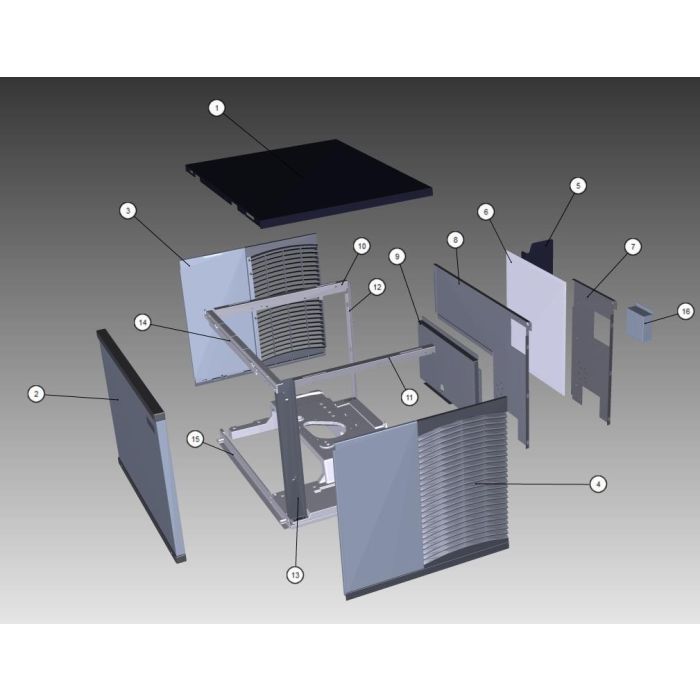

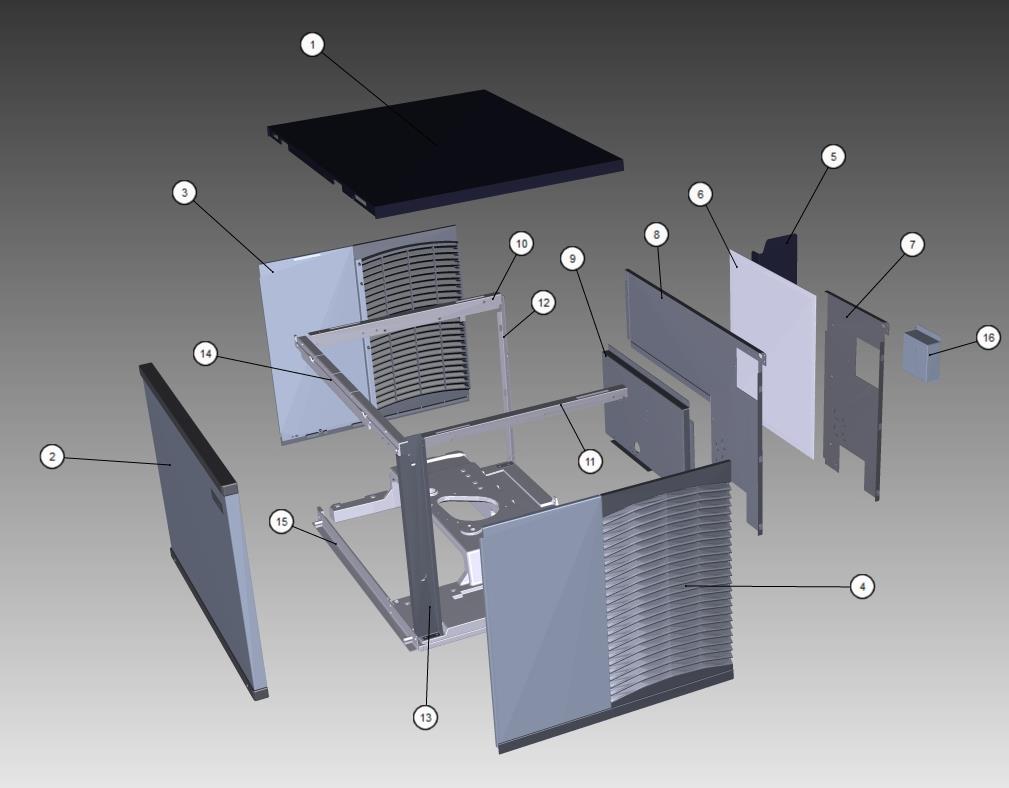

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000010523 |
| 2 | | 000012466 |
| 2a | | 000010600 |
| 2b | | 000010293 |
| 2c |  Screw - #8-32 x 0.875" | 000008023 |
| 2d | | 000010295 |
| 3 | | 000011597 |
| 4 | | 000011598 |
| 5 |  | 000007678 |
| 6 | | 3005559 |
| 7 | | 000010726 |
| 8 | | 000011150 |
| 9 | | 000014482 |
| 10 | | 6068649 |
| 11 | | 000011032 |
| 12 | | 000011504 |
| 13 | | 000011335 |
| 14 | | 000010269 |
| 15 | | 000010268 |
| 15a | | 000001127 |
| 16 | | 6067289 |
| 16a | | 6067299 |
| 18 |  | 2006143 |
| 19 | | 000012438 |
SI.# 1
Name Top Cover 000010523
SI.# 2
Name Front Panel 000012466
SI.# 2a
Name Door - Drip Lip 000010600
SI.# 2b
Name Front Panel Mounting Brackets 000010293
SI.# 2c
Name Screw - #8-32 x 0.875" 000008023
SI.# 2d
Name Door Seal 000010295
SI.# 3
Name Left Side Panel 000011597
SI.# 4
Name Right Side Panel 000011598
SI.# 5
Name Air Baffle Assembly 000007678
SI.# 6
Name Air Filter - 17.18" x 21.88" 3005559
SI.# 7
Name Back Panel - Air-cooled 000010726
SI.# 8
Name Back Panel - Water-cooled/Remote 000011150
SI.# 9
Name Back Coupling Panel - Water-cooled and Remote Air-cooled 000014482
SI.# 10
Name Left Top Channel 6068649
SI.# 11
Name Right Top Channel 000011032
SI.# 12
Name Left Corner Post 000011504
SI.# 13
Name Right Corner Post 000011335
SI.# 14
Name Front Top Support 000010269
SI.# 15
Name Bottom Door Frame 000010268
SI.# 15a
Name Tapping Plate - Panel Hinge Screws 000001127
SI.# 16
Name Rear Connection Box 6067289
SI.# 16a
Name Cover - Rear Connection Box 6067299
SI.# 18
Name Terminal Block - 50 Hz - 3 Pole 2006143
SI.# 19
Name Cartoning 000012438
| SKU | KT1000 PANELS |
|---|
