Model

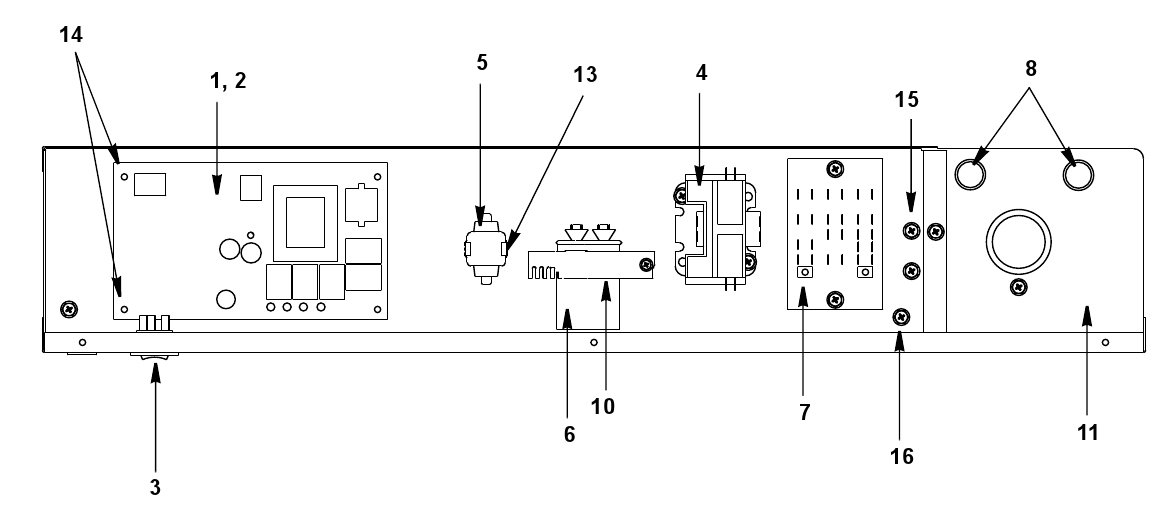

Q0280 - Control Box Components
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 7627823 |
| 2 |  | 2511003 |
| 3 |  | 2301343 |
| 3a |  | 2032173 |
| 4a |  | 2006569 |
| 4b | | 2006579 |
| 5 |  | 8505003 |
| 6 |  | 8504003 |
| 7a | | 2032823 |
| 7b | | 2032893 |
| 7c | | 2032833 |
| 8 |  | 8373263 |
| 8a | | 7626843 |
| 9 |  | 000013579 |
| 10 | | 6033131 |
| 11 | | 6051051 |
| 12 | | 7628053 |
| 13 |  | 8505023 |
| 14 |  | 4302253 |
| 15 |  Screw - #10-24 x 0.5" Ground | 5202169 |
| 16 |  | 5202069 |
SI.# 1
NameControl Board 7627823
SI.# 2
NameFuse - 7A 2511003
SI.# 3
NameToggle Switch Only 2301343
SI.# 3a
NameToggle Switch with Wiring Harness Attached 2032173
SI.# 4a
NameContactor - 115V/60 Hz/1 Ph UF0140 / UP0140 - Control Box Components 2006569
SI.# 4b
NameContactor - 230V/50-60 Hz/1 Ph UF0140 / UP0140 - Control Box Components 2006579
SI.# 5
NamePTCR - 10A 8505003
SI.# 6
NameRun Capacitor - 208-230V/50-60 Hz/1 Ph Q0280 - Control Box Components 8504003
SI.# 7a
NameWiring Harness - 115V/60 Hz/1 Ph 2032823
SI.# 7b
NameWiring Harness - 208-230V/60 Hz/1 Ph 2032893
SI.# 7c
NameWiring Harness - 208-230V/50 Hz/1 Ph 2032833
SI.# 8
NameVALVE, ACCESS 8373263
SI.# 8a
NameValve Cores 7626843
SI.# 9
NameSWITCH PRESSURE HPC NC 450/300 PS80 000013579
SI.# 10
NameCapacitor Bracket 6033131
SI.# 11
NameControl Box Q0280 - Control Box Components 6051051
SI.# 12
NameControl Box Cover Q0200 - Control Box Components 7628053
SI.# 13
NamePTCR Mounting Bracket 8505023
SI.# 14
NameControl Board Mounting Supports 4302253
SI.# 15
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 16
NameScrew - #10-24 x 0.5" HEX 5202069
| SKU | Q0280 - Control Box Components |
|---|
