Q0800 EVAPORATOR COMPONENTS
Q0800 EVAPORATOR COMPONENTS
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
Q0800 EVAPORATOR COMPONENTS

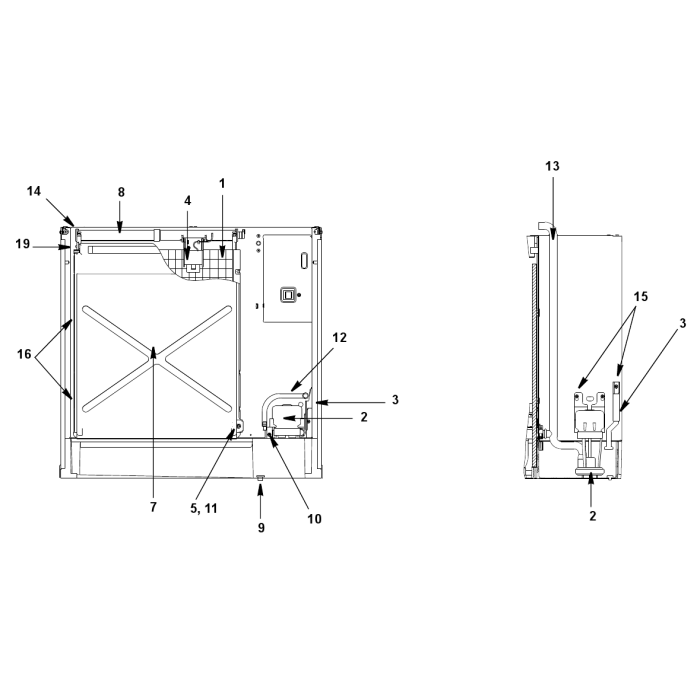

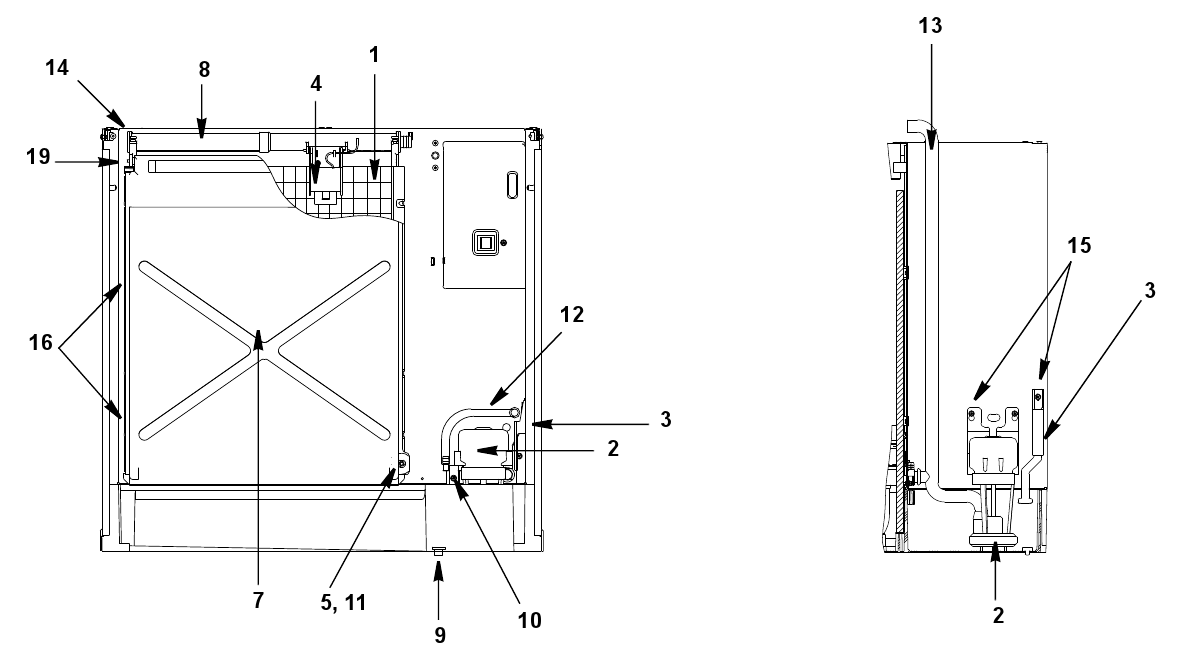

| SI.# | Name | Part# |
|---|---|---|
| 1a |  | 7624739 |
| 1b | | 7624729 |
| 1c | | 7624719 |
| 2a | | 7626013 |
| 2b | | 1480279 |
| 3 |  | 2511293 |
| 4 | | 7627813 |
| 5 |  Magnetic Bin Switch | 2301483 |
| 6 | | 7620543 |
| 7 | | 4008513 |
| 8 | | 7624983 |
| 9 | | 4300629 |
| 10 | | 4303883 |
| 11 |  | 7629093 |
| 12 | | 4421243 |
| 13 | | 4421143 |
| 14 |  Thumbscrew - #8-32 x 0.375" | 5000013 |
| 15 |  | 5202069 |
| 16 |  | 5202189 |
| 17 | | 7628063 |
| 18 | | 7626213 |
| 19 | | 7627763 |
| 0 | | 7628023 |
SI.# 1a
NameEvaporator - Regular Cube 7624739
SI.# 1b
NameEvaporator - Dice Cube 7624729
SI.# 1c
NameEvaporator - Half Dice Cube 7624719
SI.# 2a
NameWater Pump - 230V/50-60 Hz 7626013
SI.# 2b
NameWater Pump - 208-230V/50-60 Hz 1480279
SI.# 3
NameWater Level Probe 2511293
SI.# 4
NameIce Thickness Control Probe 7627813
SI.# 5
NameMagnetic Bin Switch 2301483
SI.# 6
NameWater Flow Clamp Use on Regular Cube Evap. Only 7620543
SI.# 7
NameWater Curtain 4008513
SI.# 8
NameWater Distribution Tube - B/J/Q/IB 7624983
SI.# 9
NameWater Trough Plug 4300629
SI.# 10
NameWater Inlet Flow Tube 4303883
SI.# 11
NameMagnet and Cap for Curtain Switch 7629093
SI.# 12
NameDrain Pump Vent Tube 4421243
SI.# 13
NameTubing 4421143
SI.# 14
NameThumbscrew - #8-32 x 0.375" 5000013
SI.# 15
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 16
NameScrew - #10-24 x 0.75" Evaporator Mounting - 5202189
SI.# 17
NameBase and Water Trough Repair Kit 7628063
SI.# 18
NameEvaporator Top Molding and Gasket Assembly 7626213
SI.# 19
NameWater Curtain Pin Assembly 7627763
SI.# 0
NameMagnet and Cap UE0080 / UP0080 - Evaporator Compartment 7628023
| SKU | Q0800 EVAPORATOR COMPONENTS |
|---|
