Q0800M CONTROL BOX COMPONENTS
Q0800M CONTROL BOX COMPONENTS
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model

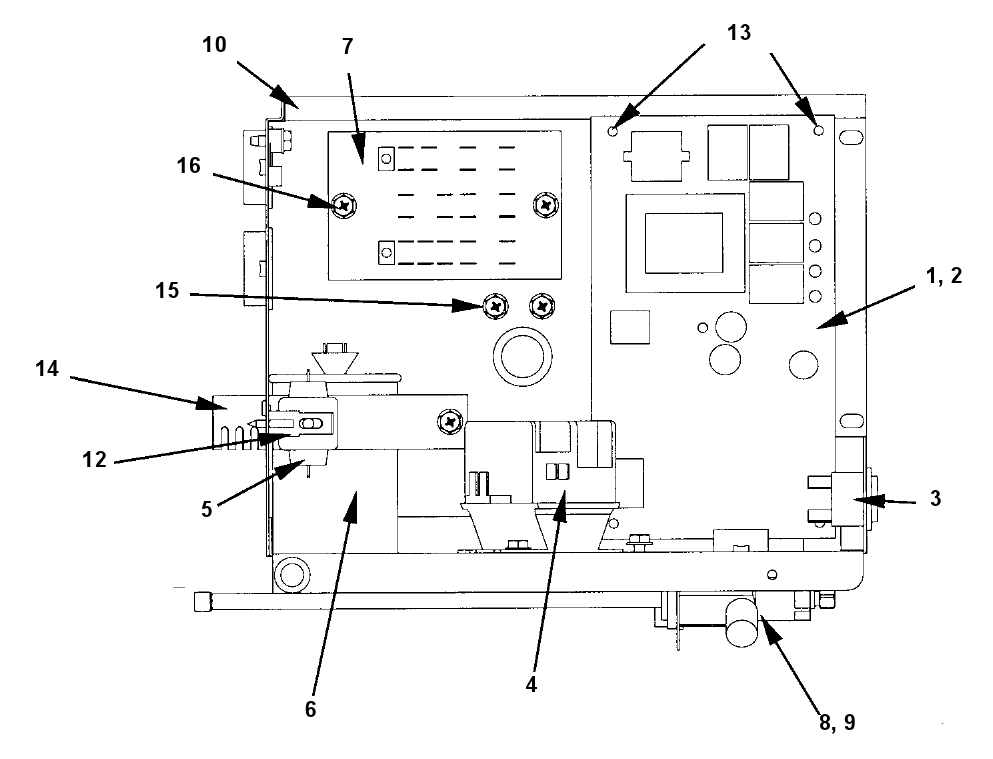

Q0800M CONTROL BOX COMPONENTS
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 7627823 |
| 2 |  | 2511003 |
| 3 |  | 2301343 |
| 3a |  | 2032173 |
| 4 |  | 2006599 |
| 5 |  | 8504993 |
| 6 |  | 2010133 |
| 7 |  | 2032293 |
| 8 |  | 8373263 |
| 8a |  | 7626843 |
| 9 | Locknut - 0.375" - 18 NPS | 5475039 |
| 10 | | 6025593 |
| 11 | | 7628523 |
| 12 |  | 8505013 |
| 13 |  | 4302253 |
| 14 | | 6024953 |
| 15 |  | 5202169 |
| 16 |  | 5202069 |
SI.# 1
NameControl Board 7627823
SI.# 2
NameFuse - 7A 2511003
SI.# 3
NameToggle Switch Only 2301343
SI.# 3a
NameToggle Switch with Wiring Harness Attached 2032173
SI.# 4
NameContactor - 230V/50-60 Hz/1 Ph 2006599
SI.# 5
NamePTCR - 18A 8504993
SI.# 6
NameRun Capacitor 2010133
SI.# 7
NameWiring Harness - 230V/60 Hz/1 Ph 2032293
SI.# 8
NameVALVE, ACCESS with Schrader 8373263
SI.# 8a
NameValve Cores, Schrader style 7626843
SI.# 9
NameLocknut - 0.375" - 18 NPS 5475039
SI.# 10
NameControl Box 6025593
SI.# 11
NameControl Box Cover 7628523
SI.# 12
NamePTCR Mounting Bracket 8505013
SI.# 13
NameControl Board Mounting Supports 4302253
SI.# 14
NameCapacitor Mounting Strap - USE UP 6024953
SI.# 15
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 16
NameScrew - #10-24 x 0.5" HEX 5202069
| SKU | Q0800M CONTROL BOX COMPONENTS |
|---|
