Q160 CABINET ASSEMBLY
Q160 CABINET ASSEMBLY
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model

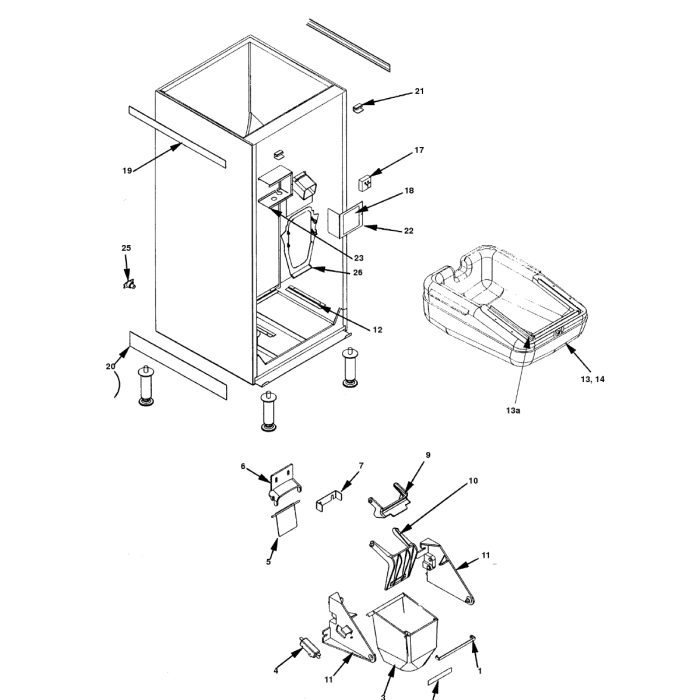

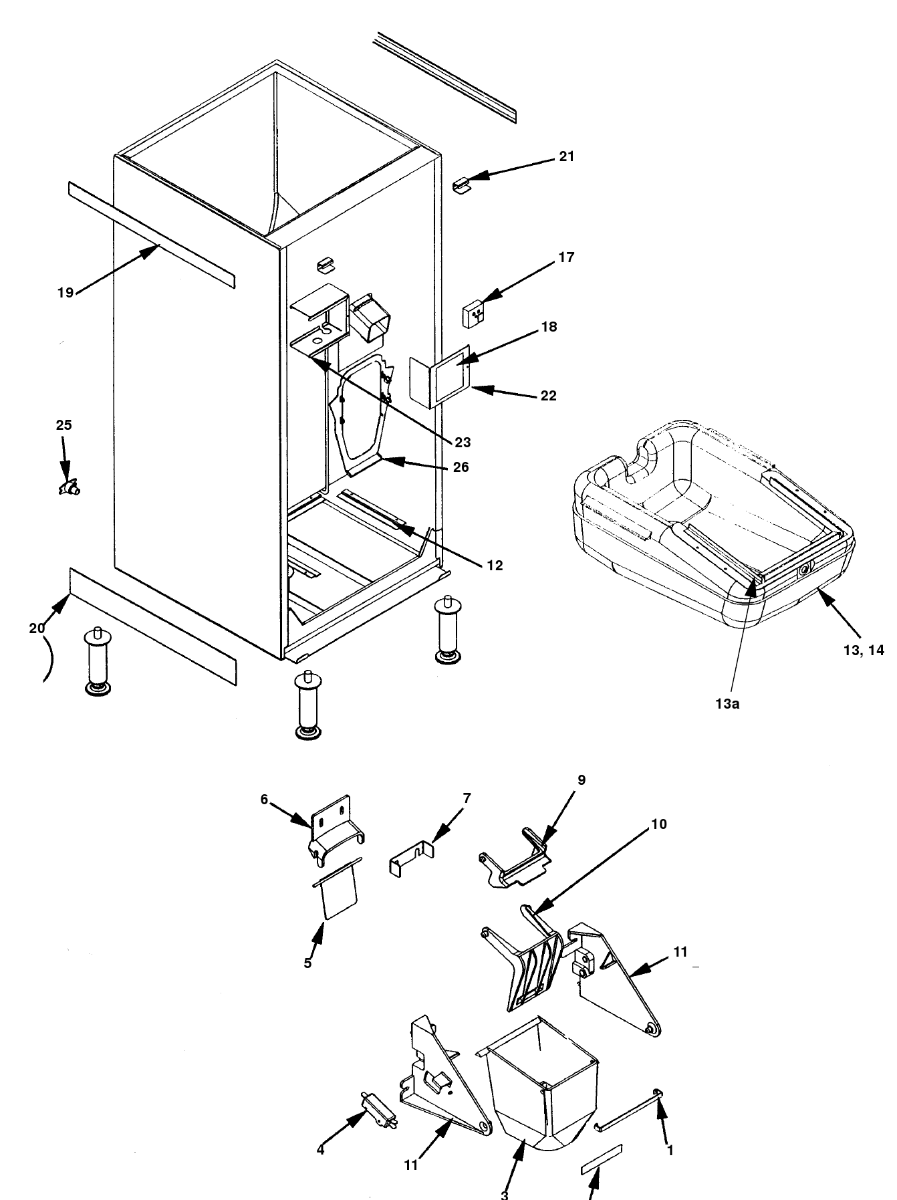

Q160 CABINET ASSEMBLY
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 5031384 |
| 2 | | 0301298 |
| 3 | | 5007355 |
| 4 | | 1000703 |
| 5 | | 020002334 |
| 6 | | 5007662 |
| 7 | | 5008112 |
| 8 | Screw - #8-32 x 0.5" Knurl | 5000711 |
| 9 | | 5002509 |
| 10 | | 5002508 |
| 11 | | 020002673 |
| 12 | | 5008820 |
| 14 | | 5010423 |
| 15 | | 5008162 |
| 16 | | 5013878 |
| 17 | | 020000222 |
| 18 | | 9750493 |
| 19 | | 5008154 |
| 22 | | 5008116 |
| 23 | | 5008115 |
| 24 | | 5008642 |
| 25 |  | 8706083 |
| 26 | | 5010220 |
| 27 | | 9202483 |
| 28 | | 5008131 |
| a | | 5029365 |
SI.# 1
NameOuter Bracket - Rocking Chute 5031384
SI.# 2
NameLabel - Push for Ice 0301298
SI.# 3
NameRocking Chute 5007355
SI.# 4
NameMicroswitch 1000703
SI.# 5
NameDoor Finger Guard 020002334
SI.# 6
NameRetainer Guard 5007662
SI.# 7
NameRetainer Door 5008112
SI.# 8
NameScrew - #8-32 x 0.5" Knurl 5000711
SI.# 9
NameRocking Chute - Door Lock 5002509
SI.# 10
NameRocking Chute - Door 5002508
SI.# 11
NameKit - Rocking Chute Brackets & Microswitch 020002673
SI.# 12
NameBracket Drainpan Support 5008820
SI.# 14
NameDrain Pan 5010423
SI.# 15
NameTubing Drain w/Insulation - USE UP 5008162
SI.# 16
NameDrain Strainer 5013878
SI.# 17
NameAgitation Timer 020000222
SI.# 18
NameLabel Wiring Diagram 9750493
SI.# 19
NameTrim Decorative Top 5008154
SI.# 22
NameElectrical Box Cover 5008116
SI.# 23
NameElectrical Box Cover Q160 Model Paddle Wheel - Cabinet Assembly 5008115
SI.# 24
NamePower Cord 5008642
SI.# 25
NameAdapter 3/8 Npt X 3/8 ODF 8706083
SI.# 26
NameMotor Pin Retaining Bracket 5010220
SI.# 27
NameSILICONE ALUMINUM 10.3 OZ NSF51 FDA APPR 9202483
SI.# 28
NameCartoning - 22" 5008131
SI.# a
NameDrain Pan Gasket 5029365
| SKU | Q160 CABINET ASSEMBLY |
|---|
