Q310 DOOR ASSEMBLY

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock

Model

Q310 DOOR ASSEMBLY

LookBook product items

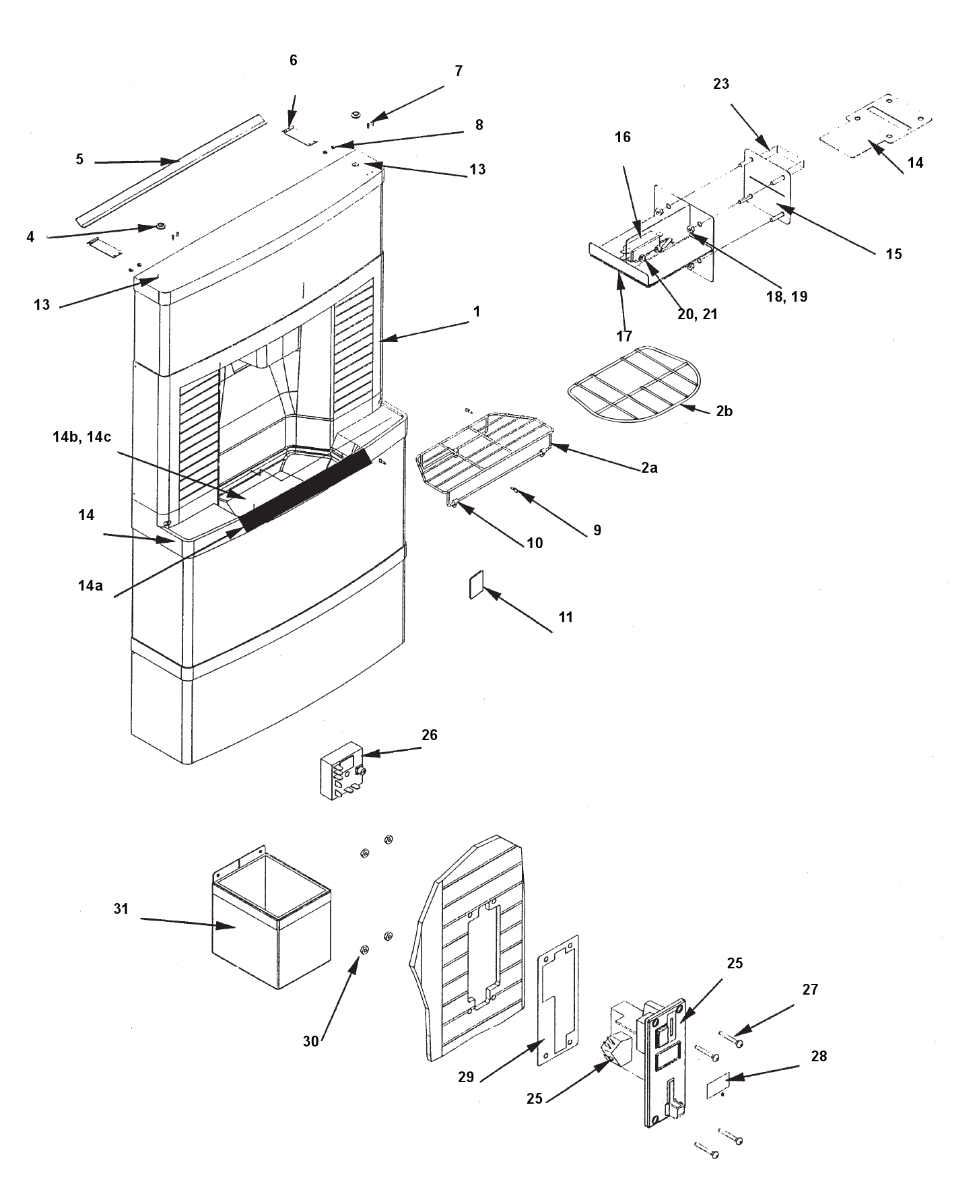

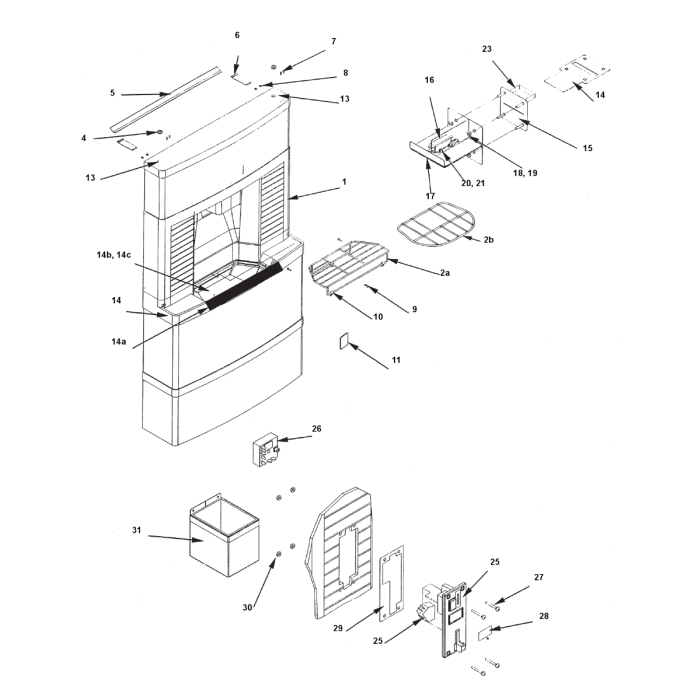

SI.#	Name	Part#
1a	QPA310 Rocking Chute	5011731
1b	QFA291 Push Button Glass Fill	5011736
2a	Flat Style	5007348
2b	Round Style	5012970
3	VLV MECH PL	202-FN-1101
3a	Bracket Water Fill Valve	5012105
3b	Lever SS Sanitary	516-06
3c	Manual Lever Retainer Cap	517-00
3d	Male Connector - 0.375"	1360961
3e	ADAPTER .50ID X .63OD 1/2NPTF	8706093
3f	Swivel Nut - 0.25" x 0.25"	7013
3g	Washer - 0.25" White Nylon	1701113
3h	Hose (6 feet)	5008816
4	Grommet 5/8" Top Mount	5008096
5	Gasket Top Front Panel	5008624
6	Latch Top Mount	5008068
7	Stud #6-32 x 5/16" Pin FHS	5008634
8	Nut - #6-32 Hex SS	0902101
9	LATCH << NLA W/OUT >>	5008075
10	Clamp - 0.25"	5007667
11	Label Manitowoc Logo	8135773
12	Cartoning - 30"	5007538
12a	Carton Pallet - 30"	020000732
13	Box Lock	9750733
14a	Stainless Steel Sink Basin Wearguard	5011995
14c	Sink Basin Insert Starting SN010464077 to SN010861616	9750713
15	Plate Front	5008271
16	Switch	020003076
17	Bracket Q160 Model Paddle Wheel - Door Assembly	5008270
18	Nut - #8-32 Hex SS	0902103
19	WASHER STAR #8 SS	0901915
20	Nut 6-32 Kept HH SS	88000087
21	Screw - #6-32 x 1.0" SS	0900901
22	Wiring Harness - Key Card	5008267
23	Insert Card Label	5008455
24	Wiring Diagram Label	5008272
25	Coin Mechanism with Microswitch	5008313
26	Coin Mechanism Timer - 115V	5008325
27	Bolt Carriage 8-32 x 1" Black	5008370
28	AGIT U-BAR	5009899
29	Plate	5008379
30	Nut - #8-32	00201803
31	Coin Box	9750753
0	Water Inlet - Female Wing Adapter - Nylon - 0.375"	000013181
0	Timer, Coin Mechanism 230V	5009453
