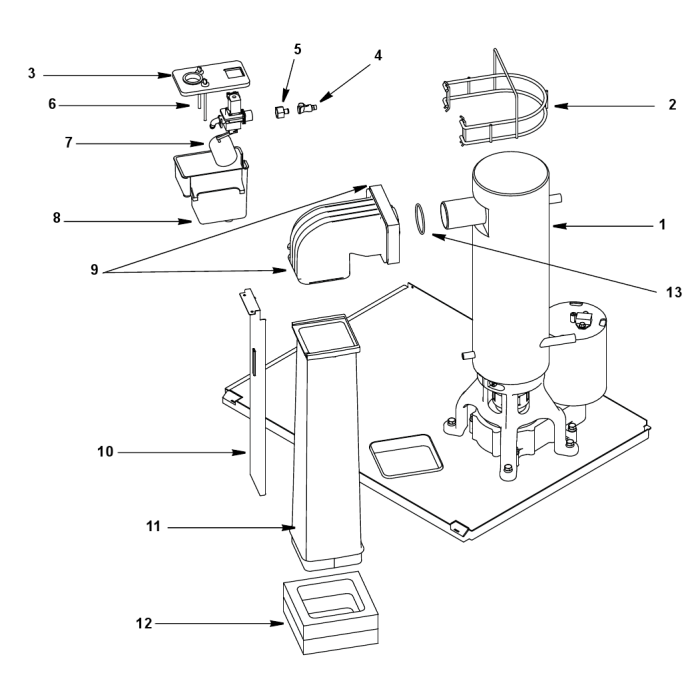

QF2200 EVAPORATOR ASSEMBLY
QF2200 EVAPORATOR ASSEMBLY
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
QF2200 EVAPORATOR ASSEMBLY
| SI.# | Name | Part# |
|---|---|---|
| 1a |  | 3001203 |
| 2 | | 3001663 |
| 3 | | 4004673 |
| 3a | | 5000303 |
| 4 | | 5000243 |
| 5 | | 5000233 |
| 6 | | 7600693 |
| 7 | | 2000443 |
| 7a | | 2000453 |
| 7b | | 2000463 |
| 7c | | 4003173 |
| 8 | | 4004663 |
| 9 | | 4004813 |
| 9a | | 3001673 |
| 10 | | 7601213 |
| 11 | | 000000011 |
| 12 | | 3001683 |
| 13 | | 5000833 |
SI.# 1a
Name Evaporator - Flake 3001203
SI.# 2
Name Evaporator Spout Retainer 3001663
SI.# 3
Name Water Reservoir Cover 4004673
SI.# 3a
Name Plug 5000303
SI.# 4
Name Quick Disconnect Fitting 5000243
SI.# 5
Name Water Inlet Fitting 5000233
SI.# 6
Name Water Level Probe 7600693
SI.# 7
Name Water Flot Valve Body 2000443
SI.# 7a
Name Water Valve - 115V/60 Hz/1 Ph Coil Only 2000453
SI.# 7b
Name Water Valve - 208-230V/50-60 Hz/1 Ph Coil Only 2000463
SI.# 7c
Name Water Valve Foam Seal 4003173
SI.# 8
Name Water Reservoir 4004663
SI.# 9
Name Ice Chute Elbow 4004813
SI.# 9a
Name insulation 3001673
SI.# 10
Name Bin Level Probe - USE UP 7601213
SI.# 11
Name Ice Chute 000000011
SI.# 12
Name Insulation ice Chute 3001683
SI.# 13
Name O-Ring 5000833
| SKU | QF2200 EVAPORATOR ASSEMBLY |
|---|
