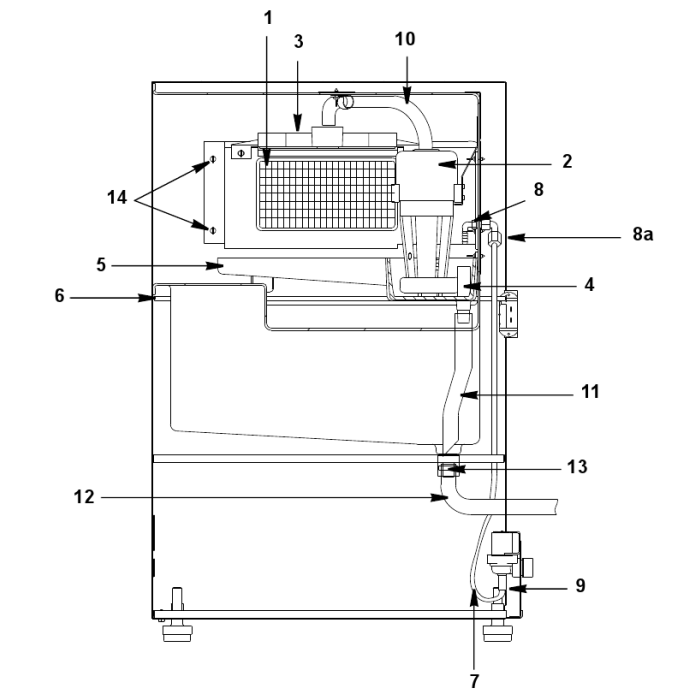

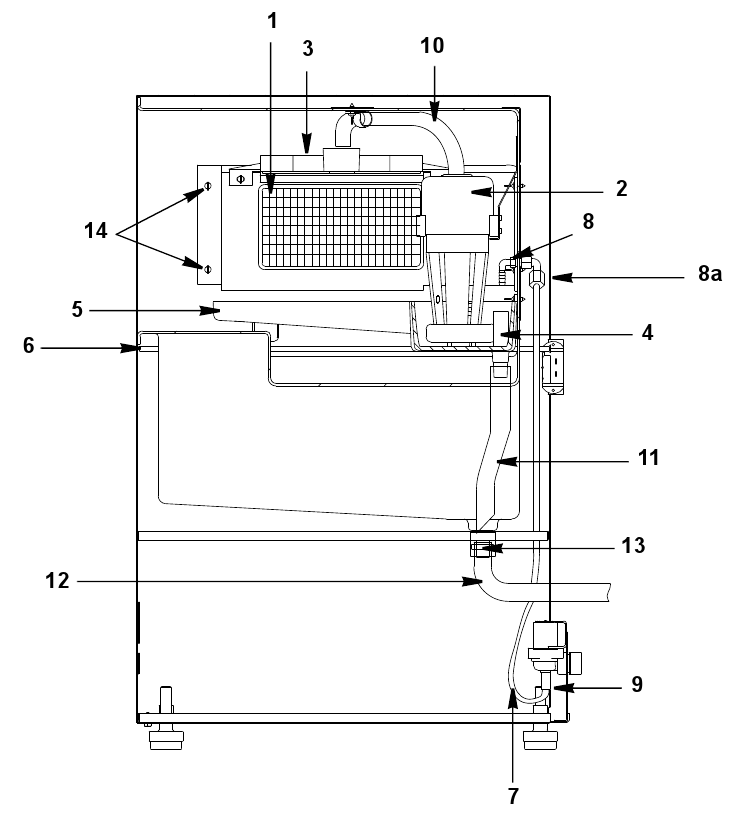

QM030 EVAPORATOR COMPONENTS
QM030 EVAPORATOR COMPONENTS
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
QM030 EVAPORATOR COMPONENTS
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 7627923 |
| 2a | | 2001423 |
| 2b | | 2001413 |
| 2c | | 040000944 |
| 2d | | 040000849 |
| 3 | | 7629403 |
| 4 | | 040001210 |
| 5 | | 040001227 |
| 6 | | 000000112 |
| 7 | Tygon Tube - 0.25" OD | 4420291 |
| 8 | | 8390133 |
| 8a | | 8390143 |
| 9 | | 5650729 |
| 10 | | 040001212 |
| 11 | | 4420383 |
| 12 | | 4421443 |
| 13 | | 5650709 |
| 14 | | 5305123 |
| 15 | | 5012169 |
| 16 | | 040001217 |
| 17 | | 040001088 |
SI.# 1
NameEvaporator Assembly - Dice Cube 7627923
SI.# 2a
NameWater Pump - 115V/60 Hz UE0065 - Evaporator Assembly 2001423
SI.# 2b
NameWater Pump - 230V/50 Hz - Before Serial Number 310145529 2001413
SI.# 2c
NameWater Pump - 230V/50 Hz - After Serial Number 310145529 040000944
SI.# 2d
NameWater Pump Lead 040000849
SI.# 3
NameWater Distribution Tube - QM20/QM30 7629403
SI.# 4
NameWater Drain Stand Pipe 040001210
SI.# 5
NameWater Trough 040001227
SI.# 6
NameBin Thermostat Control Tube 000000112
SI.# 7
NameTygon Tube - 0.25" OD 4420291
SI.# 8
NameWater Inlet Elbow - Male 8390133
SI.# 8a
NameWater Inlet Elbow - Female 8390143
SI.# 9
NameCompression NutFloat Valve 5650729
SI.# 10
NameWater Pump Out Tubing - 0.5" OD 040001212
SI.# 11
NameClear Tubing - 0.625" ID 4420383
SI.# 12
NameBin Drain Tubing - 0.625 ID 4421443
SI.# 13
NameSnap Clamp - 0.799"/0.899" ID 5650709
SI.# 14
NameThumbscrew SS - #8-32 x 0.44" 5305123
SI.# 15
NameThumbscrew - #8-32 x 0.625 5012169
SI.# 16
NameThumbscrew - #8-32 x 0.625" 040001217
SI.# 17
NameWater Supply Hose 040001088
