RF0385 EVAPORATOR ASSEMBLY
RF0385 EVAPORATOR ASSEMBLY
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
RF0385 EVAPORATOR ASSEMBLY

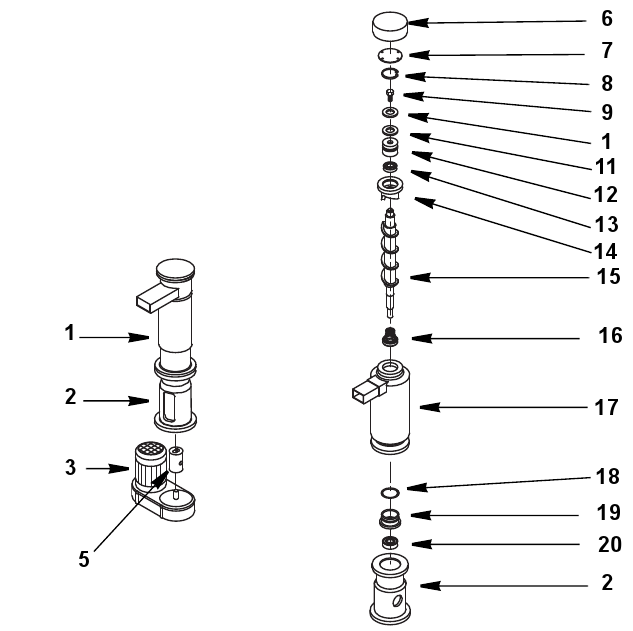

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000005684 |
| 1a | | 000015328 |
| 2 | | 000005693 |
| 2a | | 000012459 |
| 3a | | 000011126 |
| 3b | | 000011800 |
| 4a | | 000007825 |
| 4b | | 000007824 |
| 4c | | 000007826 |
| 5 | | 000005642 |
| 6 | | 000005734 |
| 7 | | 000005608 |
| 8 | | 000005757 |
| 9 | | 000005599 |
| 10 | | 000005609 |
| 11 | | 000005650 |
| 12 | | 000005607 |
| 13 | | 000005735 |
| 14 | | 000015314 |
| 15 | | 000005598 |
| 16 | | 000005778 |
| 17 | | 000005681 |
| 18 | | 000005583 |
| 19 | | 000005782 |
| 20 | | 000005605 |
| 21 | | 000012551 |
| 22 | | 000005685 |
SI.# 1
Name Evaporator Assembly 000005684
SI.# 1a
Name Plastic Ice Chute - 2 Piece 000015328
SI.# 2
Name Evaporator Foundation 000005693
SI.# 2a
Name Bolt - Evaporator Foundation - M6 x 25mm 000012459
SI.# 3a
Name Gearmotor - 115V/60 Hz/1 Ph 000011126
SI.# 3b
Name Gearmotor Assembly - 208-230V/50-60 Hz/1 Ph 000011800
SI.# 4a
Name Gearmotor Capacitor 16MFD - 115V/60 Hz/1 Ph 000007825
SI.# 4b
Name Gearmotor Capacitor 5MFD - 230V/50 Hz/1 Ph 000007824
SI.# 4c
Name Gearmotor Capacitor - 220V/60 Hz/1 Ph 000007826
SI.# 5
Name Coupling 000005642
SI.# 6
Name Insulating Cap 000005734
SI.# 7
Name Bearing Cap 000005608
SI.# 8
Name Snap Ring 000005757
SI.# 9
Name Auger Bolt 000005599
SI.# 10
Name Bearing Shim 000005609
SI.# 11
Name Self Lubricating Disc 000005650
SI.# 12
Name Upper Bearing 000005607
SI.# 13
Name Upper O-ring 000005735
SI.# 14
Name Cutter Head 000015314
SI.# 15
Name Auger 000005598
SI.# 16
Name Water Seal 000005778
SI.# 17
Name Evaporator 000005681
SI.# 18
Name Lower O-ring 000005583
SI.# 19
Name Water Seal Retainer 000005782
SI.# 20
Name Lower Bearing 000005605
SI.# 21
Name Evaporator Rebuild Kit - RF0244/RF0385/RF0300/RFS0300 without Auger 000012551
SI.# 22
Name Evaporator Assembly 000005685
| SKU | RF0385 EVAPORATOR ASSEMBLY |
|---|
