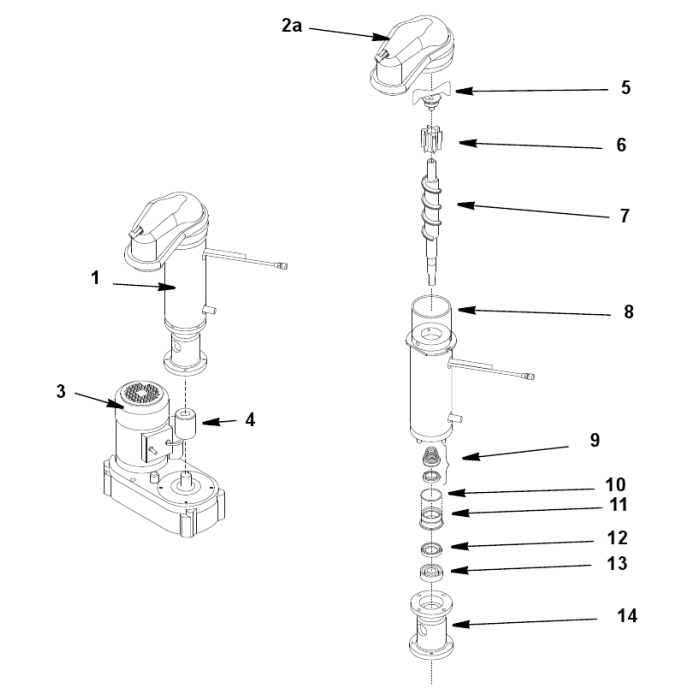

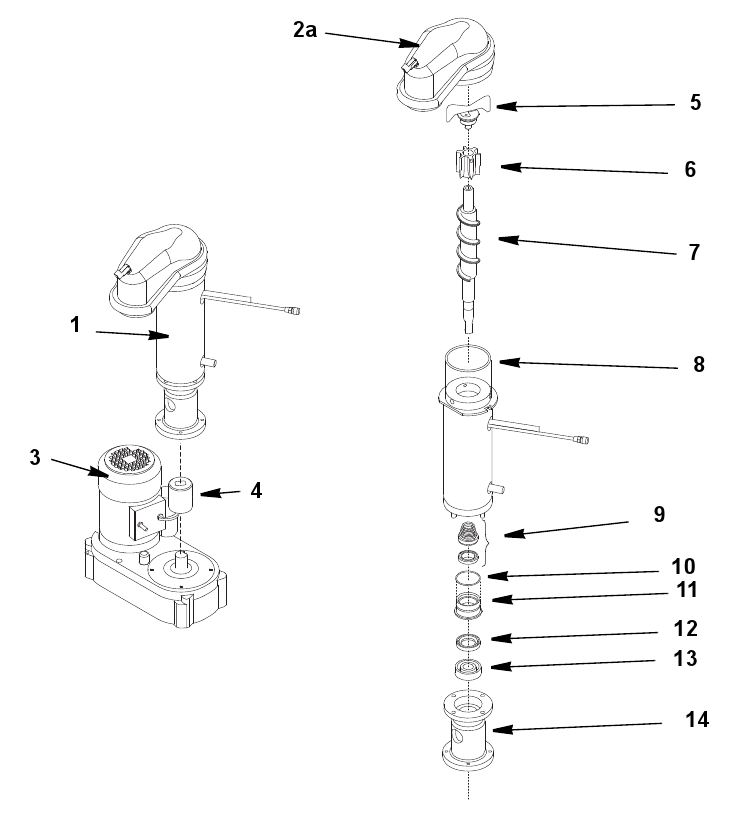

RNS0300 Evaporator Assembly
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 12319 |
| 1a | | 15511 |
| 2 | | 11622 |
| 2a | | 12452 |
| 2b | | 18558 |
| 3a | | 11126 |
| 3b | | 11800 |
| 3c | | 7825 |
| 3d | | 7824 |
| 4 | | 8967 |
| 5 | | 10271 |
| 6 | | 9156 |
| 7 | | 9157 |
| 8 | | 8900 |
| 9 | | 6426 |
| 10 | | 5583 |
| 11 | | 5782 |
| 12 | | 8938 |
| 13 | | 8898 |
| 14 | | 8897 |
| 14a | | 12459 |
| 15 | | 12547 |
| 16 | | 16465 |
| 17a | | 5005653 |
| 17b | | 5005663 |
| 17c | | 5005673 |
| 17d |  Screw - #10-24 x 0.5" HEX | 5202069 |
SI.# 1
NameEvaporator Assembly 12319
SI.# 1a
NameSet Screws - Evaporator 15511
SI.# 2
NameIce Chute with Bulb Holder 11622
SI.# 2a
NameIce Exhaust with Microswitch 12452
SI.# 2b
NameMicroswitch 18558
SI.# 3a
NameGearmotor Assembly - 115V/60 Hz/1 Ph 11126
SI.# 3b
NameGearmotor Assembly - 208-230V/50-60 Hz/1 Ph 11800
SI.# 3c
NameGearmotor Capacitor 16 uF - 115V/60 Hz/1 Ph 7825
SI.# 3d
NameGearmotor Capacitor 5 uF - 230V/50 Hz/1 Ph 7824
SI.# 4
NameJoint 8967
SI.# 5
NameIce Breaker 10271
SI.# 6
NameExtruder with Bearings Assembly 9156
SI.# 7
NameAuger 9157
SI.# 8
NameO-ring Gasket 8900
SI.# 9
NameWater Seal 6426
SI.# 10
NameLower O-ring 5583
SI.# 11
NameWater Seal Retainer 5782
SI.# 12
NameSeal Ring 8938
SI.# 13
NameBearing 8898
SI.# 14
NameEvaporator Foundation 8897
SI.# 14a
NameBolt - Evaporator Foundation - M6 x 25mm 12459
SI.# 15
NameEvaporator Rebuild Kit - RNS12-20/CNF201- 202/RNS0300/RNF0320/RNP0320 12547
SI.# 16
NameEvaporator Thermostat 16465
SI.# 17a
NameBolt - M8 x 20 SS 5005653
SI.# 17b
NameFlatwahser - M8 SS 5005663
SI.# 17c
NameLockwasher - M8 SS 5005673
SI.# 17d
NameScrew - #10-24 x 0.5" HEX 5202069
