RNS12 Control Box
RNS12 Control Box
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
RNS12 Control Box

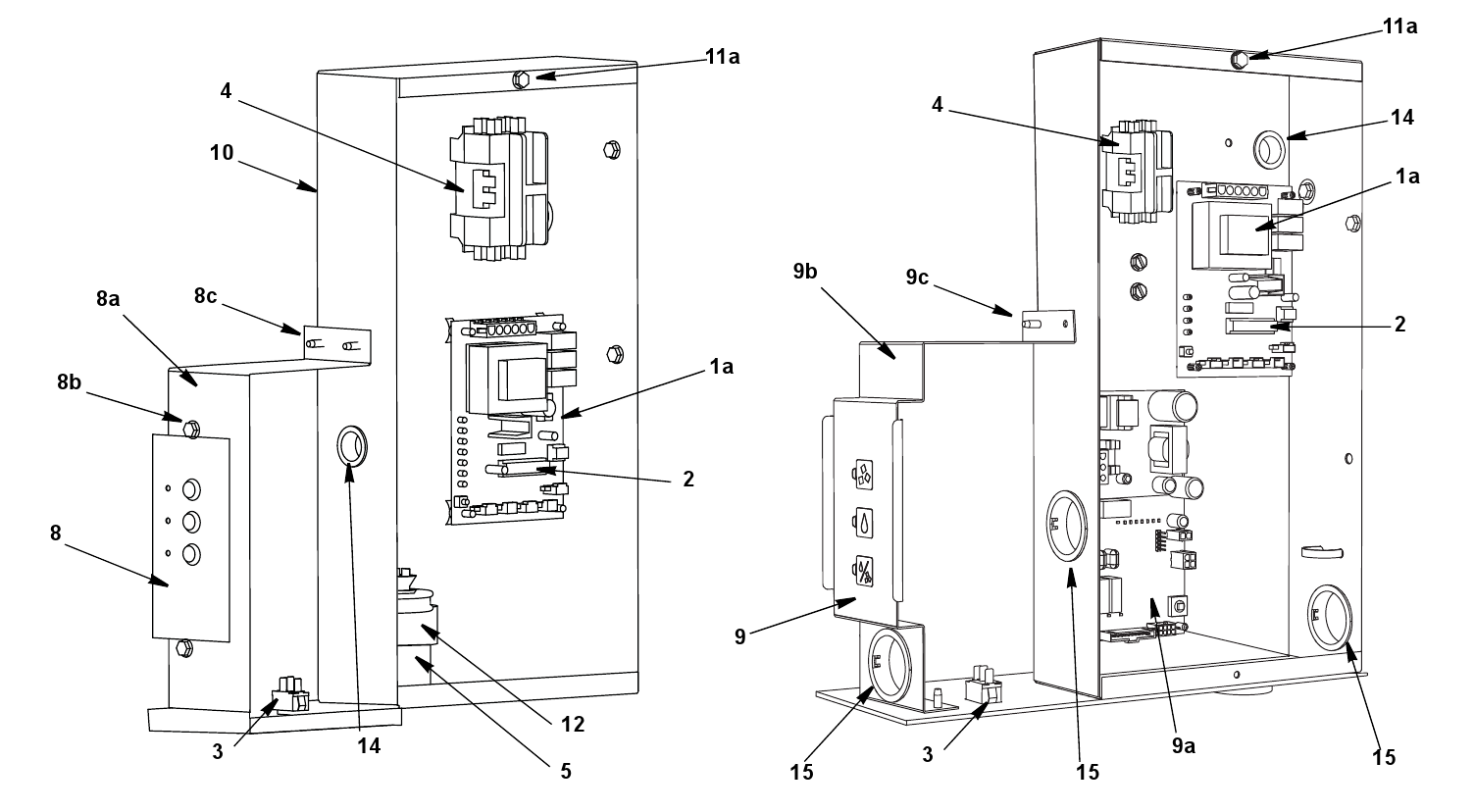

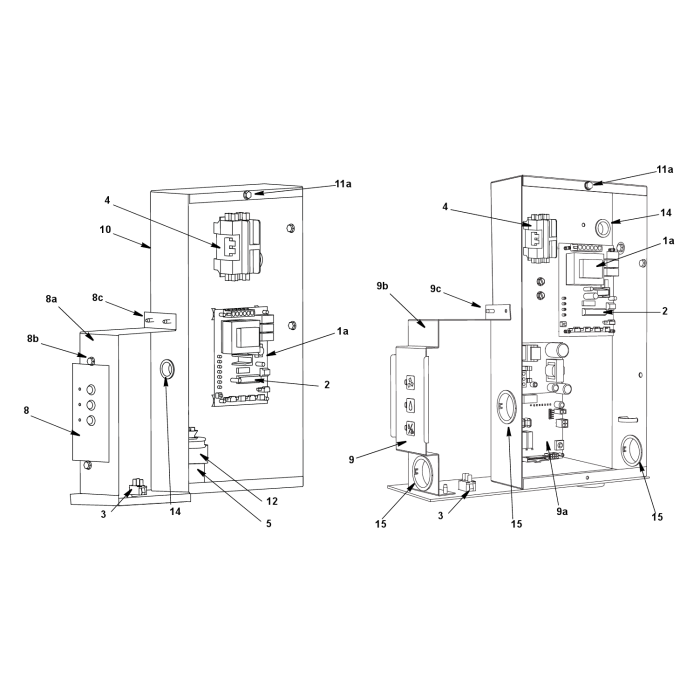

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000001238 |
| 1a |  | 4302253 |
| 2 |  | 2511493 |
| 3 |  | 2007939 |
| 3a | | 2009873 |
| 4a |  | 2006589 |
| 4b |  | 2006599 |
| 5a | | 7825 |
| 5b | | 7824 |
| 7 | | 8274 |
| 8 | | 2009523 |
| 8a | | 6067221 |
| 8b |  Screw - #12-16 x 0.75" | 5012319 |
| 8d | | 2009723 |
| 9 | | 000010710 |
| 9a | | 000010742 |
| 9b | | 000010745 |
| 9d | | 000010750 |
| 10 | | 000010744 |
| 11 | | 000000734 |
| 11a |  | 5202069 |
| 12 | | 6024953 |
| 13 | | 5202109 |
| 14 |  | 2501409 |
| 15 |  | 2500139 |
SI.# 1
NameControl Board 000001238
SI.# 1a
NameControl Board Mounting Supports 4302253
SI.# 2
NameFuse - 10A 2511493
SI.# 3
NameToggle Switch 2007939
SI.# 3a
NameToggle Switch Wiring Harness 2009873
SI.# 4a
NameContactor - 115V/60 Hz/1 Ph 2006589
SI.# 4b
NameContactor - 230V/50-60 Hz/1 Ph 2006599
SI.# 5a
NameGearmotor Capacitor 16 uF - 115V/60 Hz/1 Ph 7825
SI.# 5b
NameGearmotor Capacitor 5 uF - 230V/50 Hz/1 Ph 7824
SI.# 7
NameWiring Harness - Power 8274
SI.# 8
NameSelector Switch 2009523
SI.# 8a
NameBracket - Selector Switch 6067221
SI.# 8b
NameScrew - #12-16 x 0.75" 5012319
SI.# 8d
NameWiring Harness - Selector Switch 2009723
SI.# 9
NameTouch Pad Selector 000010710
SI.# 9a
NameControl Board - Touch Pad 000010742
SI.# 9b
NameBracket - Touch Pad 000010745
SI.# 9d
NameWiring Harness - Touch Pad 000010750
SI.# 10
NameControl Box 000010744
SI.# 11
NameControl Box Cover 000000734
SI.# 11a
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 12
NameCapacitor Mounting Strap - USE UP 6024953
SI.# 13
NameScrew - #10-24 x 0.375" 5202109
SI.# 14
NameBushing - 0.875" 2501409
SI.# 15
NameBushing - 1.5" 2500139
| SKU | RNS12 Control Box |
|---|
