Model
S162 Cabinet Assembly

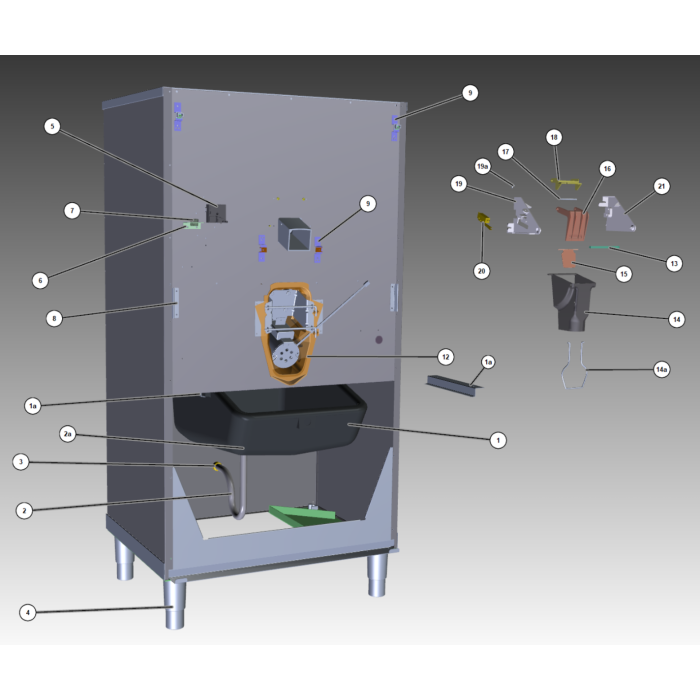

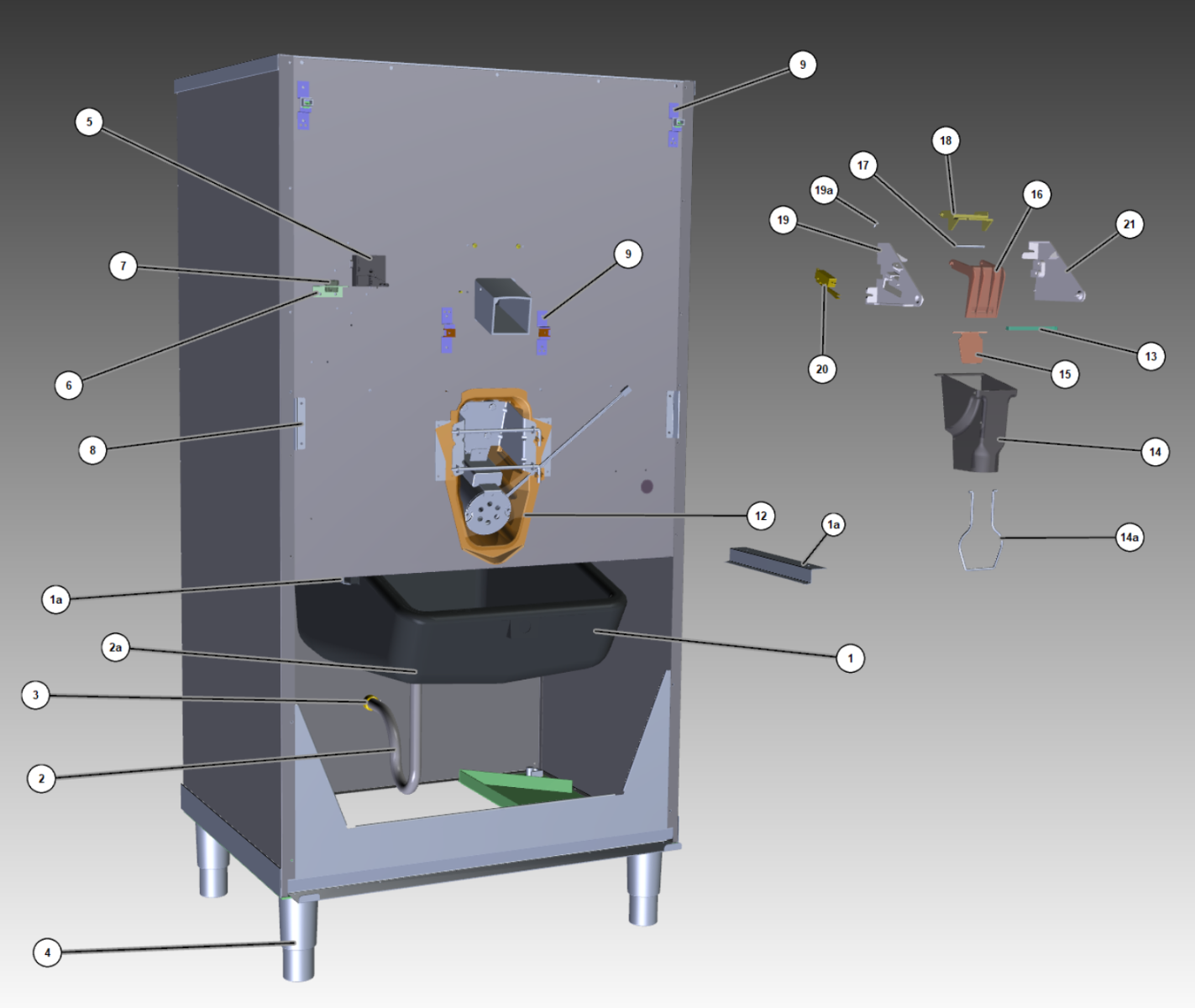

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 5029307 |
| 1a | | 5029691 |
| 1b | | 5014120 |
| 2 | | 000017756 |
| 2a | Clamp - 1.25" SS | 0903203 |
| 2b | | 5013878 |
| 2c |  | 5650709 |
| 3 |  | 8706083 |
| 4 | | 5005533 |
| 5 | | 020000222 |
| 6 | | 5028998 |
| 7 | | 1200301 |
| 8 | | 020004183 |
| 9a |  | 5029694 |
| 9b | | 00217722 |
| 9c | | 00217721 |
| 9d | | 0900240 |
| 9e | | 5011940 |
| 10 | | K00348 |
| 11 | | 5008642 |
| 12 | | 7050110 |
| 13 | | 5031384 |
| 14 | | 000016612 |
| 14a | | 000016631 |
| 15 | | 020002334 |
| 16 | | 5002508 |
| 17 | | 020002389 |
SI.# 1
NameDrain Pan Assembly 5029307
SI.# 1a
NameBracket Drain Pan Support 5029691
SI.# 1b
NameFoot - Drain Pan 5014120
SI.# 2
NameTubing Drain Line with Insulation 000017756
SI.# 2a
NameClamp - 1.25" SS 0903203
SI.# 2b
NameDrain Strainer 5013878
SI.# 2c
NameSnap Clamp - 0.799"/0.899" ID 5650709
SI.# 3
NameAdapter 3/8 Npt X 3/8 ODF 8706083
SI.# 4
NameLeg, 6" Adjustable 5005533
SI.# 5
NameAgitation Timer 020000222
SI.# 6
NameBracket - Strain Relief 5028998
SI.# 7
NameStrain Relief 1200301
SI.# 8
NameBracket 020004183
SI.# 9a
NameBracket - Front Door 5029694
SI.# 9b
NameFastener Strike - Front Door 00217722
SI.# 9c
NameFastener Latch - Front Door 00217721
SI.# 9d
NameClip 0900240
SI.# 9e
NameScrew - #8-32 x 0.5" 5011940
SI.# 10
NameBaffle S160 Model Paddle Wheel - Cabinet Assembly K00348
SI.# 11
NamePower Cord 5008642
SI.# 12
NameMotor Housing 7050110
SI.# 13
NameOuter Bracket - Rocking Chute 5031384
SI.# 14
NameRocking Chute 000016612
SI.# 14a
NamePush Rod - Dispense 000016631
SI.# 15
NameDoor Finger Guard 020002334
SI.# 16
NameRocking Chute - Door 5002508
SI.# 17
NameDoor Rod 020002389
