S162 Dispense Assembly
S162 Dispense Assembly
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model

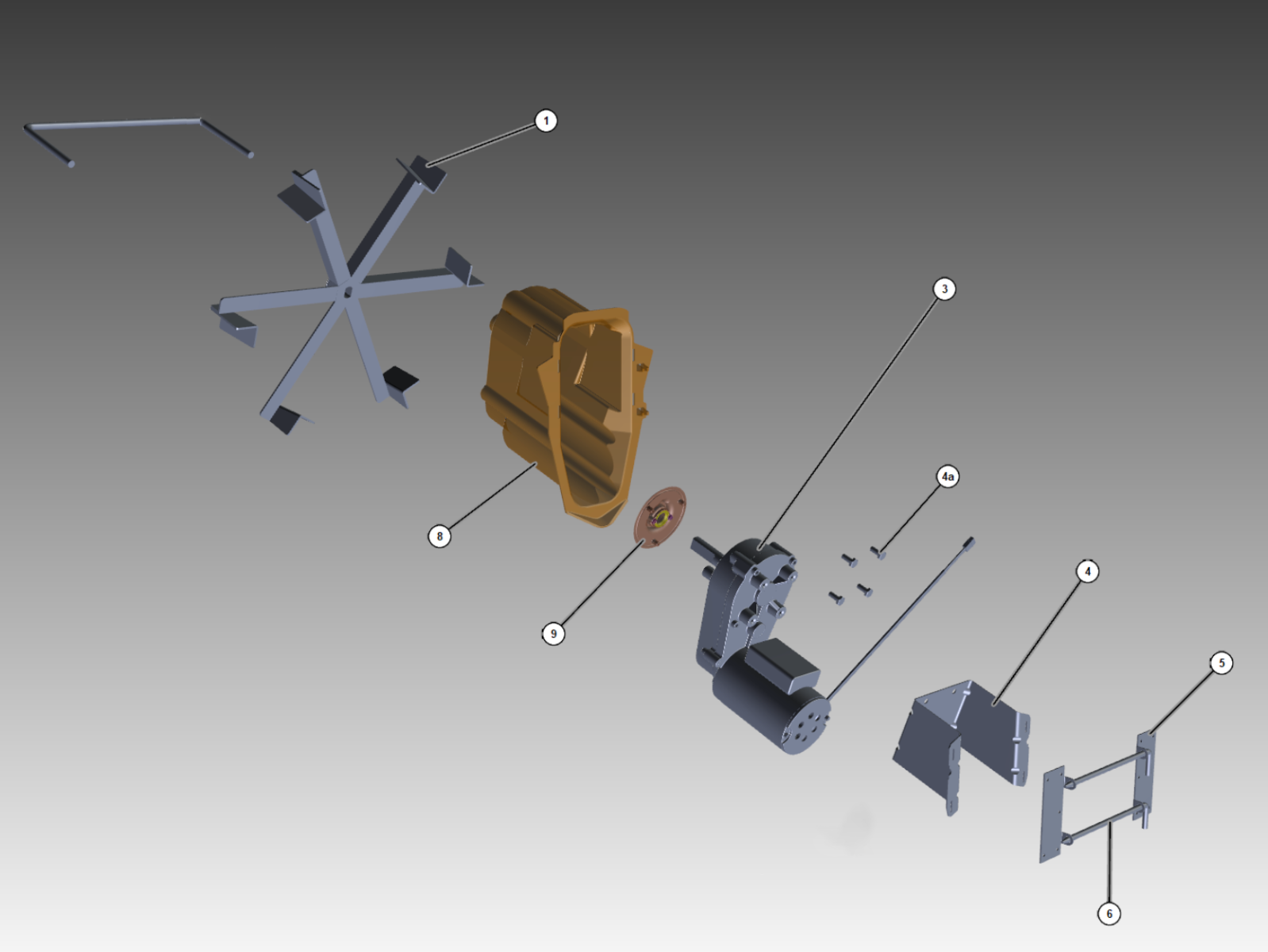

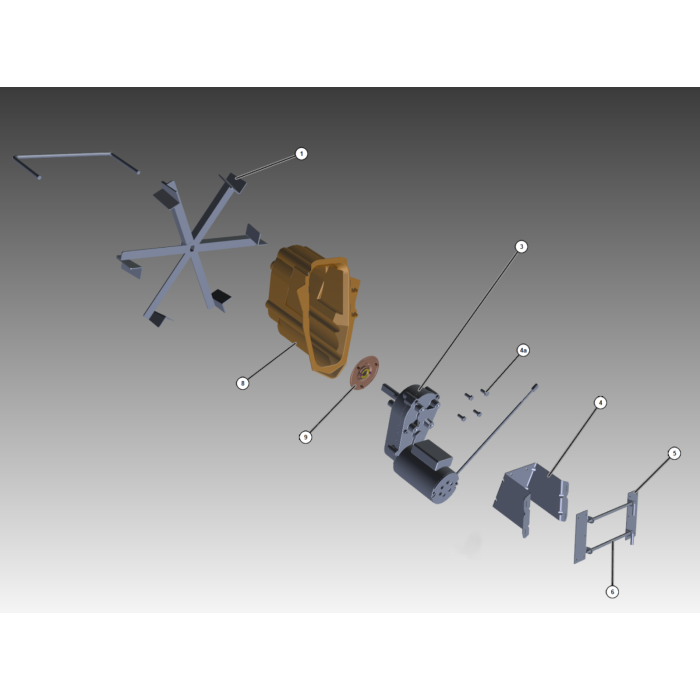

S162 Dispense Assembly
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000016188 |
| 2 | | 000016172 |
| 3a | | 000016167 |
| 3b | | 000016205 |
| 4 | | 5001776 |
| 4a | | 0900601 |
| 5 | | 5007359 |
| 6 | | 4140023 |
| 7a | | 020002950 |
| 7b | | 020002951 |
| 8 | | 7050110 |
| 9 | | 020003438 |
| 10 | | 000017365 |
SI.# 1
Name Agitator Bar & Paddle Wheel Assembly 000016188
SI.# 2
Name Screw - Paddle Wheel 000016172
SI.# 3a
Name Dispense Motor - 115V/60 Hz 000016167
SI.# 3b
Name Dispense Motor - 220V/50-60 Hz 000016205
SI.# 4
Name Refrigeration Compartment 1 - Wa 5001776
SI.# 4a
Name Bolt - 0.25" x 0.625" SS 0900601
SI.# 5
Name Retain Pin Bracket 5007359
SI.# 6
Name Retaining Pin Q160 Model Paddle Wheel - Paddle Wheel Assembly 4140023
SI.# 7a
Name CAPAC 350V 50/60 HZ 20UF 020002950
SI.# 7b
Name Capacitor - 220-240V/50-60 Hz 020002951
SI.# 8
Name Motor Housing 7050110
SI.# 9
Name Oil Seal Kit 020003438
SI.# 10
Name Plug - Bin Wall 000017365
