Model
S2170C Panels

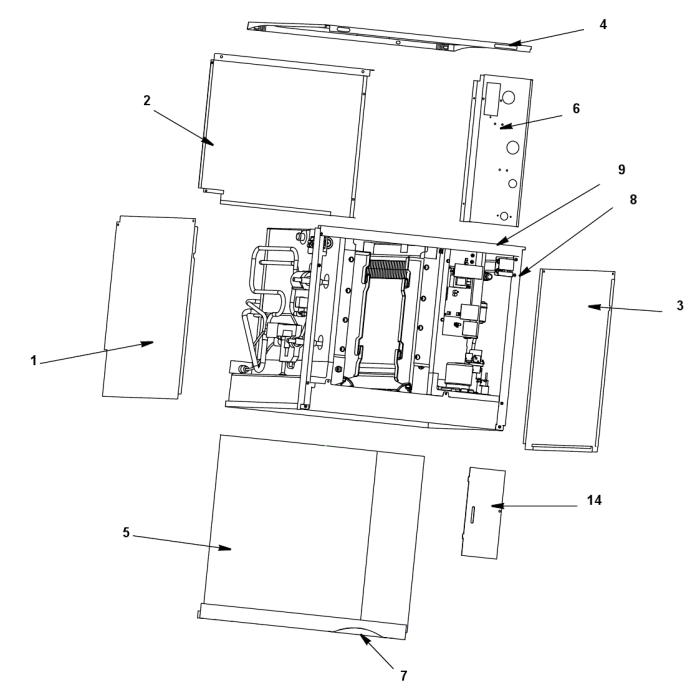

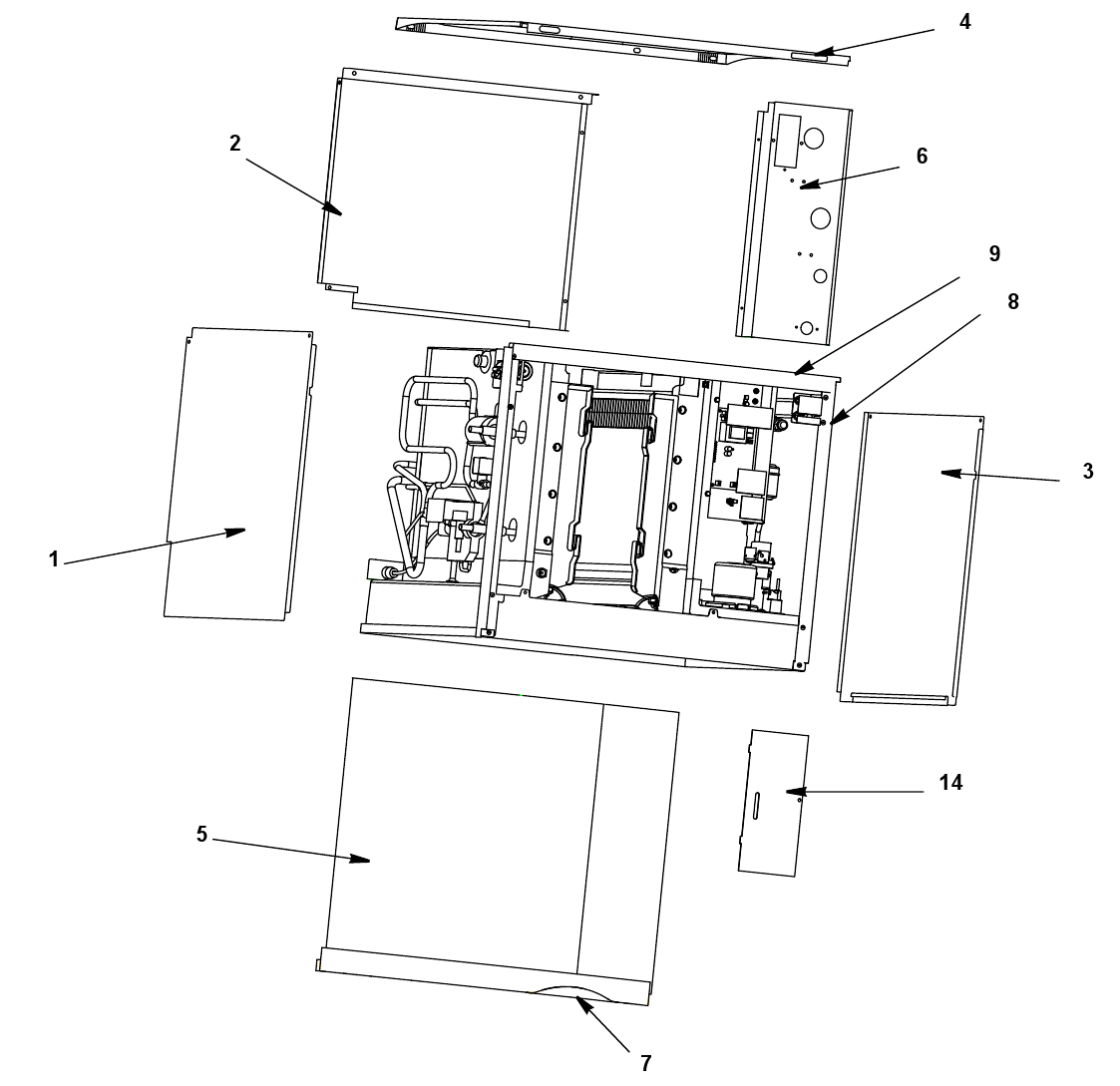

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 2464 |
| 2 | | 2462 |
| 3 | | 2463 |
| 4 | | 6699 |
| 5 | | 2159 |
| 5a |  | 000002190 |
| 5b |  Thumbscrew - #8-32 x 0.375" | 5000013 |
| 6 | | 2016 |
| 7 | | 5005593 |
| 7a | | 260 |
| 7b | | 305 |
| 8 | | 2015 |
| 9 | | 1447 |
| 9a |  | 5202099 |
| 9b | | 2246 |
| 10 | | 1138 |
| 10a |  | 5005099 |
| 11 | | 5000373 |
| 12 | | 2288 |
| 13 | | 6063989 |
| 13a | | 13057 |
| 14 | | 2230 |
| 15 | | 7112429 |
SI.# 1
NameLeft Side Panel 2464
SI.# 2
NameBack Panel 2462
SI.# 3
NameRight Side Panel - USE UP 2463
SI.# 4
NameTop Cover 6699
SI.# 5
NameFront Door 2159
SI.# 5a
NameFront Panel Mount, Dual Evap unit 000002190
SI.# 5b
NameThumbscrew - #8-32 x 0.375" 5000013
SI.# 6
NameCoupling Panel 2016
SI.# 7
NameFront Door Screw 5005593
SI.# 7a
NameFront Panel - Shoulder Bolt 260
SI.# 7b
NameNut Front Panel - 305
SI.# 8
NameFront Vertical Angle 2015
SI.# 9
NameFront Top Support 1447
SI.# 9a
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 9b
NamePlastic Dome Head Plug 2246
SI.# 10
NameBottom Front Angle 1138
SI.# 10a
NameScrew - #10-16 x 0.625" 5005099
SI.# 11
NameScrew - #10-24 x 0.5" PHIL 5000373
SI.# 12
NameSpacer Screw #10 x 0.25" - Top Cover 2288
SI.# 13
NameElectrical Connection Box - 60 Hz 6063989
SI.# 13a
NameCover - Electrical Connection Box - 60 Hz 13057
SI.# 14
NameControl Box 2230
SI.# 15
NameCartoning 7112429
