S3070C Control Box Components

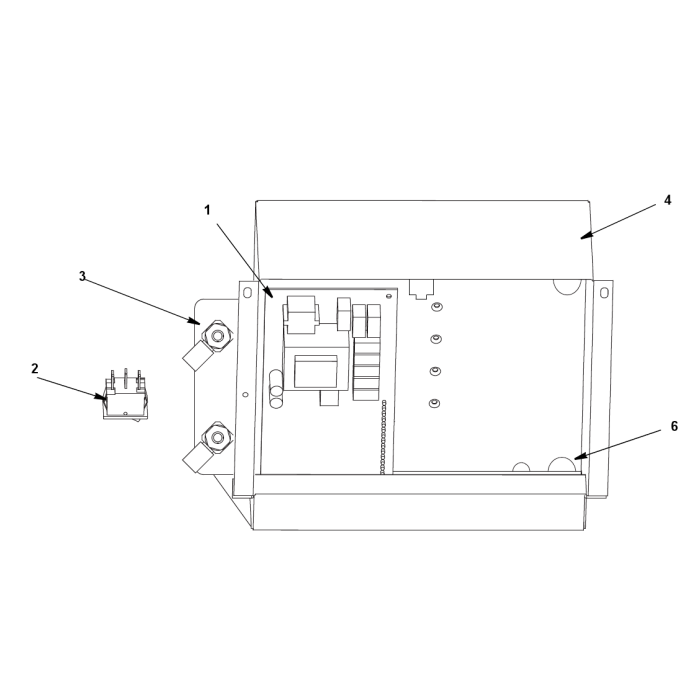

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 16700 |
| 1a | | 8240 |
| 2 | | 2007939 |
| 2a | | 2858 |
| 2b | | 4011639 |
| 3 |  | 8373253 |
| 3a | | 7626843 |
| 3b | | 8312 |
| 4 | | 3088 |
| 4a | | 3089 |
| 4b | | 6067249 |
| 5 |  | 4302253 |
| 6 | | 2502199 |
| 7 |  Screw - #10-24 x 0.5" Ground | 5202169 |
| 7a |  | 5573209 |
| 8 |  | 5202069 |
| 9a | | 2860 |
| 9c | | 2859 |
| 9d | | 3960 |
| 9e | | 3260 |
| 9f | | 1369 |
SI.# 1
NameControl Board 16700
SI.# 1a
NameFuse - 8A 8240
SI.# 2
NameToggle Switch 2007939
SI.# 2a
NameWiring Harness - Toggle Switch 2858
SI.# 2b
NameToggle Switch Box 4011639
SI.# 3
NameAccess Valve 8373253
SI.# 3a
NameValve Cores 7626843
SI.# 3b
NameMounting Bracket - Valve 8312
SI.# 4
NameControl Box 3088
SI.# 4a
NameControl Box Cover 3089
SI.# 4b
NameControl Box Bracket 6067249
SI.# 5
NameControl Board Mounting Supports 4302253
SI.# 6
NameBushing 2502199
SI.# 7
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 7a
NameStar Washer 5573209
SI.# 8
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 9a
NameWiring Harness - Control Box 2860
SI.# 9c
NameWiring Harness - Curtain Switch 2859
SI.# 9d
NameWiring Harness - Bulkhead CVD 3960
SI.# 9e
NameWiring Harness - Low Pressure Protection 3260
SI.# 9f
NameWiring Harness - Compressor - 208-230V/60 Hz/3 Ph & 415V/50 Hz/3 Ph 1369
