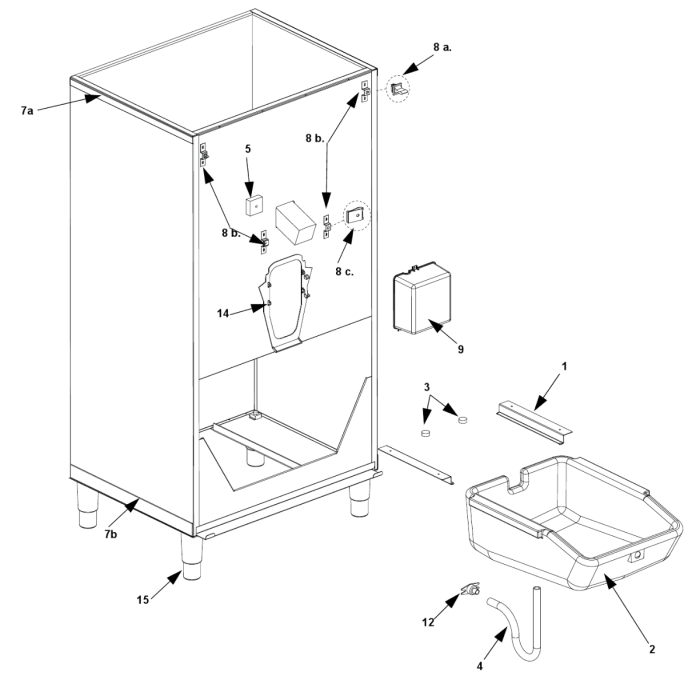

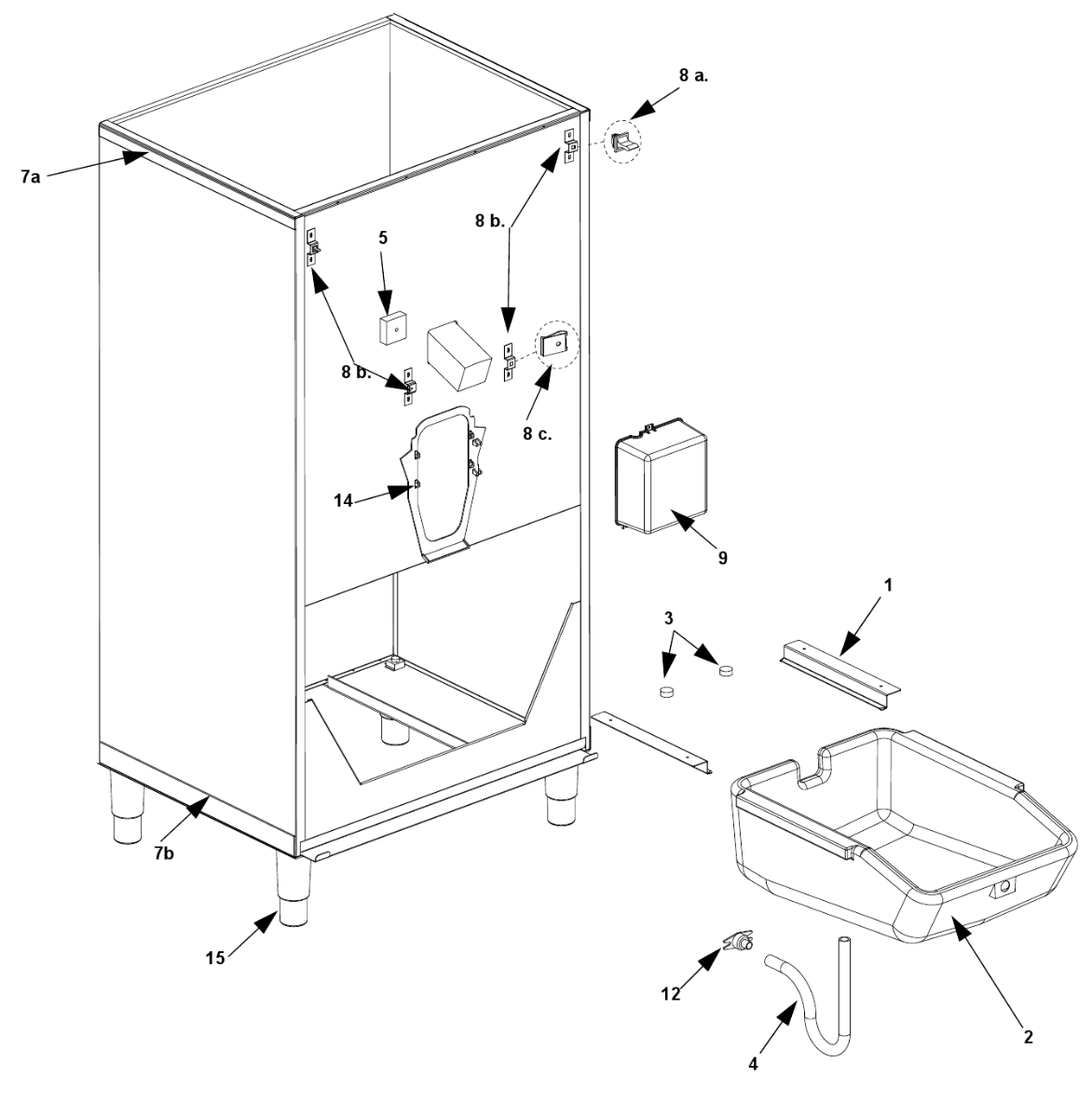

S310 CABINET ASSEMBLY
S310 CABINET ASSEMBLY
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
S310 CABINET ASSEMBLY
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 5029691 |
| 2 | | 5029307 |
| 3 | | 5014120 |
| 4 | | 5010341 |
| 4a | | 5013878 |
| 4b |  | 5650709 |
| 5 | | 020000222 |
| 6 | | 5029412 |
| 7a | | 020004140 |
| 7b | | 020004139 |
| 7c | | 9202483 |
| 8a | | 00217722 |
| 8b |  | 5029694 |
| 8c | | 0900240 |
| 8d | Screw - #8-32 x 0.5" | 5011940 |
| 9a | | 5028992 |
| 9b | | 5008115 |
| 10 | | 5008116 |
| 11 | | 5008642 |
| 12 |  | 8706083 |
| 13 | | K00346 |
| 14 | | 5010220 |
| 15 | | 5005533 |
| 16 | | 5007538 |
SI.# 1
NameBracket Drain Pan Support 5029691
SI.# 2
NameDrain Pan Assembly 5029307
SI.# 3
NameFoot - Drain Pan 5014120
SI.# 4
NameTubing Drain w/Insulation - USE UP SPA / SFA Cabinet Assembly 5010341
SI.# 4a
NameDrain Strainer 5013878
SI.# 4b
NameSnap Clamp - 0.799"/0.899" ID 5650709
SI.# 5
NameAgitation Timer 020000222
SI.# 6
NameLabel Wiring Diagram 115V 5029412
SI.# 7a
NameTop Trim 020004140
SI.# 7b
NameBottom Trim 020004139
SI.# 7c
NameSILICONE ALUMINUM 10.3 OZ NSF51 FDA APPR 9202483
SI.# 8a
NameFastener Strike - Front Door 00217722
SI.# 8b
NameBracket - Front Door 5029694
SI.# 8c
NameClip 0900240
SI.# 8d
NameScrew - #8-32 x 0.5" 5011940
SI.# 9a
NameElectrical Box S310 Model Paddle Wheel - Cabinet Assembly 5028992
SI.# 9b
NameElectrical Box Cover Q160 Model Paddle Wheel - Cabinet Assembly 5008115
SI.# 10
NameElectrical Box Cover 5008116
SI.# 11
NamePower Cord 5008642
SI.# 12
NameAdapter 3/8 Npt X 3/8 ODF 8706083
SI.# 13
NameBaffle S310 Model Paddle Wheel - Cabinet Assembly K00346
SI.# 14
NameMotor Pin Retaining Bracket 5010220
SI.# 15
NameLeg, 6" Adjustable 5005533
SI.# 16
NameCartoning - 30" 5007538
| SKU | S310 CABINET ASSEMBLY |
|---|
