S3300 Evaporator Components

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock

Model

S3300 Evaporator Components

LookBook product items

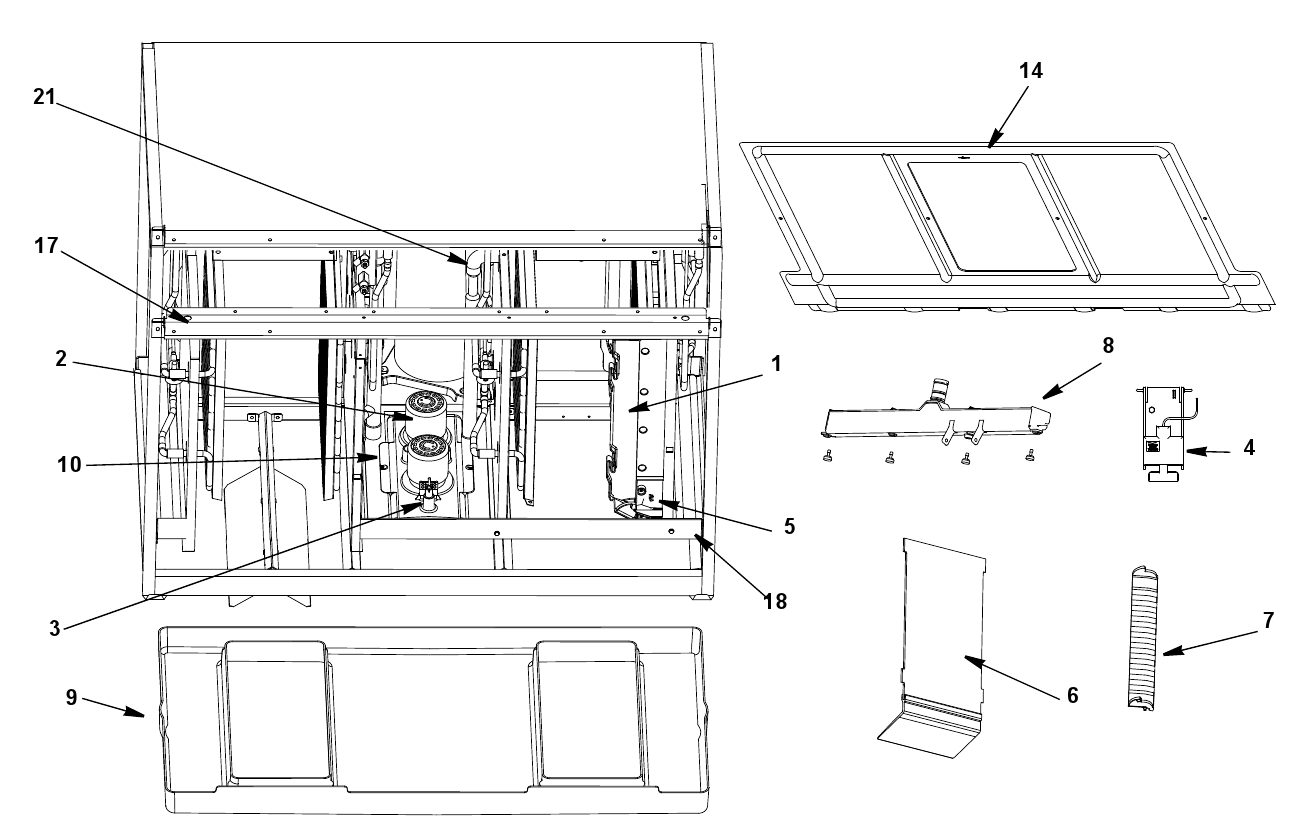

SI.#	Name	Part#
	Ice Damper Assembly	000002056
1a	Evaporator - Dice Cube	2783
1b	Evaporator - Half Dice Cube	2784
2	Water Pump - 230V/50-60 Hz	13434
3	Water Level Probe	2006549
3c	Wire - Control Box to Probe	2007989
3d	Screw - #10-24 x 0.25" PHIL	5202329
4	Ice Thicknes Control Probe	2008029
4a	Clip Q0200 - Evaporator Compartment - Common Components	5650909
5	Magnetic Bin Switch	1756
5a	Bin Switch Covers	1421
6	Splash Shield Assembly	15002
7	Ice Damper Assembly	2056
8	Water Distribution Tube - 30"	7602193
8a	O-Rings - 0.675"	5004649
8b	Fitting	4014693
8c	Barbed Fitting	1986
8d	Snap Clamp - 1.0" ID	5650609
8e	Fitting Bracket	13064
9	Water Trough - Quad	2956
9a	Trough Support Bracket	3105
10	Water Pump and Water Level Probe Mount	2955
10a	Thumbscrew SS - #8-32 x 0.44"	5305123
11	Thumbscrew SS - #8-32 x 0.375"	5004799
11a	O-Ring - 0.125" ID	5004629
12	Screw - #12-16 x 0.687"	5004619
13	Evaporator Top Covers	3107
14	Evaporator Front Cover	2993
14a	Wing-head Mounting Stud	5000453
15	Evaporator Top Filler Covers	2176
16	Evaporator Bottom Frame Assembly	2787
16a	Hex Nut - #8-32 Brass	5429139
16b	Evaporator Bottom Frame Covers	1416
17	Front Top Support	3026
18	Front Bottom Support	3025
19	Screw - #12-16 x 0.75"	5012319
20a	Water Level Probe Holder	2006559
20b	Water Level Probe Bracket	3355
20c	Screw - #10-24 x 0.5" HEX	5202069
21a	Water Pump to Distribution Tube - LH	3112
21b	Water Pump to Distribution Tube - RH	3111
21c	Cross Over Tube	3113
21d	Snap Clamp - 1.123 x 1.296	5650539
