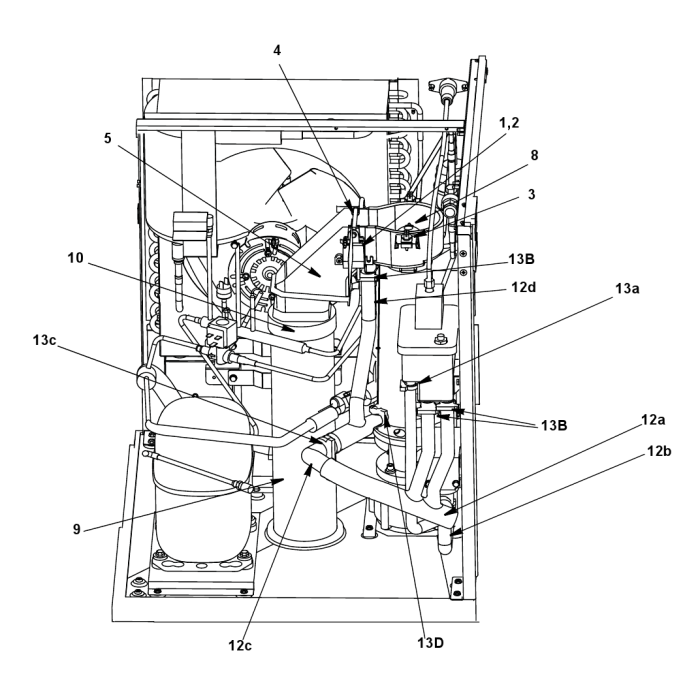

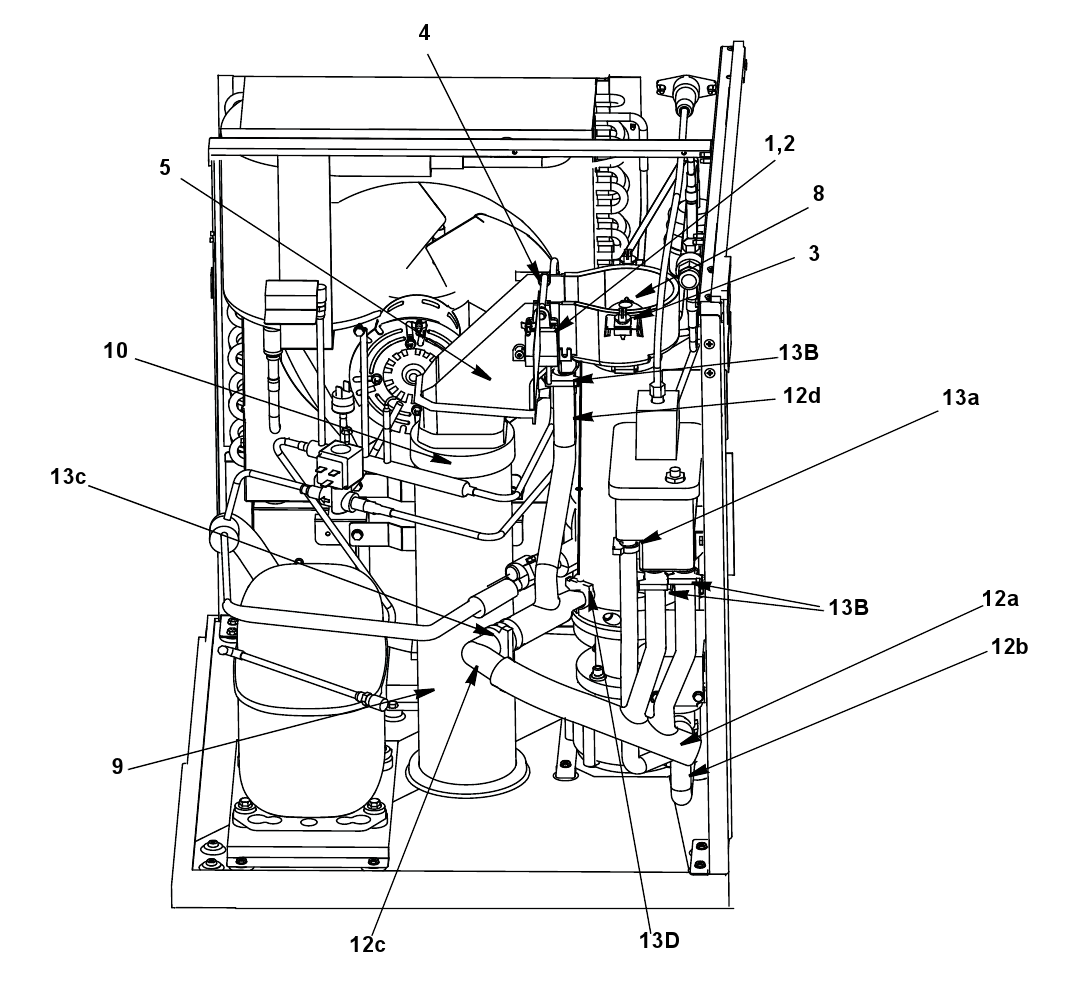

SF0600/SN0650 Refrigeration Compartment View 2
SF0600/SN0650 Refrigeration Compartment View 2
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
SF0600/SN0650 Refrigeration Compartment View 2
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 2009793 |
| 2 | | 2009803 |
| 2a | | 5121629 |
| 3 | | 5650853 |
| 3a | | 5000453 |
| 4a | | 4014443 |
| 4b | | 710 |
| 5 | | 4013363 |
| 6 | | 4014883 |
| 7 | | 4013463 |
| 8a | | 000002062 |
| 8b | | 3109 |
| 9 | | 4015673 |
| 10 | | 4015663 |
| 11a | | 000000464 |
| 12a | | 3 |
| 12b | | 7 |
| 12c | | 9 |
| 12d | | 5 |
| 13a | | 5650539 |
| 13b |  | 5650709 |
| 13c | Snap Clamp - 3/4" ID | 5650993 |
| 13d | | 5650649 |
SI.# 1
NameHall Effect Switch with Wiring 2009793
SI.# 2
NameHall Effect Switch Housing 2009803
SI.# 2a
NameScrew 5121629
SI.# 3
NameReceptacle 5650853
SI.# 3a
NameWing-head Mounting Stud 5000453
SI.# 4a
NameDamper Door Nugget 4014443
SI.# 4b
NameDamper Door Flake 710
SI.# 5
NameIce Chute 4013363
SI.# 6
NameStrainer Ramp 4014883
SI.# 7
NameChute Cover - sits on receptacle 4013463
SI.# 8a
NameIce Wiper - Nugget 000002062
SI.# 8b
NameIce Wiper - Flake 3109
SI.# 9
NameIce Tube Base 4015673
SI.# 10
NameIce Chute/Ice Tube Union 4015663
SI.# 11a
NameClamp Assembly - SS 000000464
SI.# 12a
NameFloat Chamber Tube 3
SI.# 12b
NameDrain 7
SI.# 12c
NameElbow 9
SI.# 12d
NameIce Chute Drain Tube 5
SI.# 13a
NameSnap Clamp - 1.123 x 1.296 5650539
SI.# 13b
NameSnap Clamp - 0.799"/0.899" ID 5650709
SI.# 13c
NameSnap Clamp - 3/4" ID 5650993
SI.# 13d
NameSpray Bar Clamp 5650649
| SKU | SF0600/SN0650 Refrigeration Compartment View 2 |
|---|
