SF0900/SN0950 Control Box
SF0900/SN0950 Control Box
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
SF0900/SN0950 Control Box

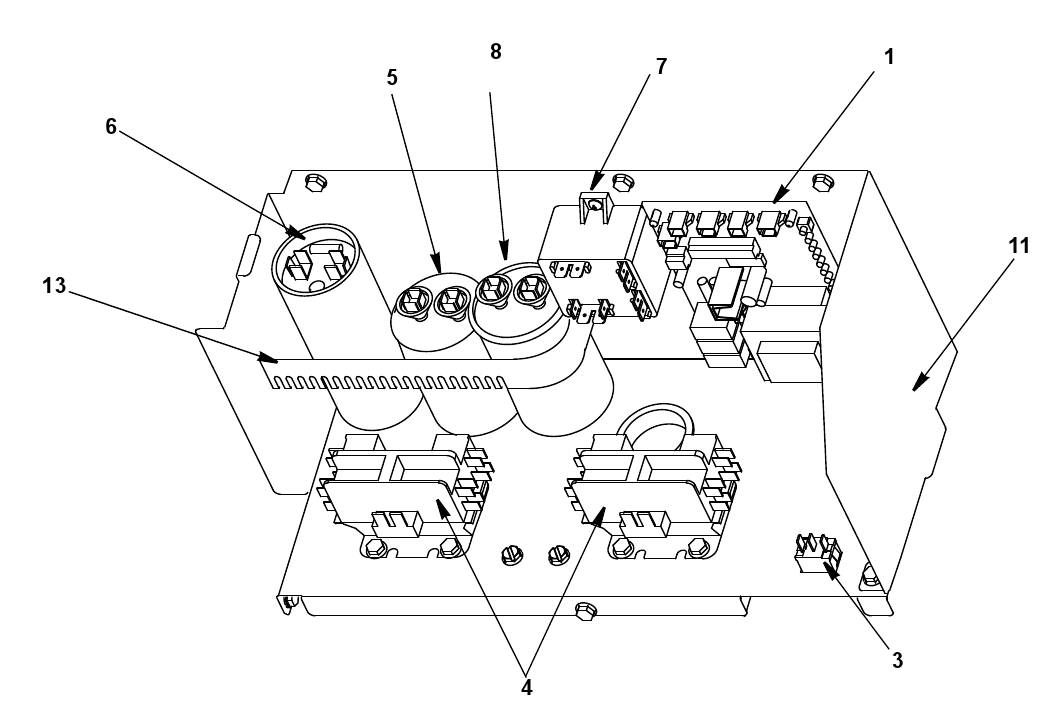

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000001238 |
| 1a |  | 4302253 |
| 2 |  | 2511493 |
| 3 |  | 2007939 |
| 3a | | 2009973 |
| 4a |  | 2006589 |
| 4b |  | 2006599 |
| 5 |  | 8503933 |
| 6 | | 8505723 |
| 7 |  | 2007559 |
| 8 | | 29 |
| 9a | | 1434 |
| 9b | | 1432 |
| 9c | | 1435 |
| 10 | | 2009953 |
| 11 | | 2866 |
| 12 | | 934 |
| 12a |  Screw - #10-24 x 0.5" HEX | 5202069 |
| 13 | | 971 |
| 14 | | 6024951 |
| 15 | | 5004129 |
| 16 |  | 5202169 |
| 17 |  | 2501409 |
| 18 |  | 2500139 |
SI.# 1
NameControl Board 000001238
SI.# 1a
NameControl Board Mounting Supports 4302253
SI.# 2
NameFuse - 10A 2511493
SI.# 3
NameToggle Switch 2007939
SI.# 3a
NameCompressor to Control Board Wiring Harness 2009973
SI.# 4a
NameContactor - 115V/60 Hz/1 Ph 2006589
SI.# 4b
NameContactor - 230V/50-60 Hz/1 Ph 2006599
SI.# 5
NameRun Capacitor - 115-230V/50-60 Hz/1 Ph 8503933
SI.# 6
NameStart Capacitor (Compressor) 230V/50-60 Hz/1 Ph 8505723
SI.# 7
NameStart Potential Relay - 50-60 Hz/1 Ph 2007559
SI.# 8
NameGearmotor Run Capacitor 230V/50-60 Hz/1 Ph 29
SI.# 9a
NameWiring Harness 115V 1434
SI.# 9b
NameWiring Harness 230V/60 Hz 1432
SI.# 9c
NameWiring Harness 230V/50 Hz 1435
SI.# 10
NameStart Capacitor Wiring Harness 2009953
SI.# 11
NameControl Box 2866
SI.# 12
NameControl Box Cover 934
SI.# 12a
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 13
NameCapacitor Mounting Strap 971
SI.# 14
NameCapacitor Bracket 6024951
SI.# 15
NameScrew - $6 x 0.5" 5004129
SI.# 16
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 17
NameBushing - 0.875" 2501409
SI.# 18
NameBushing - 1.5" 2500139
| SKU | SF0900/SN0950 Control Box |
|---|
