SF3000C Control Box Components
SF3000C Control Box Components
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
SF3000C Control Box Components

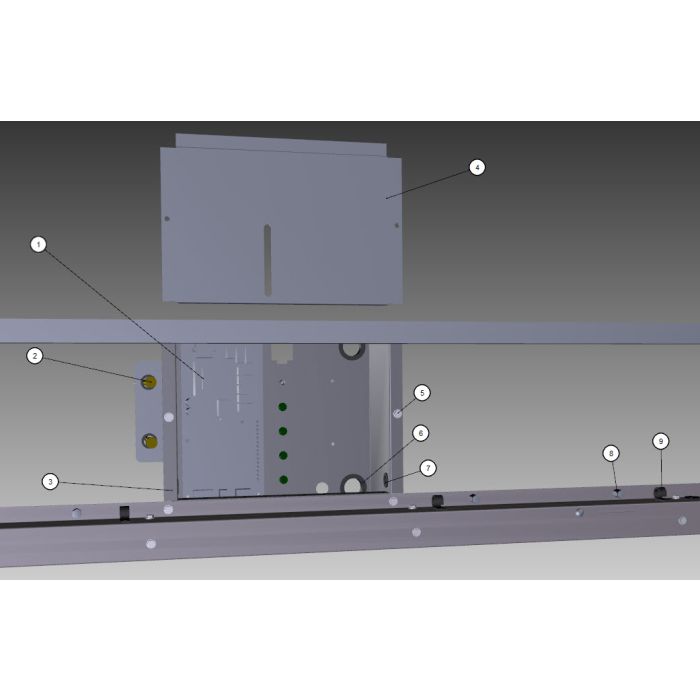

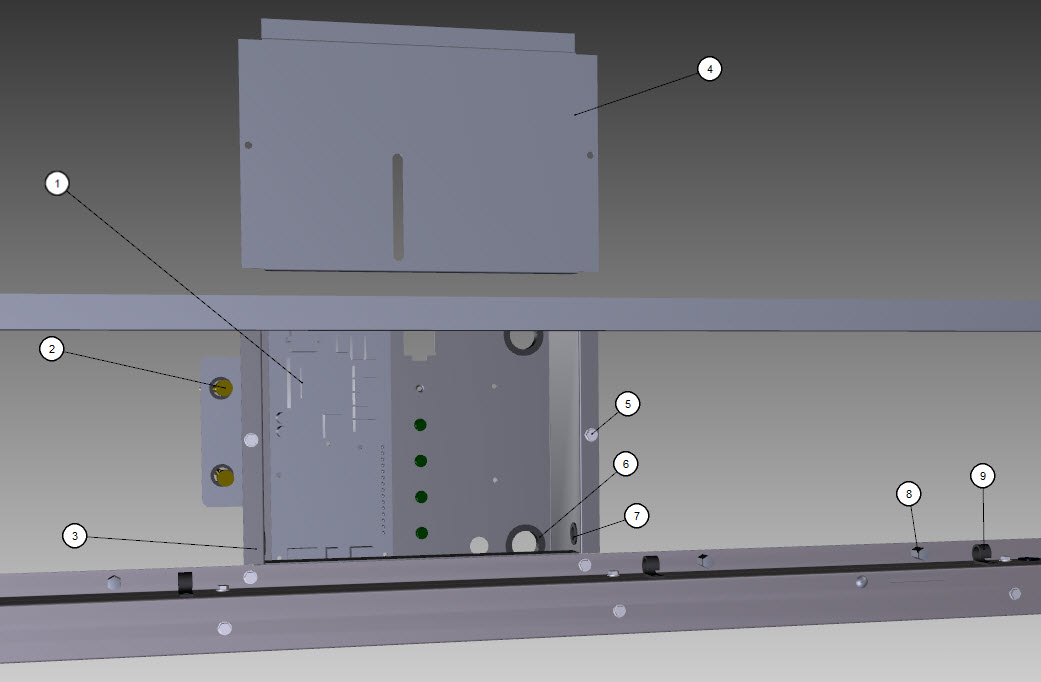

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000016700 |
| 1a | | 8240 |
| 1b |  | 4302253 |
| 2 |  | 8373253 |
| 2a |  | 7626843 |
| 2b | | 8312 |
| 3 | | 3088 |
| 3a | | 6067249 |
| 4 | | 3089 |
| 5 |  Screw - #10-24 x 0.5" HEX | 5202069 |
| 6 | | 2502199 |
| 7 |  | 2502189 |
| 8 |  | 5305123 |
| 9 | | 5650809 |
| 9f | | 1369 |
| 10 |  | 2007939 |
| 10a | | 2858 |
| 10b | | 4011639 |
| 11 |  | 5202169 |
| 11a |  | 5573209 |
| 12a | | 2860 |
| 12b | | 3171 |
| 12c | | 2859 |
| 12d | | 3960 |
| 12e | | 3260 |
SI.# 1
NameControl Board 000016700
SI.# 1a
NameFuse - 8A 8240
SI.# 1b
NameControl Board Mounting Supports 4302253
SI.# 2
NameAccess Valve 8373253
SI.# 2a
NameValve Cores, Schrader style 7626843
SI.# 2b
NameMounting Bracket - Valve 8312
SI.# 3
NameControl Box 3088
SI.# 3a
NameControl Box Bracket 6067249
SI.# 4
NameControl Box Cover 3089
SI.# 5
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 6
NameBushing 2502199
SI.# 7
NameBushing - 0.625" 2502189
SI.# 8
NameThumbscrew SS - #8-32 x 0.44" 5305123
SI.# 9
NameNylon Wire Harness Clip 5650809
SI.# 9f
NameWiring Harness - Compressor - 208-230V/60 Hz/3 Ph & 415V/50 Hz/3 Ph 1369
SI.# 10
NameToggle Switch 2007939
SI.# 10a
NameWiring Harness - Toggle Switch 2858
SI.# 10b
NameToggle Switch Box 4011639
SI.# 11
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 11a
NameStar Washer 5573209
SI.# 12a
NameWiring Harness - Control Box 2860
SI.# 12b
NameWiring Harness - Incoming Power Supply 3171
SI.# 12c
NameWiring Harness - Curtain Switch 2859
SI.# 12d
NameWiring Harness - Bulkhead CVD 3960
SI.# 12e
NameWiring Harness - Low Pressure Protection 3260
| SKU | SF3000C Control Box Components |
|---|
