ST3000 Control Box Components
ST3000 Control Box Components
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model

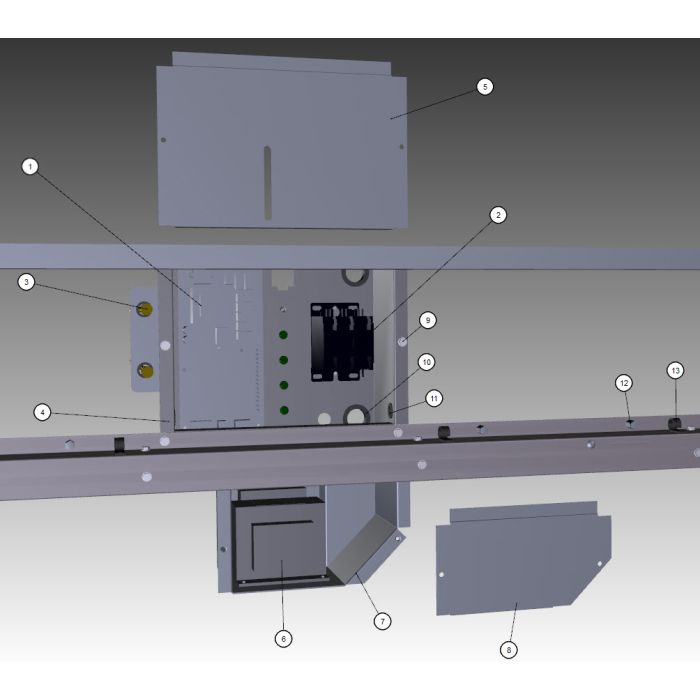

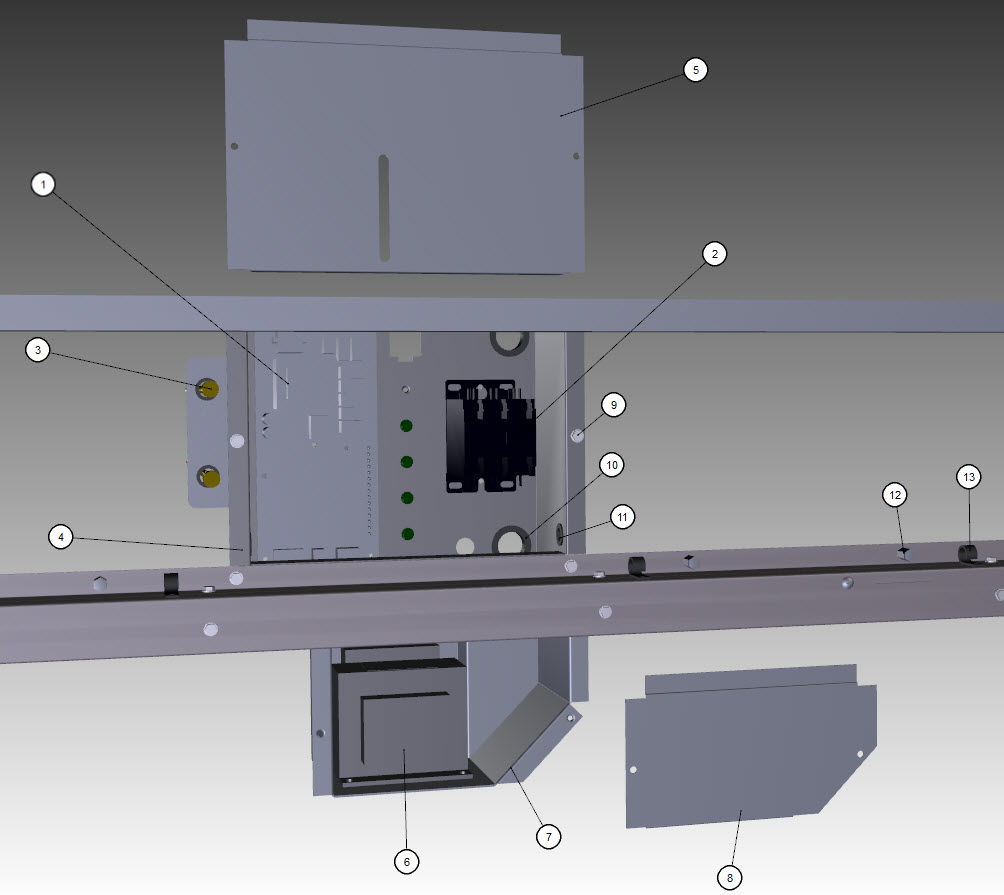

ST3000 Control Box Components
| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 000016700 |
| 1a | | 8240 |
| 1b |  | 4302253 |
| 2 |  | 2006619 |
| 3 |  | 8373263 |
| 3a |  | 7626843 |
| 3b | | 8312 |
| 4 | | 3088 |
| 5 | | 3089 |
| 5a | | 6067249 |
| 6 | | 5204 |
| 7 | | 5283 |
| 8 | | 5282 |
| 9 |  Screw - #10-24 x 0.5" HEX | 5202069 |
| 10 | | 2502199 |
| 11 |  | 2502189 |
| 12 |  | 5305123 |
| 13 | | 5650809 |
| 14 |  | 2007939 |
| 14a | | 2858 |
| 14b | | 4011639 |
| 15 |  | 5202169 |
| 15a |  | 5573209 |
| 16a | | 2860 |
| 16b | | 2859 |
| 16c | | 3253 |
| 16d | | 3260 |
| 16e | | 3170 |
SI.# 1
NameControl Board 000016700
SI.# 1a
NameFuse - 8A 8240
SI.# 1b
NameControl Board Mounting Supports 4302253
SI.# 2
NameContactor - 230V/60 Hz/3 Ph 2006619
SI.# 3
NameVALVE, ACCESS with Schrader 8373263
SI.# 3a
NameValve Cores, Schrader style 7626843
SI.# 3b
NameMounting Bracket - Valve 8312
SI.# 4
NameControl Box 3088
SI.# 5
NameControl Box Cover 3089
SI.# 5a
NameControl Box Bracket 6067249
SI.# 6
NameTransformer 5204
SI.# 7
NameTransformer Box 5283
SI.# 8
NameCover - Transformer Box 5282
SI.# 9
NameScrew - #10-24 x 0.5" HEX 5202069
SI.# 10
NameBushing 2502199
SI.# 11
NameBushing - 0.625" 2502189
SI.# 12
NameThumbscrew SS - #8-32 x 0.44" 5305123
SI.# 13
NameNylon Wire Harness Clip 5650809
SI.# 14
NameToggle Switch 2007939
SI.# 14a
NameWiring Harness - Toggle Switch 2858
SI.# 14b
NameToggle Switch Box 4011639
SI.# 15
NameScrew - #10-24 x 0.5" Ground 5202169
SI.# 15a
NameStar Washer 5573209
SI.# 16a
NameWiring Harness - Control Box 2860
SI.# 16b
NameWiring Harness - Curtain Switch 2859
SI.# 16c
NameWiring Harness - Bulkhead Water 3253
SI.# 16d
NameWiring Harness - Low Pressure Protection 3260
SI.# 16e
NameWiring Harness - Water-cooled 3170
| SKU | ST3000 Control Box Components |
|---|
