ST3000 Evaporator Components
ST3000 Evaporator Components
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model

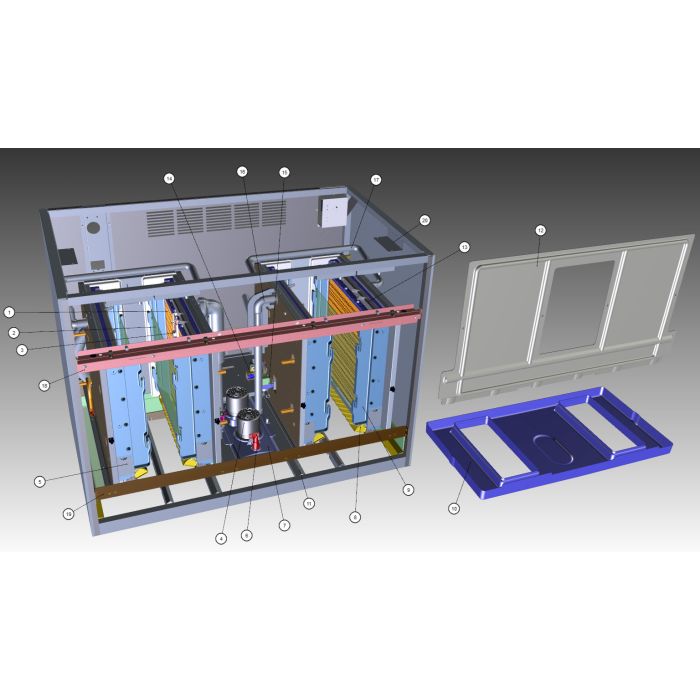

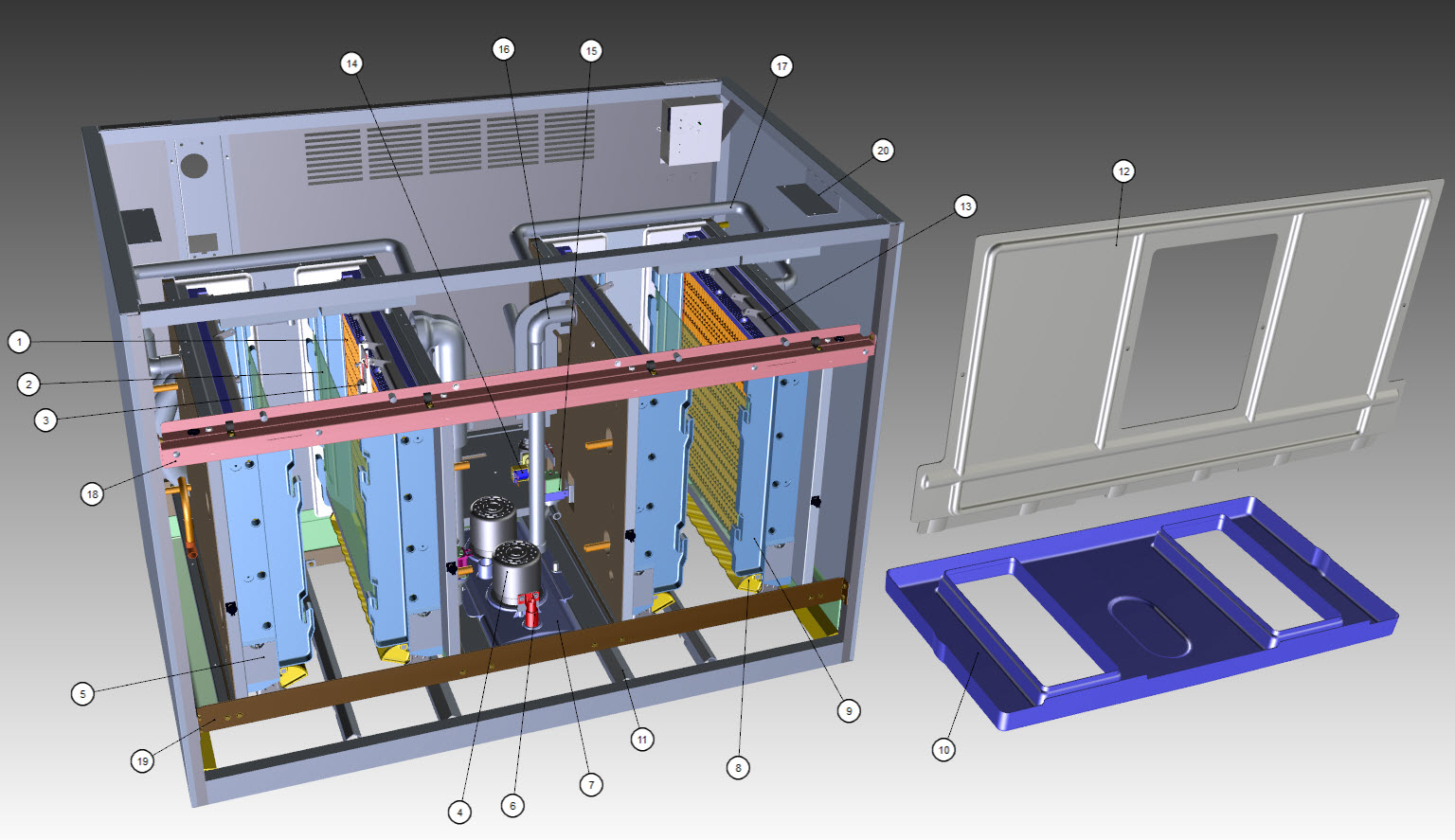

ST3000 Evaporator Components
SI.#
NameIce Damper Assembly 000002056
SI.# 1a
NameEvaporator - Dice Cube 2783
SI.# 1b
NameEvaporator - Half Dice Cube 2784
SI.# 2
NameSplash Shield Assembly 15002
SI.# 3
NameIce Thicknes Control Probe 2008029
SI.# 3a
NameClip Q0200 - Evaporator Compartment - Common Components 5650909
SI.# 4
NameWater Pump - 230V/50-60 Hz 13434
SI.# 5
NameMagnetic Bin Switch 000001756
SI.# 5a
NameBin Switch Covers 000001421
SI.# 6
NameWater Level Probe 2006549
SI.# 6a
NameWater Level Probe Holder 2006559
SI.# 6b
NameWater Level Probe Bracket 3355
SI.# 6c
NameWire - Control Box to Probe 2007989
SI.# 6d
NameScrew - #10-24 x 0.25" PHIL 5202329
SI.# 7
NameWater Pump and Water Level Probe Mount 2955
SI.# 7a
NameThumbscrew SS - #8-32 x 0.44" 5305123
SI.# 8
NameIce Damper Assembly 2056
SI.# 9
NameEvaporator Frame - Right Side 1417
SI.# 9a
NameEvaporator Frame - Left Side 1418
SI.# 10
NameWater Trough - Quad 2956
SI.# 11
NameTrough Support Bracket 3105
SI.# 12
NameEvaporator Front Cover 2993
SI.# 12a
NameWing-head Mounting Stud 5000453
SI.# 13
NameWater Distribution Tube - 30" 7602193
SI.# 13a
NameO-Rings - 0.675" 5004649
SI.# 13b
NameFitting, through bulkhead 4014693
SI.# 13c
NameBarbed Fitting 000001986
SI.# 13d
NameSnap Clamp - 1.0" ID 5650609
SI.# 13e
NameFitting Bracket 000013064
SI.# 14
NameWater Inlet Valve - 208-230V/50-60 Hz 9124
SI.# 15a
NameMounting Bracket - Water Dump Valve 3257
SI.# 15b
NameTubing - Water Dump Valve 3110
SI.# 16a
NameWater Pump to Distribution Tube - LH 3112
SI.# 16b
NameWater Pump to Distribution Tube - RH 3111
SI.# 16c
NameSnap Clamp - 1.123 x 1.296 5650539
SI.# 17
NameCross Over Tube 3113
SI.# 18
NameFront Top Support 3026
SI.# 18a
NameScrew - #12-16 x 0.687" 5004619
SI.# 19
NameFront Bottom Support 3025
SI.# 19a
NameScrew - #12-16 x 0.75" 5012319
SI.# 20
NameSupport Bracket - Copper Tubing 3352
SI.# 21
NameEvaporator Top Covers 3107
SI.# 21a
NameThumbscrew SS - #8-32 x 0.375" 5004799
SI.# 21b
NameO-Ring - 0.125" ID 5004629
SI.# 22
NameEvaporator Top Filler Covers 000002176
SI.# 23
NameEvaporator Bottom Frame Assembly 000002787
SI.# 23a
NameHex Nut - #8-32 Brass 5429139
SI.# 23b
NameEvaporator Bottom Frame Covers 000001416
| SKU | ST3000 Evaporator Components |
|---|
