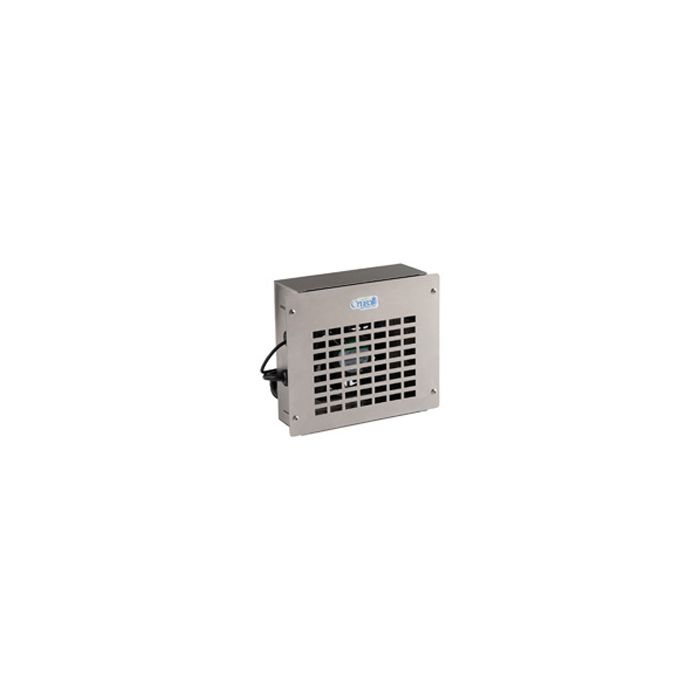

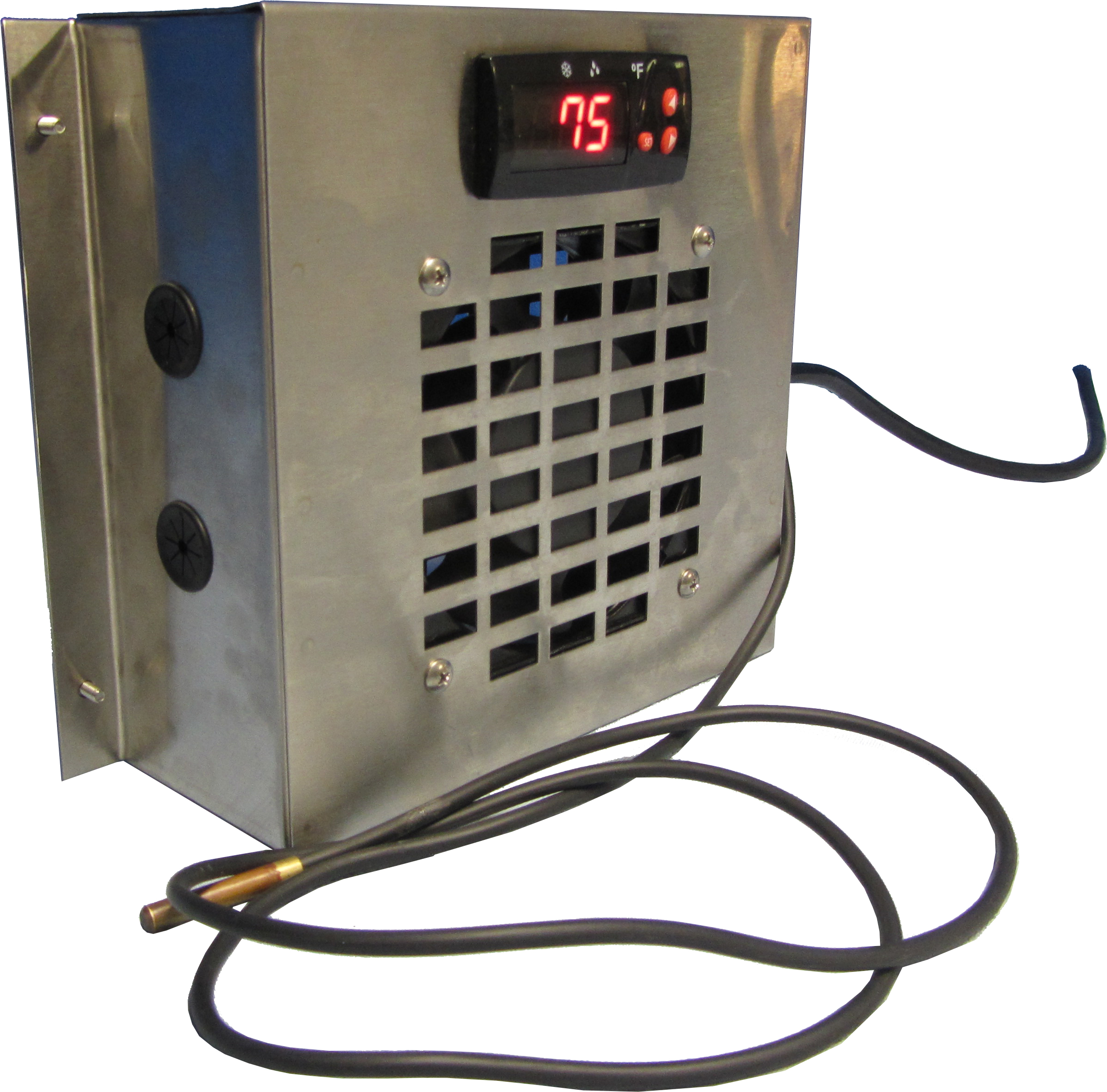

CR-TFB1 Thermostatic Fan Box

•    Assists in Removing trapped heat in a cabinet produced by UCM chiller
•    Temperature controlled fan, automatically turns itself on or off depending on cabinet temperature.
•    Can be used with or without exterior side face plate
•    Made in the USA

Specifications:

•    Digital Thermostat
•    Factory Set @ 90°F to turn on/off
•    117 CFM Fan
•    120 Volt. 7’ Electrical cord and plug
•    Max Amps: 0.5”
•    4’ temp probe cord

•    Overall dimensions: 9.5”W x 7.875”H x 3”D
•    Exterior side face plate: 9.5”W x  7.875”H
•    Requires a 7.5”W x 5.5”H cut out in cabinet panel
•    Recommended anytime a remote chiller is installed in a cabinet
•    Front panel is removable so the fan box can be mounted to the back side of a cabinet and the cabinet vents are the facing.
