USE050 Control Box
USE050 Control Box
Have a Question?
Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST
In stock
Model
USE050 Control Box

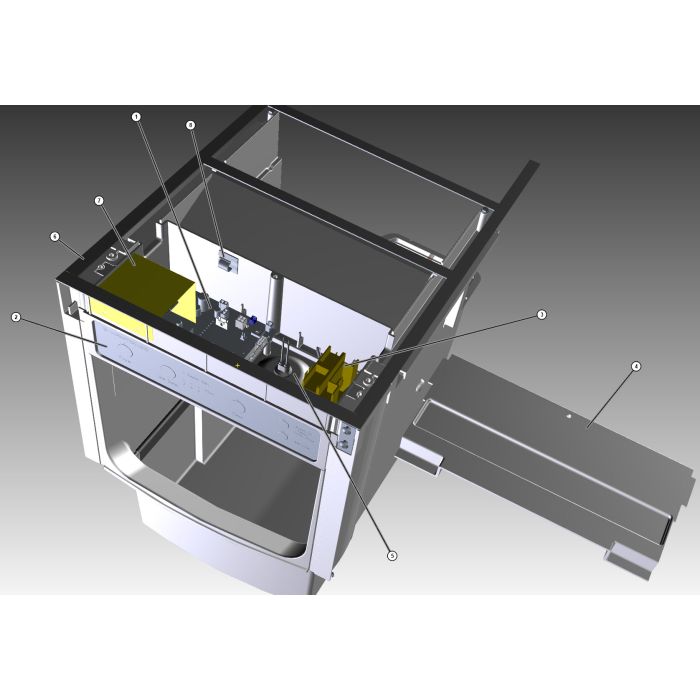

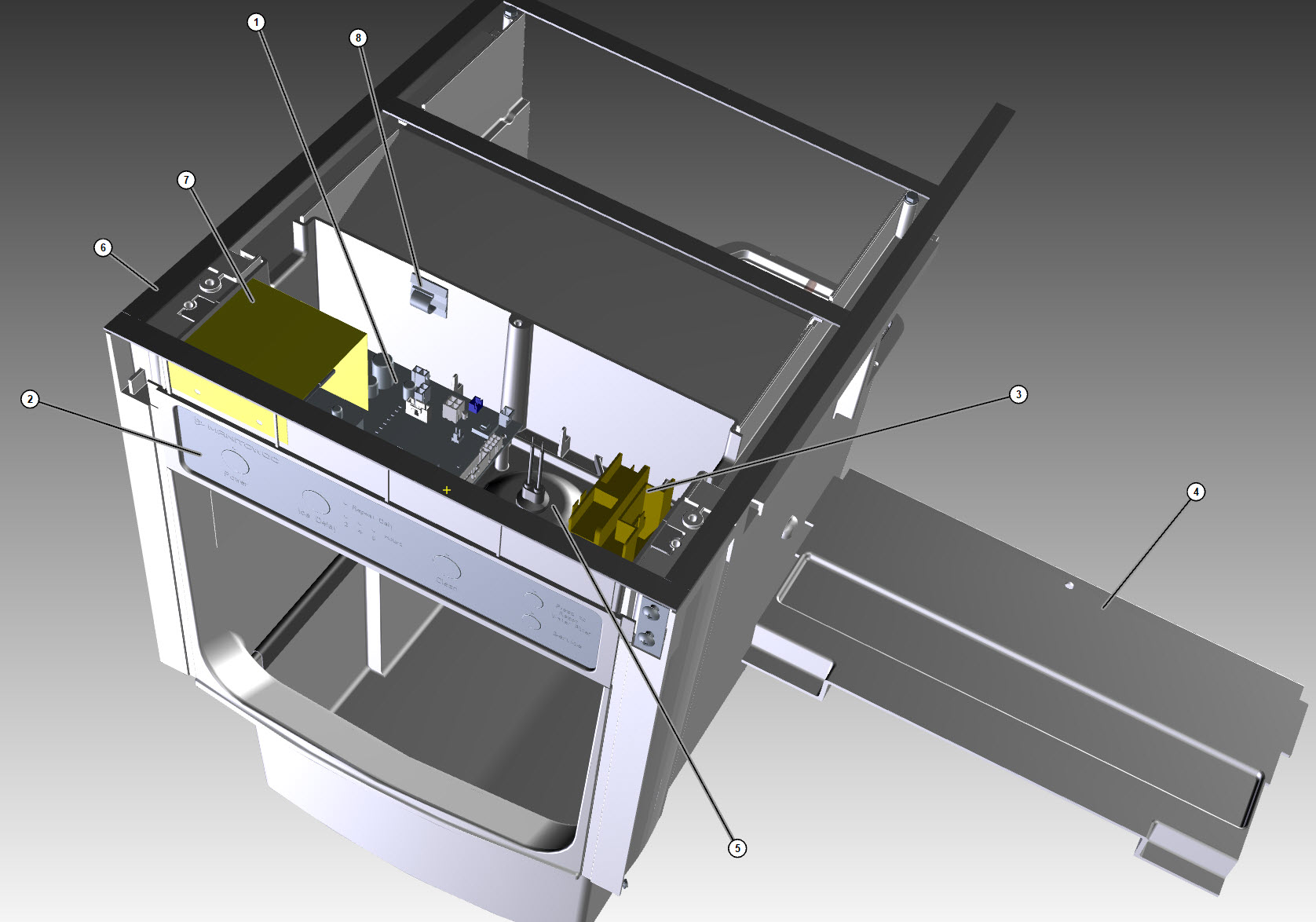

| SI.# | Name | Part# |
|---|---|---|
| 1 |  | 40007515 |
| 2 | | 16923 |
| 3 |  | 2006569 |
| 4 | | 663 |
| 4a | | 5004859 |
| 5 | | 664 |
| 5a | | 667 |
| 5b | | 666 |
| 5c | | 40007657 |
| 6 | | 9202903 |
| 7 | | 2250 |
| 8 | | 5650503 |
| 9a | | 668 |
| 9b | | 40007684 |
| 9c | | 40007653 |
| 9d | | 40007648 |
| 10 | | 5121679 |
| 11 | | 40007647 |
| 12 | | 16663 |
| 13 | | 16607 |
SI.# 1
Name Control Board 40007515
SI.# 2
Name User Interface with Control Box 16923
SI.# 3
Name Contactor - 115V/60 Hz/1 Ph UF0140 - Control Box Components 2006569
SI.# 4
Name Control Box Cover UP050 - Control Box 663
SI.# 4a
Name Screw Php 7 x 7 mm 5004859
SI.# 5
Name Lamp Holder 664
SI.# 5a
Name Bin Light Clear Cover 667
SI.# 5b
Name Light Bulb 666
SI.# 5c
Name Bulb Socket with Harness 40007657
SI.# 6
Name Foam Tape - 1.5mm x 16mm x 30.5mm 9202903
SI.# 7
Name Mylar Shield - Water Inlet Valve 2250
SI.# 8
Name Wire Clip 5650503
SI.# 9a
Name High Voltage 668
SI.# 9b
Name Low Voltage 40007684
SI.# 9c
Name Proximity Switch Harness 40007653
SI.# 9d
Name Wiring Harness 40007648
SI.# 10
Name Screw, #6-32 x 3/8 5121679
SI.# 11
Name Wiring Harness - Membrane to Board 40007647
SI.# 12
Name Wiring Harness - 115V/60 Hz/1 Ph 16663
SI.# 13
Name Grommet - Control Box 16607
| SKU | USE050 Control Box |
|---|
