I0686C Evaporator Compartment

main product photo

Have a Question?

Talk to our product experts at

(510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

I0686C Evaporator Compartment

Have a Question?

Talk to our product experts at (510) 732-0100 – Mon-Fri 7:30am-4:30pm PST

In stock
Model
I0686C Evaporator Compartment
Add to Wish List
LookBook product items

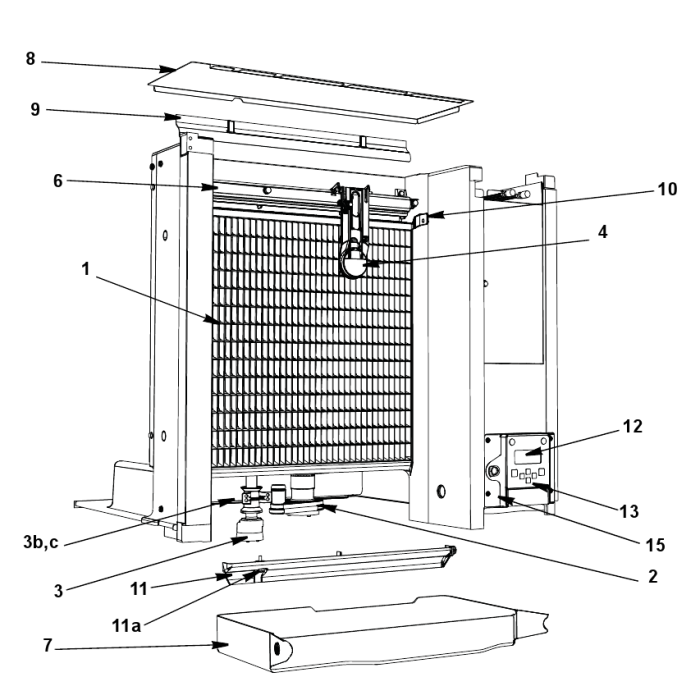

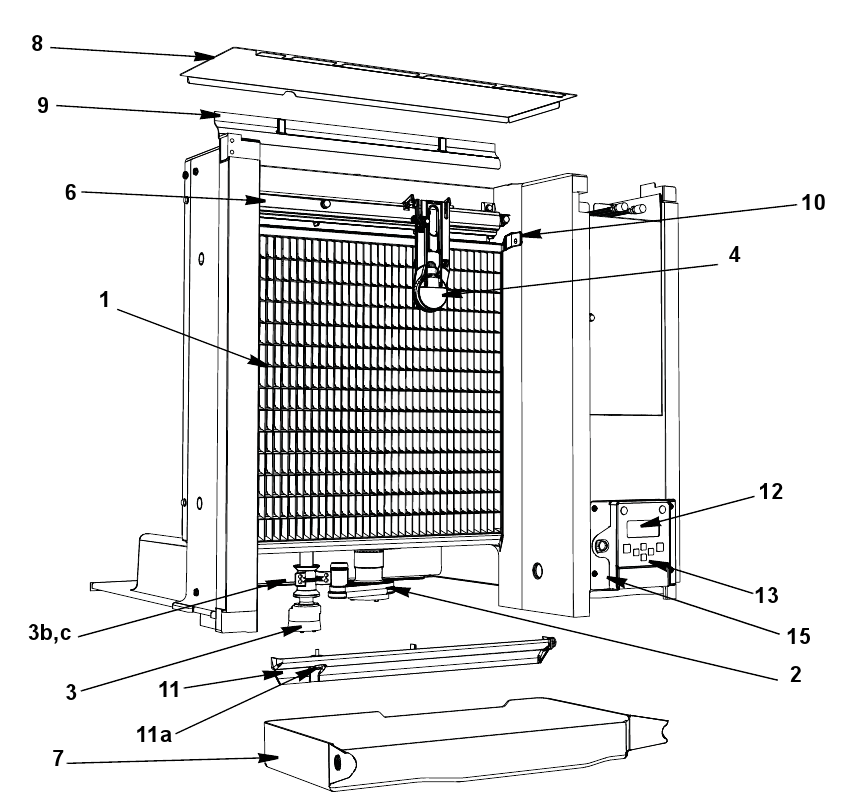

SI.# Name Part#
Touch Pad with Housing Touch Pad with Housing 000007926
1a Evaporator - Dice Cube Evaporator - Dice Cube 7602839
1b Evaporator - Half Dice Cube Evaporator - Half Dice Cube 7602849
2a Water Pump - 115V/60 Hz Water Pump - 115V/60 Hz 8251129
2b Water Pump - 230V/50-60 Hz Water Pump - 230V/50-60 Hz 8252109
3 Water Level Probe, Includes Probe and wire Water Level Probe, Includes Probe and wire 000016053
3a Wire - Control Box to Water Level Probe Wire - Control Box to Water Level Probe 000007099
3b Water Level Probe - Holder Water Level Probe - Holder 000007053
4 Ice Thickness Control Probe Ice Thickness Control Probe 8660
5 Water Curtain Water Curtain 4010979
6 Water Distribution Tube - 30" Water Distribution Tube - 30" 7602193
6aO-Rings - 0.675" O-Rings - 0.675" 5004649
7aWater Trough 30" Models Before serial # 1101223883 Water Trough 30" Models Before serial # 1101223883 4003609
7bWater Trough - 30" Water Trough - 30" 10337
9Evaporator Top Filler Panel Evaporator Top Filler Panel 4008469
9aBracket - Top Filler Panel Bracket - Top Filler Panel 6063339
9bScrew - #10-24 x 0.5" PHIL Screw - #10-24 x 0.5" PHIL 5202099
10Evaporator Top Frame Assembly - 30" Evaporator Top Frame Assembly - 30" 7602203
10aEvaporator Bottom Frame Assembly Evaporator Bottom Frame Assembly 4009613
10bHex Nut - #8-32 Brass Hex Nut - #8-32 Brass 5429139
11Water Diverter - 30" Models Water Diverter - 30" Models 7602213
11aThumbscrew SS - #8-32 x 0.44" Thumbscrew SS - #8-32 x 0.44" 5305123
12LCD Display LCD Display 000007827
13Touch Pad with Housing Touch Pad with Housing 7926
14LCD Wiring Harness - 30" Long LCD Wiring Harness - 30" Long 000007737
15Mounting Bracket, touch screen Mounting Bracket, touch screen 000006697
16aLCD Frame with Key Guard LCD Frame with Key Guard 000006647
16bLCD Frame without Key Guard LCD Frame without Key Guard 000006564
16cDisplay Cover Display Cover K00433
17Ice Deflector Ice Deflector 000006700
18Thumbscrew SS - #8-32 x 0.375" Thumbscrew SS - #8-32 x 0.375" 5004799
18aO-Ring - 0.125" ID O-Ring - 0.125" ID 5004629
19Screw - #12-16 x 0.687" Screw - #12-16 x 0.687" 5004619
20Water Pump Base O-Ring - 4.00" ID Water Pump Base O-Ring - 4.00" ID 5004659
21Water Pump Outlet O-Ring - 0.875" ID Water Pump Outlet O-Ring - 0.875" ID 5004679
SI.#
Touch Pad with Housing
NameTouch Pad with Housing 000007926
SI.# 1a
Evaporator - Dice Cube
NameEvaporator - Dice Cube 7602839
SI.# 1b
Evaporator - Half Dice Cube
NameEvaporator - Half Dice Cube 7602849
SI.# 2a
Water Pump - 115V/60 Hz
NameWater Pump - 115V/60 Hz 8251129
SI.# 2b
Water Pump - 230V/50-60 Hz
NameWater Pump - 230V/50-60 Hz 8252109
SI.# 3
Water Level Probe, Includes Probe and wire
NameWater Level Probe, Includes Probe and wire 000016053
SI.# 3a
Wire - Control Box to Water Level Probe
NameWire - Control Box to Water Level Probe 000007099
SI.# 3b
Water Level Probe - Holder
NameWater Level Probe - Holder 000007053
SI.# 4
Ice Thickness Control Probe
NameIce Thickness Control Probe 8660
SI.# 5
Water Curtain
NameWater Curtain 4010979
SI.# 6
Water Distribution Tube - 30"
NameWater Distribution Tube - 30" 7602193
SI.# 6a
O-Rings - 0.675"
NameO-Rings - 0.675" 5004649
SI.# 7a
Water Trough 30" Models Before serial # 1101223883
NameWater Trough 30" Models Before serial # 1101223883 4003609
SI.# 7b
Water Trough - 30"
NameWater Trough - 30" 10337
SI.# 9
Evaporator Top Filler Panel
NameEvaporator Top Filler Panel 4008469
SI.# 9a
Bracket - Top Filler Panel
NameBracket - Top Filler Panel 6063339
SI.# 9b
Screw - #10-24 x 0.5" PHIL
NameScrew - #10-24 x 0.5" PHIL 5202099
SI.# 10
Evaporator Top Frame Assembly - 30"
NameEvaporator Top Frame Assembly - 30" 7602203
SI.# 10a
Evaporator Bottom Frame Assembly
NameEvaporator Bottom Frame Assembly 4009613
SI.# 10b
Hex Nut - #8-32 Brass
NameHex Nut - #8-32 Brass 5429139
SI.# 11
Water Diverter - 30" Models
NameWater Diverter - 30" Models 7602213
SI.# 11a
Thumbscrew SS - #8-32 x 0.44"
NameThumbscrew SS - #8-32 x 0.44" 5305123
SI.# 12
LCD Display
NameLCD Display 000007827
SI.# 13
Touch Pad with Housing
NameTouch Pad with Housing 7926
SI.# 14
LCD Wiring Harness - 30" Long
NameLCD Wiring Harness - 30" Long 000007737
SI.# 15
Mounting Bracket, touch screen
NameMounting Bracket, touch screen 000006697
SI.# 16a
LCD Frame with Key Guard
NameLCD Frame with Key Guard 000006647
SI.# 16b
LCD Frame without Key Guard
NameLCD Frame without Key Guard 000006564
SI.# 16c
Display Cover
NameDisplay Cover K00433
SI.# 17
Ice Deflector
NameIce Deflector 000006700
SI.# 18
Thumbscrew SS - #8-32 x 0.375"
NameThumbscrew SS - #8-32 x 0.375" 5004799
SI.# 18a
O-Ring - 0.125" ID
NameO-Ring - 0.125" ID 5004629
SI.# 19
Screw - #12-16 x 0.687"
NameScrew - #12-16 x 0.687" 5004619
SI.# 20
Water Pump Base O-Ring - 4.00" ID
NameWater Pump Base O-Ring - 4.00" ID 5004659
SI.# 21
Water Pump Outlet O-Ring - 0.875" ID
NameWater Pump Outlet O-Ring - 0.875" ID 5004679
More Information
SKUI0686C Evaporator Compartment
